Installation [12/2013 - 11/2016]: Procedure

  1. INSTALL SEAT INNER BELT SUB-ASSEMBLY

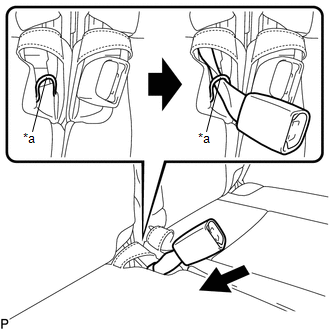

    1. Pass the seat inner belt sub-assembly through the rubber band of the rear seat cushion assembly as shown in the illustration.
      GTY441470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rubber Band

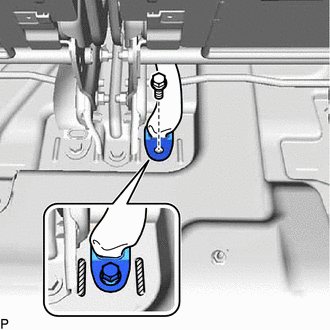

    2. Install the floor anchor of the seat inner belt sub-assembly with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE:

      Do not allow the anchor part of the seat inner belt sub-assembly to overlap the protruding parts of the floor panel.

      GTY432026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protruding Part
  2. INSTALL REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 68 , or refer to PROCEDURE - Step 69

  3. INSTALL DECK SIDE TRIM BOX LH

    Refer to PROCEDURE - Step 69 , or refer to PROCEDURE - Step 70

  4. INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 70 , or refer to PROCEDURE - Step 71

  5. INSTALL DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 71 , or refer to PROCEDURE - Step 72
