Removal [12/2012 - ]: Procedure

  1. REMOVE RADIATOR HOSE CLAMP

    Refer to PROCEDURE - Step 15 [12/2012 - 10/2015] , PROCEDURE - Step 15 [10/2015 - 08/2017] , or PROCEDURE - Step 15 [08/2017 - ]

  2. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

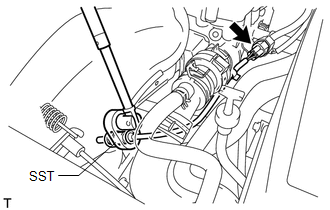

    GTY364654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the air fuel ratio sensor connector.
    2. Using SST, remove the air fuel ratio sensor from the exhaust manifold.
      • SST: 09224-00010
