- DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
Refer to PROCEDURE - Step 1
- REMOVE HEADLIGHT
- REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 6
- DRAIN ENGINE COOLANT
See step 2
- REMOVE BATTERY CLAMP SUB-ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE HOOD LOCK ASSEMBLY
Refer to PROCEDURE - Step 9
- DISCONNECT HOOD LOCK CONTROL CABLE ASSEMBLY

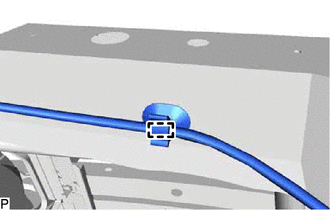

- Detach the clamp to disconnect the hood lock control cable assembly from the upper radiator support.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

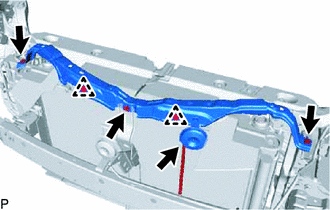

- REMOVE FRONT BUMPER UPPER REINFORCEMENT SUB-ASSEMBLY
- Disconnect the horn connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 2 clips.
- Remove the 3 bolts and front bumper upper reinforcement sub-assembly.
- REMOVE RADIATOR UPPER AIR GUIDE PLATE

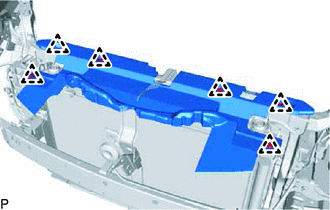

- Remove the 6 clips and radiator upper air guide plate.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- DISCONNECT LIQUID PIPE SUB-ASSEMBLY
Refer to PROCEDURE - Step 6
- DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY
Refer to PROCEDURE - Step 5
- DISCONNECT WIRE HARNESS

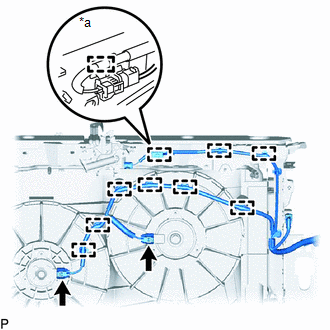

- Disconnect the 2 cooling fan motor connectors.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
w/o Hood Courtesy Switch |

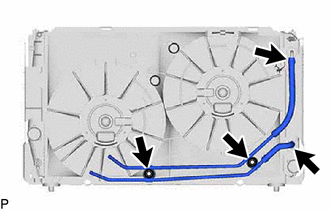

- Detach the 9 wire harness clamps to disconnect the wire harness.
- REMOVE NO. 1 RADIATOR SUPPORT

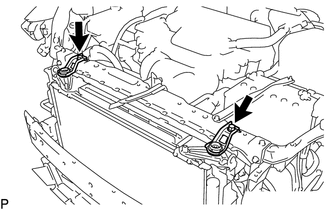

- Remove the 2 bolts and 2 No. 1 radiator supports.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE UPPER RADIATOR SUPPORT
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

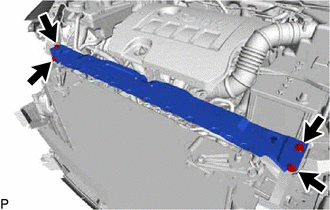

Remove the 4 bolts and upper radiator support.

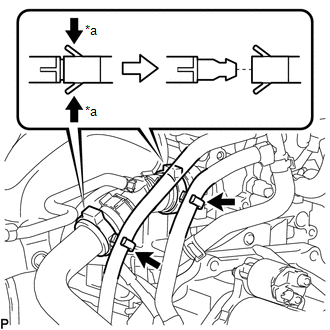

- REMOVE RADIATOR HOSE CLAMP
- Disconnect the No. 8 and No. 9 water by-pass hose from each radiator hose clamp.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 2 radiator hose clamps.
- DISCONNECT RADIATOR HOSE SUB-ASSEMBLY
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

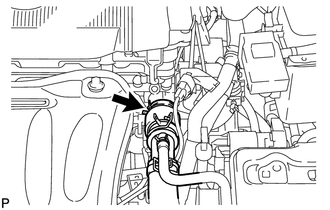

Slide the hose clamp and disconnect the radiator hose sub-assembly from the cylinder head sub-assembly.
- DISCONNECT NO. 2 RADIATOR HOSE
See step 5
- DISCONNECT NO. 1 WATER BY-PASS HOSE
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

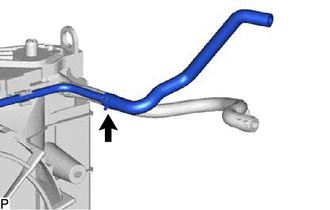

- Slide the hose clamp and disconnect the No. 1 water by-pass hose from the water by-pass pipe.
- DISCONNECT NO. 2 WATER BY-PASS HOSE
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

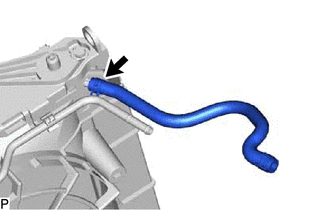

- Slide the hose clamp and disconnect the No. 2 water by-pass hose from the radiator assembly.
- REMOVE RADIATOR ASSEMBLY
- w/ Towing Package:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

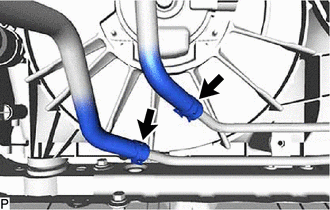

Slide the 2 hose clips and disconnect the 2 oil cooler hoses.
- Remove the radiator assembly together with the fan shroud.
HINT:
After removing the radiator assembly, make sure that both lower radiator supports are attached to the fan shroud.
- REMOVE RADIATOR HOSE SUB-ASSEMBLY
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
Slide the 2 hose clamps and remove the radiator hose sub-assembly from the radiator assembly and water by-pass pipe.
- REMOVE NO. 2 RADIATOR HOSE
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

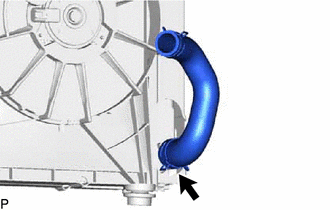

Slide the hose clamp and remove the No. 2 radiator hose from the radiator assembly.
- REMOVE WATER BY-PASS PIPE

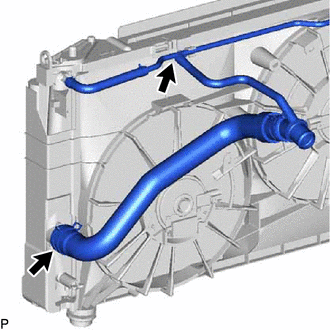

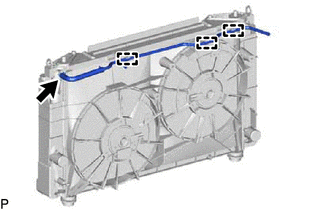

- Detach the 3 clamps, slide the hose clamp and remove the water by-pass pipe from the radiator assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE OIL COOLER TUBE SUB-ASSEMBLY (w/ Towing Package)
- Slide the 2 clips and disconnect the 2 oil cooler hoses from the radiator assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

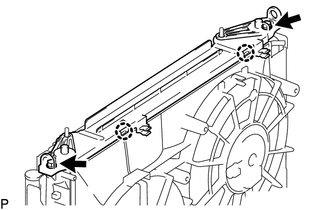

- Remove the 2 bolts and oil cooler tube sub-assembly from the fan shroud.
- REMOVE LOWER RADIATOR SUPPORT
- Remove the 2 lower radiator supports from the fan shroud.
- REMOVE NO. 2 FAN SHROUD
- Remove the 2 bolts.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Detach the 2 claws and remove the No. 2 fan shroud.
- REMOVE COOLER CONDENSER ASSEMBLY
- Detach the 2 guides and remove the cooler condenser assembly.
Refer to PROCEDURE - Step 9
- REMOVE FAN SHROUD
- Remove the 2 bolts and fan shroud.
