REAR SUSPENSION MEMBER (for 2WD): Installation

  1. INSTALL STUD BOLT (for LH Side)
    1. Install the stud bolt.

      Torque: 17 N*m (173 kgf*cm, 12 ft.*lbf)

  2. INSTALL STUD BOLT (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

    Fig 1: Locating Stud Bolt
    G05417410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL HOLE PLUG
    1. Install the hole plugs to the rear suspension member sub-assembly.

      HINT:

      There are two sizes of hole plugs.

    Fig 2: Identifying Rear Suspension Member Sub-Assembly Hole Plugs
    G05417409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR SUSPENSION MEMBER BODY MOUNTING FRONT CUSHION LH
    1. Temporarily install a new rear suspension member body mounting front cushion LH to the position shown in the illustration.
      Fig 3: Installing Rear Suspension Member Body Mounting Front Cushion LH To Position
      G05417413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a press, install the rear suspension member body mounting front cushion LH to the rear suspension member sub-assembly.

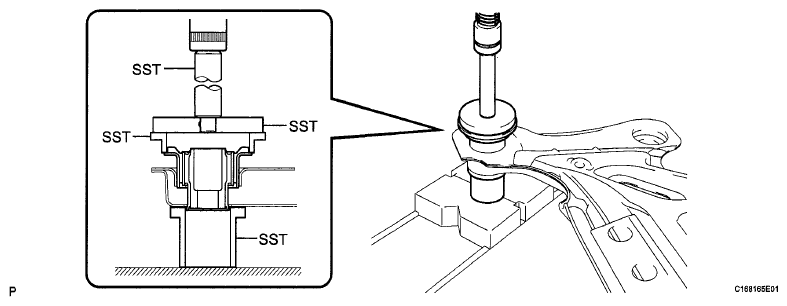

      Fig 4: Pressing Rear Suspension Member Body Mounting Front Cushion LH
      G06120302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09950-70010 (09951-07100), 09950-60020 (09951-00890), 09502-12010, 09515-30010

      HINT:

      Slowly press in the mounting cushion.

    3. While observing from the side, press in the rear suspension member body mounting front cushion LH until there is no clearance between the rear suspension member body mounting front cushion LH and the rear suspension member sub-assembly as shown in the illustration.
      NOTE: Do not press the rear suspension member excessively, or it will easily deform.
    Fig 5: Pressing Rear Suspension Member Body Mounting Front Cushion LH
    G05417415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL REAR SUSPENSION MEMBER BODY MOUNTING FRONT CUSHION RH
    1. Temporarily install a new rear suspension member body mounting front cushion RH to the position shown in the illustration.
      Fig 6: Installing Rear Suspension Member Body Mounting Front Cushion RH To Position
      G05417416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a press, install the rear suspension member body mounting front cushion RH to the rear suspension member sub-assembly.
      Fig 7: Pressing Rear Suspension Member Body Mounting Front Cushion RH
      G05417417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09950-70010 (09951-07100), 09950-60020 (09951-00890), 09502-12010, 09515-30010

      HINT:

      Slowly press in the mounting cushion.

    3. While observing from the side, press in the rear suspension member body mounting front cushion RH until there is no clearance between the rear suspension member body mounting front cushion RH and the rear suspension member sub-assembly as shown in the illustration.
      NOTE: Do not press the rear suspension member excessively, or it will easily deform.
    Fig 8: Pressing Rear Suspension Member Body Mounting Front Cushion RH
    G05417415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL REAR SUSPENSION MEMBER BODY MOUNTING REAR CUSHION (for LH Side)
    1. Temporarily install a new rear suspension member body mounting rear cushion (LH side) to the position shown in the illustration.
      Fig 9: Installing Rear Suspension Member Body Mounting Rear Cushion LH Position
      G05417419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a press, install the rear suspension member body mounting rear cushion (LH side) to the rear suspension member sub-assembly.
      Fig 10: Pressing Rear Suspension Member Body Mounting Rear Cushion (LH Side)
      G05417420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09950-70010 (09951-07100), 09950-60020 (09951-00890), 09502-12010, 09515-30010

      HINT:

      Slowly press in the mounting cushion.

    3. While observing from the side, press in the rear suspension member body mounting rear cushion (LH side) until there is no clearance between the rear suspension member body mounting rear cushion (LH side) and the rear suspension member sub-assembly as shown in the illustration.
      NOTE: Do not press the rear suspension member excessively, or it will easily deform.
  7. INSTALL REAR SUSPENSION MEMBER BODY MOUNTING REAR CUSHION (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

    Fig 11: Pressing Rear Suspension Member Body Mounting Front Cushion RH
    G05417415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR SUSPENSION MEMBER
    1. Set the jack and wooden blocks below the vehicle as shown in the illustration.
      Fig 12: Lifting Rear Suspension Member
      G05417422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Set the rear suspension member onto the jack as shown in the illustration.
      NOTE: When removing the rear suspension member, be careful not to damage the vehicle body or other components installed on the vehicle.
      Fig 13: Setting Rear Suspension Member Onto Jack
      G05417423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Raise the rear suspension member with a jack.
    4. Install the rear suspension member and the rear lower suspension member stopper LH and RH with the 4 nuts.
      Fig 14: Raising Rear Suspension Member With Jack
      G05417403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 15: Identifying Rear Lower Suspension Member Stopper LH And RH With Nuts
      G05417425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: Nut A

      55 N*m (561 kgf*cm, 40 ft.*lbf)

      Nut B

      38 N*m (387 kgf*cm, 28 ft.*lbf)

    5. Install the rear suspension member and the rear lower suspension member stoppers with the 2 bolts.
    Fig 16: Identifying Rear Lower Suspension Member Stoppers With Bolts
    G05417426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 55 N*m (561 kgf*cm, 40 ft.*lbf)

    NOTE: Be sure to install the rear suspension member with the rear lower suspension member stopper in the correct direction as shown in the illustration.
  9. INSTALL EXHAUST PIPE CLAMP BRACKET SUB-ASSEMBLY
    1. Install the exhaust pipe clamp bracket sub-assembly with the 3 bolts.
      Fig 17: Locating Exhaust Pipe Clamp Bracket Sub-Assembly Bolts
      G05417402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the exhaust pipe clamp to the exhaust pipe clamp bracket sub-assembly.
  10. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH  (See INSTALLATION )
  11. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  12. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH  (See INSTALLATION )
    Fig 18: Identifying Exhaust Pipe Clamp
    G05417428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  14. STABILIZE SUSPENSION  (See INSTALLATION )
  15. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY LH  (See REAR LOWER ARM (FOR 4WD) )
  16. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  17. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY LH  (See REAR LOWER ARM (FOR 4WD) )
  18. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  19. INSTALL REAR STABILIZER BAR  (See INSTALLATION )
  20. INSTALL REAR STABILIZER LINK ASSEMBLY LH  (See REAR LOWER ARM (FOR 4WD) )
  21. INSTALL REAR STABILIZER LINK ASSEMBLY RH  (See REAR LOWER ARM (FOR 4WD) )
  22. INSTALL REAR WHEELS

    Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

  23. INSTALL SPARE WHEEL CARRIER LOCK COVER (w/ Cover)
  24. INSTALL SPARE TIRE
  25. INSTALL LOWER SPARE WHEEL CARRIER HINGE COVER (w/ Cover)
  26. INSTALL DECK TRIM SERVICE HOLE COVER
  27. INSTALL REAR MAT  (See INSTALLATION )
  28. INSTALL TONNEAU COVER ASSEMBLY  (See INSTALLATION )
  29. INSTALL NO. 2 DECK BOARD SUB-ASSEMBLY  (See INSTALLATION )
  30. INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY  (See INSTALLATION )
  31. INSTALL DECK BOARD ASSEMBLY  (See INSTALLATION )
  32. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    HINT:

    See REAR WHEEL ALIGNMENT
