Section 8 (Engine Cooling System (1AR-FE)): Radiator: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL LOWER RADIATOR SUPPORT
1. Install the 2 lower radiator supports.

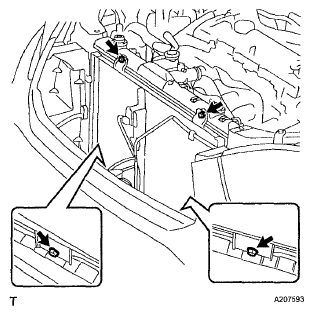

Fig 1: Installing Lower Radiator Supports
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR SUPPORT CUSHION
1. Install the 2 radiator support cushions.
Fig 2: Installing Radiator Support Cushions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FAN ASSEMBLY WITH MOTOR
1. Put in the fan assembly with motor to the radiator assembly.
2. Install the fan assembly with motor with the 3 bolts.
  Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

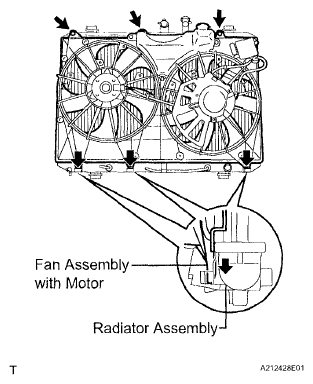

  Fig 3: Locating Fan Assembly With Motor And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the radiator reserve tank hose or pipe to the radiator assembly.
Fig 4: Locating Radiator Reserve Tank Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR ASSEMBLY AND FAN ASSEMBLY WITH MOTOR
1. Install the radiator assembly and fan assembly with motor.
NOTE: Do not apply any excessive force to the cooler condenser assembly or pipe when installing the radiator assembly.

Fig 5: Installing Radiator Assembly And Fan Assembly With Motor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COOLER CONDENSER ASSEMBLY
1. Install the cooler condenser assembly with the 4 bolts.
  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)
Fig 6: Locating Bolts And Cooler Condenser Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL UPPER RADIATOR SUPPORT SUB-ASSEMBLY
1. Install the upper radiator support sub-assembly with the 5 bolts and attach the hood lock control cable clamp to the radiator support.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  Fig 7: Locating Bolts And Upper Radiator Support Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the discharge hose sub-assembly with the bolt.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

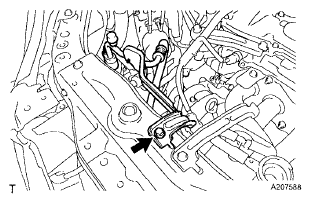

  Fig 8: Locating Bolt And Discharge Hose Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the low pitched horn and high pitched horn connectors.
4. Attach the hood lock control cable clamp and wire harness clamp.
INSTALL HOOD LOCK ASSEMBLY (w/o Engine Hood Courtesy Switch) (See INSTALLATION )
INSTALL HOOD LOCK ASSEMBLY (w/ Engine Hood Courtesy Switch) (See INSTALLATION )

Fig 9: Locating Low Pitched Horn And High Pitched Horn Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT COOLING FAN ECU CONNECTOR
1. Connect the cooling fan ECU connector and attach the wire harness clamps to the fan shroud RH side.

  Fig 10: Identifying Wire Harness Clamps And Cooling Fan ECU Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the wire harness clamps to the fan shroud LH side.
Fig 11: Identifying Wire Harness Clamps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT OUTLET NO. 1 OIL COOLER HOSE
1. Connect the outlet oil cooler hose to the radiator.
Fig 12: Locating Outlet Oil Cooler Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT INLET NO. 1 OIL COOLER HOSE
1. Connect the inlet oil cooler hose to the radiator.
Fig 13: Locating Inlet Oil Cooler Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT NO. 2 RADIATOR HOSE
1. Connect the No. 2 radiator hose to the radiator.
Fig 14: Locating No. 2 Radiator Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT NO. 1 RADIATOR HOSE
1. Connect the No. 1 radiator hose to the radiator.
INSTALL NO. 1 INLET AIR CLEANER (See REMOVAL )
INSTALL NO. 2 INLET AIR CLEANER (See INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION )

Fig 15: Locating No. 1 Radiator Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR GRILLE (See INSTALLATION )
ADD ENGINE COOLANT (See COOLANT )
INSPECT FOR COOLANT LEAK (See COOLING SYSTEM )
INSPECT AUTOMATIC TRANSAXLE FLUID
HINT:

See DISASSEMBLY .
INSPECT FOR OIL LEAK
INSTALL NO. 1 ENGINE UNDER COVER
