Shift Lever: Disassembly

REMOVE POSITION INDICATOR HOUSING ASSEMBLY
1. Separate the connector and 2 wire harness clamps from the shift lock control unit.

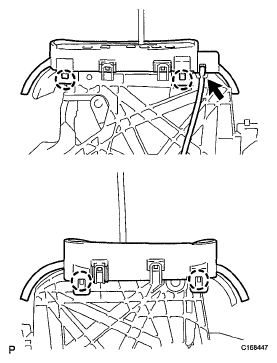

  Fig 1: Locating Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, release the stopper.
3. Using a screwdriver, disengage the locking lug of terminals 4 and 8, and pull the terminals out from the rear of the connector.

  Fig 2: Disengaging Locking Lug Of Terminals 4 And 8
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Separate the wire harness clamp from the shift lock control unit.
5. Disengage the 4 claws and remove, the position indicator housing from the shift lock control unit.

  Fig 3: Locating Position Indicator Housing Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR HOUSING LOWER
1. Disengage the 4 claws and remove the position indicator housing lower from the position indicator housing.
REMOVE SHIFT LEVER CAP
1. Using a screwdriver, remove the shift lever cap from the position indicator housing.

  Fig 4: Identifying Position Indicator Housing Lower Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR LIGHT GUIDE
1. Disengage the 4 claws and remove the position indicator light guide from the position indicator housing lower.

  Fig 5: Identifying Position Indicator Light Guide Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Remove the indicator light wire sub-assembly from the position indictor light guide.
REMOVE POSITION INDICATOR LIGHT BULB
1. Remove the bulb and cap from the indicator light wire socket.

  Fig 6: Removing Position Indicator Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER
1. Remove the position indicator slide cover from the position indicator housing lower.

  Fig 7: Identifying Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 POSITION INDICATOR SLIDE COVER
1. Remove the position indicator slide cover from the No. 2 position indicator slide cover.

  Fig 8: Identifying No. 2 Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
