Parking Brake Pedal: Removal

CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing the parking brake pedal (see AIRBAG SYSTEM ).
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Manual Seat)
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  2. REMOVE FRONT SEAT HEADREST ASSEMBLY LH (for Manual Seat)  (See REMOVAL )
  3. REMOVE FRONT OUTER SEAT TRACK COVER LH (for Manual Seat)  (See REMOVAL )
  4. REMOVE FRONT INNER SEAT TRACK COVER LH (for Manual Seat)  (See REMOVAL )
  5. REMOVE REAR SEAT TRACK COVER LH (for Manual Seat)  (See REMOVAL )
  6. REMOVE FRONT SEAT ASSEMBLY LH (for Manual Seat)  (See REMOVAL )
  7. REMOVE FRONT SEAT HEADREST ASSEMBLY LH (for Power Seat)  (See REMOVAL )
  8. REMOVE FRONT OUTER SEAT TRACK COVER LH (for Power Seat)  (See REMOVAL )
  9. REMOVE FRONT INNER SEAT TRACK COVER LH (for Power Seat)  (See REMOVAL )
  10. REMOVE REAR OUTER SEAT TRACK COVER LH (for Power Seat)  (See REMOVAL )
  11. REMOVE REAR INNER SEAT TRACK COVER LH (for Power Seat)  (See REMOVAL )
  12. REMOVE FRONT SEAT ASSEMBLY LH (for Power Seat)  (See REMOVAL )
  13. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
  14. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH  (See REMOVAL )
  15. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for Manual Air Conditioning System)  (See REMOVAL )
  16. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for Automatic Air Conditioning System)  (See REMOVAL )
  17. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See REMOVAL )
  18. REMOVE REAR DOOR SCUFF PLATE LH  (See REMOVAL )
  19. REMOVE LOWER CENTER PILLAR GARNISH LH  (See REMOVAL )
  20. REMOVE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY  (See REMOVAL )
  21. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/o Smart Key System)  (See REMOVAL )
  22. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/ Smart Key System)  (See REMOVAL )
  23. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY  (See REMOVAL )
  24. REMOVE NO. 2 CONSOLE BOX DUCT (w/o Rear Air Conditioning System)  (See REMOVAL )
  25. REMOVE LOWER REAR CONSOLE BOX  (See REMOVAL )
  26. REMOVE CONSOLE BOX ASSEMBLY (w/o Rear Air Conditioning System)  (See REMOVAL )
  27. REMOVE CONSOLE BOX ASSEMBLY (w/ Rear Air Conditioning System)  (See DISASSEMBLY )
  28. REMOVE FRONT NO. 1 CONSOLE BOX INSERT  (See REMOVAL )
  29. REMOVE REAR NO. 2 AIR DUCT
    1. Turn back the front floor carpet assembly.
    2. Remove the clip and the rear No. 2 air duct.
      Fig 1: Identifying Rear No. 2 Air Duct Clip
      G05418045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE REAR NO. 1 AIR DUCT
    1. Disengage the wire harness clamp.
    2. Remove the rear No. 1 air duct.
      Fig 2: Identifying Rear No. 1 Air Duct Clip With Wire Harness Clamp
      G05418046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE FRONT FLOOR FOOTREST
    1. Disengage the 2 clips to remove the front floor footrest.
      Fig 3: Identifying Front Floor Footrest Clips
      G05418047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. LOOSEN ADJUSTING NUT
    1. Remove the lock nut and loosen the adjusting nut.
      Fig 4: Identifying Lock Nut And Adjusting Nut
      G05418031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE CENTER FRONT FLOOR COVER
    1. Remove the 4 bolts, 2 screws, and the nut.
      Fig 5: Identifying Center Front Floor Cover Bolts, Screws And Nut
      G05418049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 clips and remove the center front floor cover.
      Fig 6: Identifying Center Front Floor Cover Clips
      G05418050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE REAR ENGINE SERVICE COVER ASSEMBLY
    1. Remove the 2 bolts and the rear engine service cover assembly.
      Fig 7: Identifying Rear Engine Service Cover Assembly Bolts
      G05418051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY
    1. Separate the No. 3 parking brake cable assembly from the parking brake equalizer.
  36. SEPARATE NO. 2 PARKING BRAKE CABLE ASSEMBLY

    HINT:

    Perform the same procedure as for the No. 3 parking brake cable assembly.

    Fig 8: Identifying No. 2 Parking Brake Cable Assembly
    G05418052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE PARKING BRAKE EQUALIZER
    1. Slide the rubber boot as shown in the illustration.
      Fig 9: Sliding Rubber Boot
      G05418053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the parking brake equalizer from the No. 1 parking brake cable assembly as shown in the illustration.
  38. REMOVE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY  (See REMOVAL )

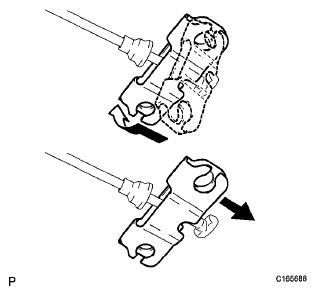

    Fig 10: Removing Parking Brake Equalizer From No. 1 Parking Brake Cable Assembly
    G06116926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE PARKING BRAKE CONTROL PEDAL ASSEMBLY
    1. Remove the 2 bolts and 2 nuts, and separate the No. 1 parking brake cable assembly.
    2. Remove the clamp.
      Fig 11: Identifying No. 1 Parking Brake Cable Assembly With Bolts, Clamp And Nuts
      G05418055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull out the No. 1 parking brake cable assembly toward the cabin.
      Fig 12: Pulling Out No. 1 Parking Brake Cable Assembly
      G05418056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the parking brake switch connector.
      Fig 13: Locating Parking Brake Switch Connector
      G05418057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 2 clamps to separate the wire harness clamp.
      Fig 14: Identifying Wire Harness Clamp
      G05418058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 3 nuts and the parking brake control pedal assembly.
