Parking Brake Cable: Installation

INSTALL NO. 1 PARKING BRAKE CABLE SUPPORT BRACKET
1. Install the No. 1 parking brake cable support bracket to the No. 3 parking brake cable assembly.

  Fig 1: Identifying No. 1 Parking Brake Cable Support Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY

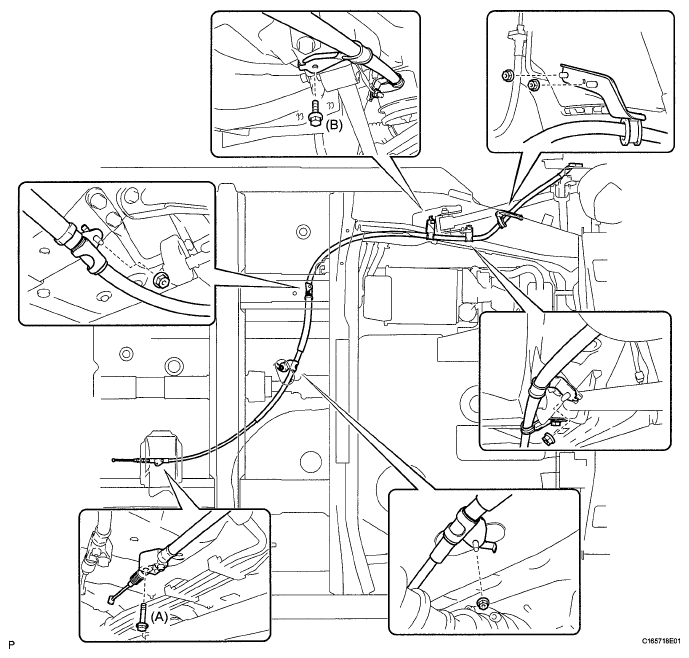

1. Install the No. 3 parking brake cable assembly with the 2 bolts and 4 nuts.

  Fig 2: Identifying No. 3 Parking Brake Cable Assembly With Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: Bolt (A)

  8.5 N*m (87 kgf*cm, 75 in.*lbf)

  Bolt (B)

  39 N*m (397 kgf*cm, 29 ft.*lbf)

  Nut

  6.0 N*m (61 kgf*cm, 53 in.*lbf)
2. Install the No. 3 parking brake cable assembly to the backing plate with the 2 bolts.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  Fig 3: Identifying No. 3 Parking Brake Cable Assembly With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CABLE SUPPORT BRACKET
1. Install the cable support bracket to the No. 2 parking brake cable assembly.

  Fig 4: Identifying Cable Support Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARKING BRAKE CABLE SUPPORT BRACKET
1. Install the parking brake cable support bracket to the No. 2 parking brake cable assembly.

  Fig 5: Identifying Parking Brake Cable Support Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 PARKING BRAKE CABLE ASSEMBLY

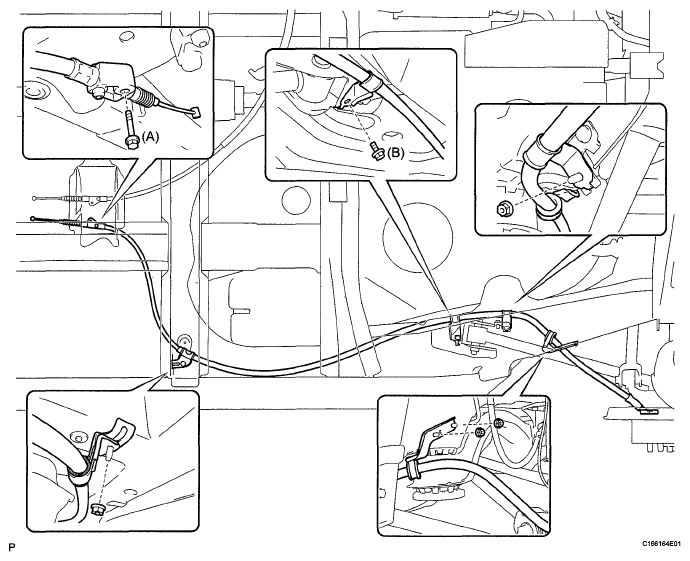

1. Install the No. 2 parking brake cable assembly with the 2 bolts and 5 nuts.

  Fig 6: Identifying No. 2 Parking Brake Cable Assembly With Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: Bolt (A)

  8.5 N*m (87 kgf*cm, 75 in.*lbf)

  Bolt (B)

  39 N*m (397 kgf*cm, 29 ft.*lbf)

  Nut

  6.0 N*m (61 kgf*cm, 53 in.*lbf)
2. Install the No. 2 parking brake cable assembly to the backing plate with the 2 bolts.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
INSTALL NO. 2 PARKING BRAKE SHOE ASSEMBLY WITH PARKING BRAKE SHOE LEVER (See REASSEMBLY )

Fig 7: Identifying No. 2 Parking Brake Cable Assembly With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 PARKING BRAKE SHOE RETURN TENSION SPRING (See REASSEMBLY )
INSTALL NO. 1 PARKING BRAKE SHOE ASSEMBLY (See REASSEMBLY )
INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET (See REASSEMBLY )
INSTALL NO. 2 PARKING BRAKE SHOE ASSEMBLY (See REASSEMBLY )
INSTALL PARKING BRAKE SHOE STRUT (See REASSEMBLY )
INSTALL NO. 1 PARKING BRAKE SHOE ASSEMBLY (See REASSEMBLY )
INSTALL NO. 1 PARKING BRAKE SHOE RETURN TENSION SPRING (See REASSEMBLY )
CHECK PARKING BRAKE INSTALLATION (See REASSEMBLY )
INSTALL REAR DISC (See REASSEMBLY )
INSTALL REAR DISC BRAKE CALIPER ASSEMBLY (for 2WD) (See REPLACEMENT )
INSTALL REAR DISC BRAKE CALIPER ASSEMBLY (for 4WD) (See REPLACEMENT )
INSTALL REAR WHEEL
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY
1. Pass the No. 1 parking brake cable assembly through the parking brake pedal.
2. Install the clip to the No. 1 parking brake cable assembly.

  Fig 8: Identifying No. 1 Parking Brake Cable Assembly Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Temporarily install the adjusting nut.

  Fig 9: Identifying Adjusting Nut Of No. 1 Parking Brake Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Bend the parking brake pedal claw.
INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY
HINT:

Refer to the instructions for INSTALLATION of the parking brake pedal (See REASSEMBLY ).

Fig 10: Bending Parking Brake Pedal Claw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
BED IN PARKING BRAKE SHOES TO DISCS (See REASSEMBLY )
ADJUST PARKING BRAKE SHOE CLEARANCE AND PARKING BRAKE PEDAL TRAVEL (See ADJUSTMENT )
INSPECT BRAKE WARNING LIGHT (See ADJUSTMENT )
