FRONT SEAT CUSHION HEATER (for Power Seat): Installation

  1. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER (w/o Seat Cushion Front Edge Adjustment Function)
    1. Using hog ring pliers, temporarily install the separate type front seat cushion cover with 11 new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.

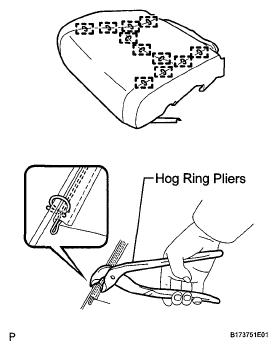

      Fig 1: Identifying Separate Type Front Seat Cushion Cover And Hog Rings
      G05421496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using hog ring pliers, install the separate type front seat cushion cover with 6 new hog rings.
    NOTE:
    • Be careful not to damage the cover.
    • When installing the hog rings, take care to minimize wrinkles as much as possible.

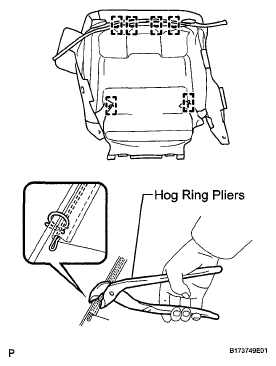

    Fig 2: Installing Front Seat Frame Assembly Using Adjuster
    G05421497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER (w/ Seat Cushion Front Edge Adjustment Function)
    1. Using hog ring pliers, temporarily install the separate type front seat cushion cover with 15 new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.

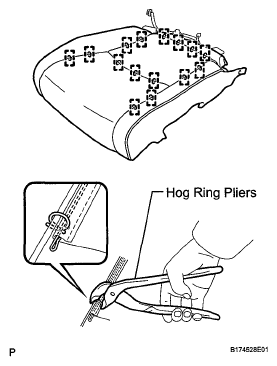

      Fig 3: Installing Front Seat Cushion Cover And Hog Rings
      G05421598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using hog ring pliers, install the separate type front seat cushion cover with 2 new hog rings.
    NOTE:
    • Be careful not to damage the cover.
    • When installing the hog rings, take care to minimize wrinkles as much as possible.
  3. INSTALL FRONT SEAT CUSHION COVER WITH PAD (w/o Seat Cushion Front Edge Adjustment Function)  (See INSTALLATION )
  4. INSTALL FRONT SEAT CUSHION COVER WITH PAD (w/ Seat Cushion Front Edge Adjustment Function)  (See INSTALLATION )
  5. INSTALL FRONT SEAT CUSHION INNER SHIELD  (See INSTALLATION )
  6. INSTALL FRONT SEAT INNER BELT ASSEMBLY  (See INSTALLATION )
    Fig 4: Installing Front Seat Frame Assembly Using Adjuster
    G05421497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL FRONT SEAT CUSHION SHIELD ASSEMBLY  (See INSTALLATION )
  8. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB  (See INSTALLATION )
  9. INSTALL RECLINING POWER SEAT SWITCH KNOB  (See INSTALLATION )
  10. INSTALL FRONT SEAT ASSEMBLY  (See INSTALLATION )
  11. INSTALL REAR INNER SEAT TRACK COVER  (See INSTALLATION )
  12. INSTALL REAR OUTER SEAT TRACK COVER  (See INSTALLATION )
  13. INSTALL FRONT INNER SEAT TRACK COVER  (See INSTALLATION )
  14. INSTALL FRONT OUTER SEAT TRACK COVER  (See INSTALLATION )
  15. INSTALL FRONT SEAT HEADREST ASSEMBLY  (See INSTALLATION )
  16. INSPECT FRONT SEAT ASSEMBLY  (See INSTALLATION )
  17. INSPECT SRS WARNING LIGHT

    (See INSTALLATION )
