FRONT SEAT ASSEMBLY (for Manual Seat): Disassembly

  1. REMOVE SEAT ADJUSTER COVER CAP
    1. Remove the 2 seat adjuster cover caps.
    Fig 1: Locating Seat Adjuster Cover Caps
    G06014978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE RECLINING ADJUSTER RELEASE HANDLE
    1. Using a screwdriver wrapped with protective tape, disengage the claw and remove the reclining adjuster release handle.
    Fig 2: Removing Reclining Adjuster Release Handle
    G06014979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE VERTICAL SEAT ADJUSTER KNOB CAP
    1. Using a screwdriver wrapped with protective tape, disengage the 2 claws and remove the vertical seat adjuster knob cap.
    Fig 3: Removing Vertical Seat Adjuster Knob Cap
    G06014980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE VERTICAL ADJUSTING HANDLE
    1. Remove the 2 screws and the vertical adjusting handle.
    Fig 4: Identifying Vertical Adjusting Handle Screws
    G06014981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT SEAT CUSHION SHIELD
    1. Remove the 3 screws.
    2. Disengage the claw.
    3. Disengage the 2 guides and remove the front seat cushion shield.
    Fig 5: Identifying Front Seat Cushion Shield Guides And Screws
    G06014982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 SEAT TRACK LOWER SPACER
    1. Remove the 2 screws and the No. 1 seat track lower spacer.
  7. REMOVE FRONT SEAT INNER BELT ASSEMBLY  (See REMOVAL )
    Fig 6: Identifying No. 1 Seat Track Lower Spacer Screws
    G06014983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT SEAT CUSHION INNER SHIELD
    1. Remove the screw.
    2. Disengage the claw.
      Fig 7: Identifying Front Seat Cushion Inner Shield Claw
      G06014984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Separate the guide and remove the front seat cushion inner shield as shown in the illustration.
    Fig 8: Removing Front Seat Cushion Inner Shield
    G06014985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 2 SEAT TRACK LOWER SPACER
    1. Remove the screw and the No. 2 seat track lower spacer.
    Fig 9: Identifying No. 2 Seat Track Lower Spacer Screw
    G06014986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT SEAT CUSHION COVER WITH PAD
    1. Disengage the 2 hooks.
      Fig 10: Locating Front Seat Cushion Cover Hooks
      G06014987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 hog rings.
      Fig 11: Identifying Hog Rings
      G06014988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a clip remover, remove the 2 clips.

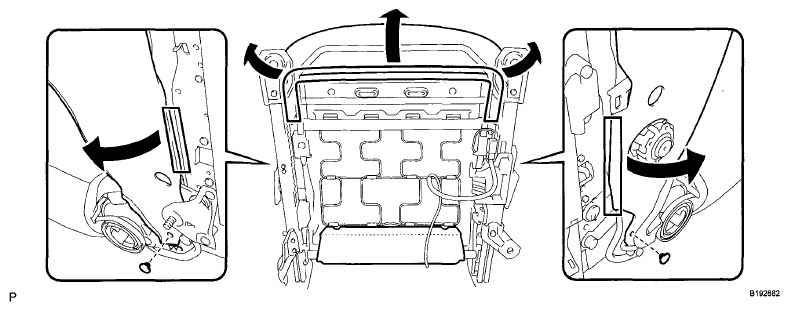

      Fig 12: Removing Clips
      G06014989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the hooks and remove the front seat cushion cover with pad as shown in the illustration.
  11. REMOVE FRONT SEAT CUSHION EDGE PROTECTOR
    1. Remove the 2 front seat cushion edge protectors.
    Fig 13: Locating Front Seat Cushion Edge Protectors
    G06014990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER
    1. Remove the 10 hog rings and the separate type front seat cushion cover.
    Fig 14: Identifying Separate Type Front Seat Cushion Cover Hog Rings
    G06014991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY (w/ Seat Heater System)
    1. Cut off the 8 tack pins and remove the front seat cushion heater assembly.
    Fig 15: Identifying Front Seat Cushion Heater Assembly Tack Pins
    G06014992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT SEATBACK COVER WITH PAD
    1. Remove the 4 hog rings.
      Fig 16: Identifying Front Seatback Cover Hog Rings
      G06014993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 hog rings.
      Fig 17: Identifying Hog Rings
      G06014994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Front Seat Side Airbag:
      1. Turn back the separate type front seatback cover to remove the nut, and separate the bracket of the separate type front seatback cover.
      Fig 18: Locating Front Seatback Cover Nut
      G06014995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 4 claws and remove the 2 front seat headrest supports.
    5. Remove the front seatback cover with pad from the front seat frame assembly with adjuster.
    Fig 19: Identifying Front Seat Headrest Supports And Claws
    G06014996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE SEPARATE TYPE FRONT SEATBACK COVER
    1. Remove the 4 hog rings and the separate type front seatback cover.
    Fig 20: Identifying Separate Type Front Seatback Cover And Hog Rings
    G06014997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FRONT SEATBACK HEATER ASSEMBLY (w/ Seat Heater System)
    1. Cut off the 4 tack pins and remove the front seatback heater assembly.
    Fig 21: Identifying Front Seatback Heater Assembly And Tack Pins
    G06014998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE LUMBAR SUPPORT PLATE (for TMMC, NUMMI Made)
    1. Disengage the 2 hooks and remove the lumbar support plate.
    Fig 22: Identifying Lumbar Support Plate And Hooks
    G06014999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE RECLINING ADJUSTER INSIDE COVER LH
    1. Remove the screw.
    2. Disengage the guide.
    3. w/ Front Seat Side Airbag:
      1. Disengage the clamp and remove the reclining adjuster inside cover LH.

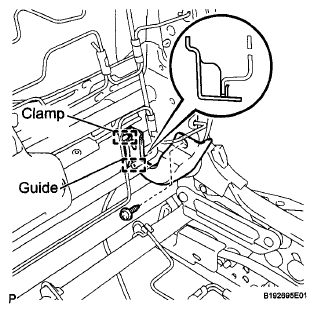

    Fig 23: Identifying Reclining Adjuster Inside Cover LH And Clamp
    G06015000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE RECLINING ADJUSTER INSIDE COVER LH
    1. Remove the screw and the reclining adjuster inside cover LH.
    Fig 24: Identifying Reclining Adjuster Inside Cover LH And Screw
    G06015001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE RECLINING ADJUSTER INSIDE COVER RH
    1. Remove the screw.
    2. Disengage the guide and remove the reclining adjuster inside cover RH.

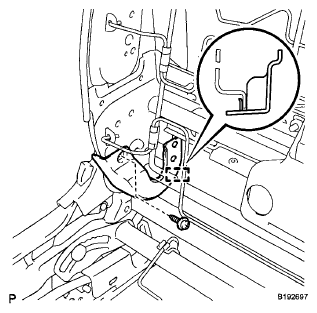

    Fig 25: Identifying Reclining Adjuster Inside Cover RH Guide And Screw
    G06015002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE RECLINING ADJUSTER INSIDE COVER RH
    1. Remove the screw and the reclining adjuster inside cover RH.
    Fig 26: Identifying Reclining Adjuster Inside Cover RH And Screw
    G06015003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE FRONT SEAT LOWER CUSHION SHIELD LH
    1. Disengage the claw and remove the front seat lower cushion shield LH as shown in the illustration.
    Fig 27: Identifying Front Seat Lower Cushion Shield LH And Claw
    G06015004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE FRONT SEAT LOWER CUSHION SHIELD RH
    1. Disengage the claw and remove the front seat lower cushion shield RH as shown in the illustration.
    Fig 28: Identifying Front Seat Lower Cushion Shield RH And Claw
    G06015005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE SEAT TRACK CONTROL CABLE CLAMP
    1. Disengage the clamp and remove the seat track control cable clamp.
    Fig 29: Identifying Seat Track Control Cable Clamp
    G06015006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE FRONT SEAT OUTER TRACK BRACKET COVER
    1. Disengage the claw as shown in the illustration.

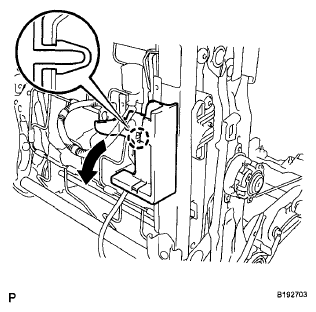

      Fig 30: Removing Front Seat Outer Track Bracket Cover Claw
      G06015007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and remove the front seat outer track bracket cover as shown in the illustration.

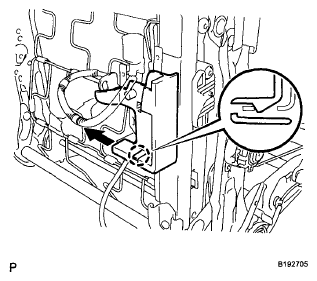

    Fig 31: Removing Front Seat Outer Track Bracket Cover Claw
    G06015008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE ACTIVE HEADREST UPPER UNIT (w/ Active Headrest)
    1. Remove the nut and disconnect the cable from the active headrest upper unit as shown in the illustration.
    2. Remove the 4 nuts and the active headrest upper unit.

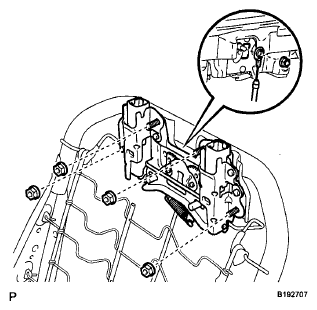

    Fig 32: Identifying Active Headrest Upper Unit Nuts
    G06015009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE ACTIVE HEADREST LOWER UNIT (w/ Active Headrest)
    1. Remove the clamp.
    2. Remove the 2 nuts and the active headrest lower unit.
  28. REMOVE OCCUPANT CLASSIFICATION ECU (for Front Passenger Side)  (See ON-VEHICLE INSPECTION )
  29. REMOVE SEAT POSITION SENSOR  (See REMOVAL )

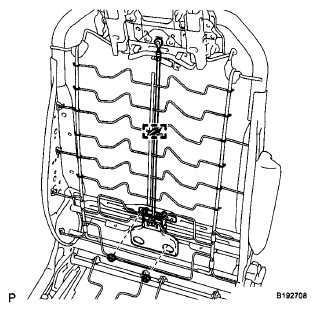

    Fig 33: Identifying Active Headrest Lower Unit And Nuts
    G06015010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE FRONT SEAT WIRE (for Front Passenger Side)
    1. Disengage the 8 clamps and remove the front seat wire.

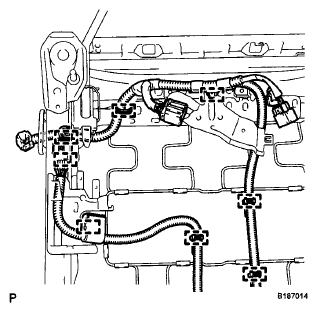

    Fig 34: Identifying Front Seat Wire And Clamps
    G06015011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
