Steering Column Assembly: Installation

INSTALL STEERING INTERMEDIATE SHAFT ASSEMBLY

Fig 1: Installing Transponder Key Amplifier
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Align the matchmarks on the steering intermediate shaft assembly and the steering column assembly.

  Fig 2: Aligning Matchmarks On Steering Intermediate Shaft Assembly And Steering Column Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the bolt.
  Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)
INSTALL STEERING COLUMN ASSEMBLY
1. Install the steering column assembly with the bolt and 2 nuts.
  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

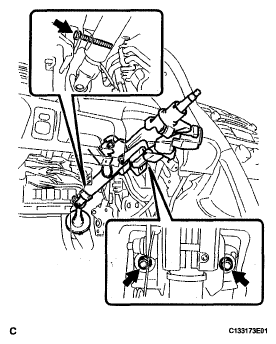

  Fig 3: Locating Steering Column Assembly Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connectors and wire harness clamps to the steering column assembly.
3. Align the matchmarks on the steering intermediate shaft assembly and the power steering link assembly.

  Fig 4: Aligning Matchmarks On Steering Intermediate Shaft Assembly And Power Steering Link Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the bolt.
  Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

  Fig 5: Locating Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the clamp to the steering column hole shield.

  Fig 6: Identifying Steering Column Hole Shield Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 AIR DUCT
1. Engage the 2 claws to install the No. 1 air duct.

  Fig 7: Identifying No. 1 Air Duct Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PLACE FRONT WHEELS FACING STRAIGHT AHEAD
INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
1. Install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly with the clamp.

  Fig 8: Locating Turn Signal Switch Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connectors to the turn signal switch assembly with spiral cable sub-assembly.
INSTALL STEERING COLUMN COVER
1. Engage the claw to install the upper steering column cover.

  Fig 9: Identifying Upper Steering Column Cover Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 claws to install the lower steering column cover.

  Fig 10: Identifying Lower Steering Column Cover Screw And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 screws.
ADJUST SPIRAL CABLE SUB- ASSEMBLY (See INSTALLATION )
INSTALL STEERING WHEEL ASSEMBLY
1. Align the matchmarks on the steering wheel assembly and steering main shaft.

  Fig 11: Aligning Matchmarks On Steering Wheel Assembly And Steering Main Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the steering wheel assembly set nut.
  Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)
3. Connect the connectors to the spiral cable sub-assembly.
INSPECT STEERING WHEEL CENTER POINT
INSTALL STEERING PAD (See INSTALLATION )
INSTALL NO. 2 LOWER STEERING WHEEL COVER (See INSTALLATION )
INSTALL NO. 3 LOWER STEERING WHEEL COVER (See INSTALLATION )
INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY (See INSTALLATION )
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made) (See INSTALLATION )
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made) (See INSTALLATION )
INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH (See INSTALLATION )
INSTALL FRONT DOOR SCUFF PLATE LH (See INSTALLATION )
INSTALL FRONT WHEEL LH
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT STEERING PAD (Refer to ON-VEHICLE INSPECTION ).
REGISTER ECU CODE
NOTICE:

When replacing the steering lock actuator assembly, perform initialization (Refer to REGISTRATION ).
INSPECT SRS WARNING LIGHT
HINT:

(See DIAGNOSIS SYSTEM )
