Steering Pad: Installation

INSTALL STEERING PAD
1. Check that the ignition switch is off.
2. Check that the battery negative (-) terminal is disconnected.
  CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.
3. Support the steering pad with one hand as shown in the illustration.
4. Connect the 2 airbag connectors to the steering pad.
  NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
5. Connect the horn connector to the steering pad.
6. Confirm that the circumference groove of the "torx" screw fits in the screw case, and place the steering pad onto the steering wheel assembly.

  Fig 1: Locating Airbag Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Using a "torx" socket wrench (T30), tighten the 2 "torx" screws.
  Torque: 8.8 N*m (90 kgf*cm, 78 in.*lbf)
INSTALL NO. 3 LOWER STEERING WHEEL COVER
1. Install the No. 3 lower steering wheel cover.

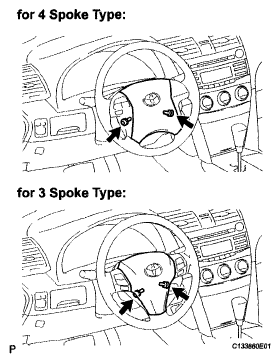

  Fig 2: Locating Torx Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

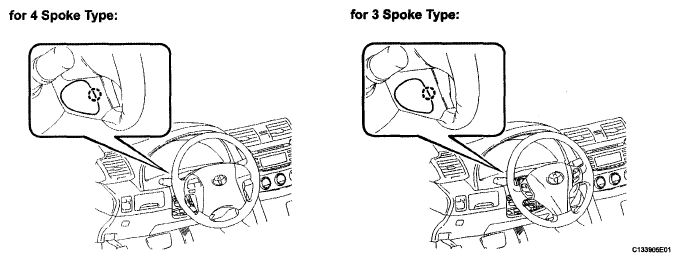

  Fig 3: Identifying No. 3 Lower Steering Wheel Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 LOWER STEERING WHEEL COVER
1. Install the No. 2 lower steering wheel cover.

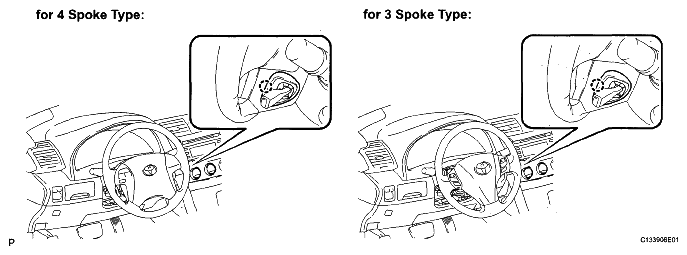

  Fig 4: Identifying No. 2 Lower Steering Wheel Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT STEERING PAD
1. With the steering pad installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the steering pad with a new one:
  Cuts, minute cracks or marked discoloration on the steering pad top surface or in the grooved portion.
2. Make sure that the horn sounds.
  HINT:

  If the horn does not sound, inspect the horn system (See PROBLEM SYMPTOMS TABLE ).

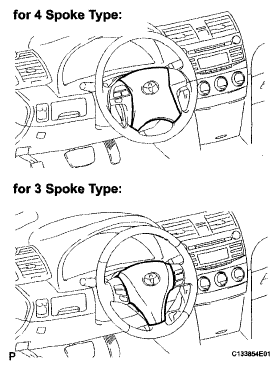

  Fig 5: Identifying Steering Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT SRS WARNING LIGHT
1. Inspect the SRS warning light (See DIAGNOSIS SYSTEM ).
