Parking Brake Pedal: Removal

  1. PRECAUTION

    (See PRECAUTION )

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working. (See PRECAUTION )
  3. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
  4. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH  (See REMOVAL )
  5. REMOVE FRONT DOOR SCUFF PLATE RH  (See REMOVAL )
  6. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH  (See REMOVAL )
  7. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made)  (See REMOVAL )
  8. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made)  (See REMOVAL )
  9. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See REMOVAL )
  10. REMOVE INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY  (See REMOVAL )
  11. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made)  (See REMOVAL )
  12. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made)  (See REMOVAL )
  13. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  (See REMOVAL )
  14. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH  (See REMOVAL )
  15. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH  (See REMOVAL )
  16. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY  (See REMOVAL )
  17. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY  (See REMOVAL )
  18. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMC Made)  (See REMOVAL )
  19. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMMK Made)  (See REMOVAL )
  20. REMOVE CONSOLE BOX POCKET  (See REMOVAL )
  21. REMOVE CONSOLE BOX CARPET  (See REMOVAL )
  22. REMOVE CONSOLE BOX ASSEMBLY (for TMC Made)  (See REMOVAL )
  23. REMOVE CONSOLE BOX ASSEMBLY (for TMMK Made)  (See REMOVAL )
  24. REMOVE NO. 2 CONSOLE BOX INSERT FRONT (for TMC Made)  (See REMOVAL )
  25. REMOVE NO. 2 CONSOLE BOX INSERT FRONT (for TMMK Made)  (See REMOVAL )
  26. REMOVE NO. 1 CONSOLE BOX INSERT FRONT (for TMC Made)  (See REMOVAL )
  27. REMOVE NO. 1 CONSOLE BOX INSERT FRONT (for TMMK Made)  (See REMOVAL )
  28. REMOVE NO. 1 CONSOLE BOX DUCT (for Automatic Air Conditioning System)  (See REMOVAL )
  29. REMOVE FLOOR CARPET BRACKET LH  (See REMOVAL )
  30. REMOVE FLOOR CARPET BRACKET RH  (See REMOVAL )
  31. REMOVE YAW RATE AND ACCELERATION SENSOR (w/ VSC)  (See REMOVAL )
  32. REMOVE FLOOR SHIFT LEVER ASSEMBLY
    1. Remove the 4 bolts and the floor shift lever assembly.
      Fig 1: Locating Floor Shift Lever Assembly Bolts
      G04978492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE CENTER AIRBAG SENSOR ASSEMBLY  (See REMOVAL )
  34. DISCONNECT NO. 4 PARKING BRAKE CABLE ASSEMBLY
    1. Using a wrench, hold the lock nut and loosen the turnbuckle.
    2. Disconnect the No. 4 parking brake cable assembly from the No. 1 parking brake cable assembly.
      Fig 2: Holding Lock Nut Using Wrench
      G04978493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE PARKING BRAKE PEDAL ASSEMBLY
    1. Using needle-nose pliers, remove the clip from the No. 1 parking brake cable assembly.
      Fig 3: Removing Clip From No. 1 Parking Brake Cable Assembly
      G04978494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, nut, and the No. 1 parking brake cable clamp.

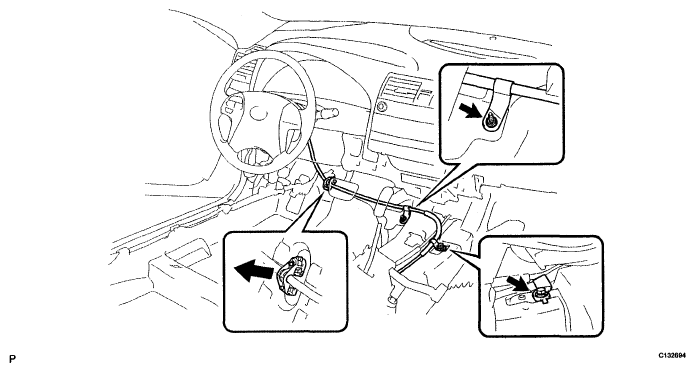

      Fig 4: Locating No. 1 Parking Brake Cable Clamp Bolt And Nut
      G04978495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Separate the No. 1 parking brake cable assembly from the body.
    4. Disconnect the parking brake switch connector.
    5. Remove the bolt, 2 nuts, and the parking brake pedal assembly with the No. 1 parking brake cable assembly from the body.
      Fig 5: Locating Parking Brake Pedal Assembly Bolt And Nuts
      G04978496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
