YAW RATE AND ACCELERATION SENSOR (w/ VSC): Removal

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  (See REMOVAL )
  3. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH  (See REMOVAL )
  4. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH  (See REMOVAL )
  5. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
  6. REMOVE UPPER CONSOLE PANEL (for Manual Transaxle)  (See REMOVAL )
  7. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transaxle)  (See REMOVAL )
  8. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
  9. REMOVE CONSOLE BOX POCKET (for Automatic Air Conditioning System)  (See REMOVAL )
  10. REMOVE CONSOLE BOX CARPET (for Automatic Air Conditioning System)  (See REMOVAL )
  11. REMOVE CONSOLE BOX ASSEMBLY (for Automatic Air Conditioning System)  (See REMOVAL )
  12. REMOVE NO. 1 CONSOLE BOX DUCT (for Automatic Air Conditioning System)  (See REMOVAL )
  13. REMOVE YAW RATE AND ACCELERATION SENSOR
    1. Disconnect the yaw rate sensor connector.
    2. Remove the 2 bolts and yaw rate sensor.
      NOTE: Do not remove the sensor from the bracket.

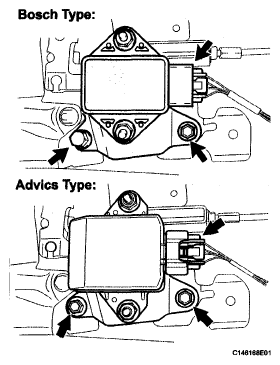

      Fig 1: Locating Yaw Rate Sensor Bolts
      G04978269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE YAW RATE AND ACCELERATION SENSOR (for BOSCH Made)
    1. Remove the 2 nuts and yaw rate sensor from the bracket.
    Fig 2: Identifying Yaw Rate Sensor With Bracket And Bolts
    G04978270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
