Parking Brake Cable: Removal

HINT:

• Use the same procedures for the No. 2 parking brake cable assembly and No. 3 parking brake cable assembly.
• The procedures listed below are for the No. 3 parking brake cable assembly.

1. PRECAUTION

   (See REMOVAL )

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Manual Seat)
   CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working. (See PRECAUTION )
3. REMOVE FRONT SEAT ASSEMBLY LH (for Manual Seat)

   HINT:

   Refer to the procedures up to "REMOVE FRONT SEAT ASSEMBLY (for Manual Seat)". (See REMOVAL )

4. REMOVE FRONT SEAT ASSEMBLY RH (for Manual Seat)

   HINT:

   Use the same procedures for the RH side and the LH side.

5. REMOVE FRONT SEAT ASSEMBLY LH (for Power Seat)

   HINT:

   Refer to the procedures up to "REMOVE FRONT SEAT ASSEMBLY (for Power Seat)". (See REMOVAL )

6. REMOVE FRONT SEAT ASSEMBLY RH (for Power Seat)

   HINT:

   Use the same procedures for the RH side and the LH side.

7. REMOVE PARKING BRAKE LEVER SUB-ASSEMBLY (for Manual Transaxle)

   HINT:

   Refer to the procedures up to "REMOVE PARKING BRAKE LEVER". (See REMOVAL )

8. REMOVE NO. 1 PARKING BRAKE CABLE ASSEMBLY (for Manual Transaxle)  (See REMOVAL )
9. REMOVE PARKING BRAKE PEDAL ASSEMBLY (for Automatic Transaxle)

   HINT:

   Refer to the procedures up to "REMOVE PARKING BRAKE PEDAL". (See REMOVAL )

10. REMOVE NO. 1 PARKING BRAKE CABLE ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
11. REMOVE LUGGAGE DOOR LOCK OPEN LEVER SUB-ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
12. REMOVE FRONT FLOOR CARPET ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
13. REMOVE CROSS MEMBER FLOOR NO. 4 REINFORCEMENT SUB-ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
14. SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY (for Automatic Transaxle)
    1. Separate the No. 3 parking brake cable assembly from the parking brake equalizer.
       Fig 1: Locating No. 3 Parking Brake Cable Assembly

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. SEPARATE NO. 2 PARKING BRAKE CABLE ASSEMBLY (for Automatic Transaxle)
    1. Separate the No. 2 parking brake cable assembly from the parking brake equalizer.
       Fig 2: Locating No. 2 Parking Brake Cable Assembly

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. REMOVE NO. 4 PARKING BRAKE CABLE ASSEMBLY (for Automatic Transaxle)
    1. Slide the rubber boot as shown in the illustration.
       Fig 3: Sliding Rubber Boot

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 4 parking brake cable assembly from the parking brake equalizer as shown in the illustration.
       Fig 4: Removing No. 4 Parking Brake Cable Assembly

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. REMOVE CENTER EXHAUST PIPE ASSEMBLY (for 2AZ-FE)  (See REMOVAL )
18. REMOVE EXHAUST TAIL PIPE ASSEMBLY (for 2GR-FE)  (See REMOVAL )
19. REMOVE EXHAUST CENTER PIPE ASSEMBLY (for 2GR-FE)  (See REMOVAL )
20. REMOVE NO. 2 FRONT FLOOR HEAT LOWER INSULATOR (for 2AZ-FE)
    1. Remove the 3 nuts and the No. 2 front floor heat lower insulator.
21. REMOVE REAR WHEEL
22. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY  (See DISASSEMBLY )
23. REMOVE REAR DISC  (See DISASSEMBLY )
    Fig 5: Locating No. 2 Front Floor Heat Lower Insulator Nuts

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
24. REMOVE PARKING BRAKE SHOE RETURN TENSION NO. 1 SPRING  (See DISASSEMBLY )
25. REMOVE PARKING BRAKE SHOE STRUT  (See DISASSEMBLY )
26. REMOVE NO. 1 PARKING BRAKE SHOE ASSEMBLY  (See DISASSEMBLY )
27. REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET  (See DISASSEMBLY )
28. REMOVE NO. 2 PARKING BRAKE SHOE ASSEMBLY  (See DISASSEMBLY )
29. REMOVE NO. 3 PARKING BRAKE CABLE ASSEMBLY
    1. Remove the 2 bolts and separate the No. 3 parking brake cable assembly from the backing plate.
       Fig 6: Locating No. 3 Parking Brake Cable Assembly Bolts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using needle-nose pliers, remove the clip from the No. 3 parking brake cable assembly.
       Fig 7: Removing Clip

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

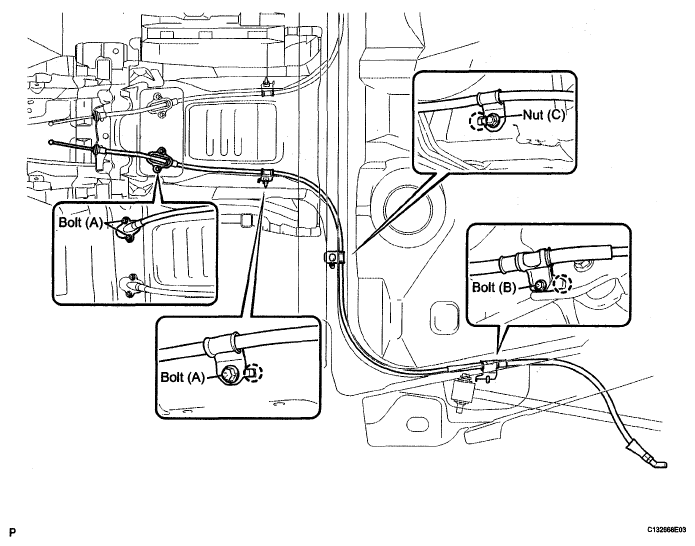

    3. Remove the 3 bolts (A), the bolt (B), and the nut (C), and disengage each claw.
       Fig 8: Locating Parking Brake Cable Assembly Bolts And Nut

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the No. 3 parking brake cable assembly from the body.
    5. Remove the parking brake cable clamp.
       Fig 9: Removing Parking Brake Cable Clamp

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
