Parking Brake Lever: Removal

  1. PRECAUTION

    (See PRECAUTION )

  2. REMOVE FRONT SEAT ASSEMBLY LH (for Manual Seat)

    HINT:

    Refer to the procedures up to "REMOVE FRONT SEAT ASSEMBLY (for Manual Seat)". (See REMOVAL )

  3. REMOVE FRONT SEAT ASSEMBLY RH (for Manual Seat)

    HINT:

    Use the same procedures for the RH side and the LH side.

  4. REMOVE FRONT SEAT ASSEMBLY LH (for Power Seat)

    HINT:

    Refer to the procedures up to "REMOVE FRONT SEAT ASSEMBLY (for Power Seat)". (See REMOVAL )

  5. REMOVE FRONT SEAT ASSEMBLY RH (for Power Seat)

    HINT:

    Use the same procedures for the RH side and the LH side.

  6. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH  (See REMOVAL )
  7. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH  (See REMOVAL )
  8. REMOVE INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY  (See REMOVAL )
  9. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made)  (See REMOVAL )
  10. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made)  (See REMOVAL )
  11. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See REMOVAL )
  12. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made)  (See REMOVAL )
  13. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made)  (See REMOVAL )
  14. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  (See REMOVAL )
  15. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH  (See REMOVAL )
  16. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH  (See REMOVAL )
  17. REMOVE UPPER CONSOLE PANEL  (See REMOVAL )
  18. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY  (See REMOVAL )
  19. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMC Made)  (See REMOVAL )
  20. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMMK Made)  (See REMOVAL )
  21. REMOVE CONSOLE BOX POCKET  (See REMOVAL )
  22. REMOVE CONSOLE BOX CARPET  (See REMOVAL )
  23. REMOVE CONSOLE BOX ASSEMBLY (for TMC Made)  (See REMOVAL )
  24. REMOVE CONSOLE BOX ASSEMBLY (for TMMK Made)  (See REMOVAL )
  25. REMOVE NO. 2 CONSOLE BOX INSERT FRONT (for TMC Made)  (See REMOVAL )
  26. REMOVE NO. 2 CONSOLE BOX INSERT FRONT (for TMMK Made)  (See REMOVAL )
  27. REMOVE NO. 1 CONSOLE BOX INSERT FRONT (for TMC Made)  (See REMOVAL )
  28. REMOVE NO. 1 CONSOLE BOX INSERT FRONT (for TMMK Made)  (See REMOVAL )
  29. REMOVE FLOOR CARPET BRACKET LH  (See REMOVAL )
  30. REMOVE FLOOR CARPET BRACKET RH  (See REMOVAL )
  31. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
  32. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  33. REMOVE REAR DOOR SCUFF PLATE LH  (See REMOVAL )
  34. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  35. REMOVE LOWER CENTER PILLAR GARNISH LH  (See REMOVAL )
  36. REMOVE FRONT DOOR SCUFF PLATE RH  (See REMOVAL )
  37. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  38. REMOVE REAR DOOR SCUFF PLATE RH  (See REMOVAL )
  39. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
  40. REMOVE LOWER CENTER PILLAR GARNISH RH  (See REMOVAL )
  41. REMOVE LUGGAGE DOOR LOCK OPEN LEVER SUB-ASSEMBLY
    1. Remove the screw.
    2. Disengage the claw and remove the luggage door open lever sub-assembly.
      Fig 1: Identifying Luggage Door Open Lever Sub-Assembly Screw And Claw
      G04978464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE FRONT FLOOR CARPET ASSEMBLY
    1. Disengage the 6 clamps and the 2 claws.

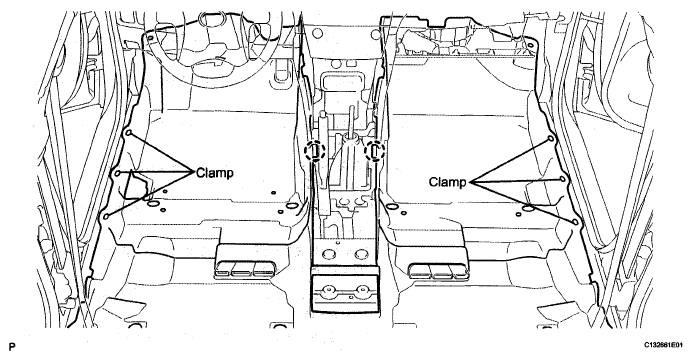

      Fig 2: Identifying Front Floor Carpet Assembly Claws And Clamps
      G04978465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn back the front floor carpet assembly until the bolts of the cross member floor No. 4 reinforcement sub-assembly can be seen.
  43. REMOVE CROSS MEMBER FLOOR NO. 4 REINFORCEMENT SUB-ASSEMBLY
    1. Remove the 8 bolts and the cross member floor No. 4 reinforcement sub-assembly.
      Fig 3: Locating Cross Member Floor No. 4 Reinforcement Sub-Assembly Bolts
      G04978466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY
    1. Separate the No. 3 parking brake cable assembly from the parking brake equalizer.
      Fig 4: Locating No. 3 Parking Brake Cable Assembly
      G04978467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. SEPARATE NO. 2 PARKING BRAKE CABLE ASSEMBLY

    Separate the No. 2 parking brake cable assembly from the parking brake equalizer.

    Fig 5: Locating No. 2 Parking Brake Cable Assembly
    G04978468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE PARKING BRAKE EQUALIZER
    1. Slide the rubber boot as shown in the illustration.
      Fig 6: Sliding Rubber Boot
      G04978469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the parking brake equalizer from the No. 1 parking brake cable assembly.
      Fig 7: Removing Parking Brake Equalizer
      G04978470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE PARKING BRAKE LEVER SUB-ASSEMBLY
    1. Disconnect the parking brake switch connector.
    2. Remove the 2 bolts, the clip, and the parking brake lever.
      Fig 8: Locating Parking Brake Lever Bolts And Clip
      G04978471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
