Radio Antenna Cord: Removal

TABLE OF BOLT, SCREW AND NUT (See REMOVAL )
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (See REMOVAL )
REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY (w/ Front Passenger Airbag)
HINT:

Refer to the procedures up to the removal of the instrument panel safety pad sub-assembly (w/ front passenger airbag) (See REMOVAL ).
REMOVE ANTENNA CORD SUB-ASSEMBLY
1. Remove the 5 clamps and antenna cord sub-assembly.

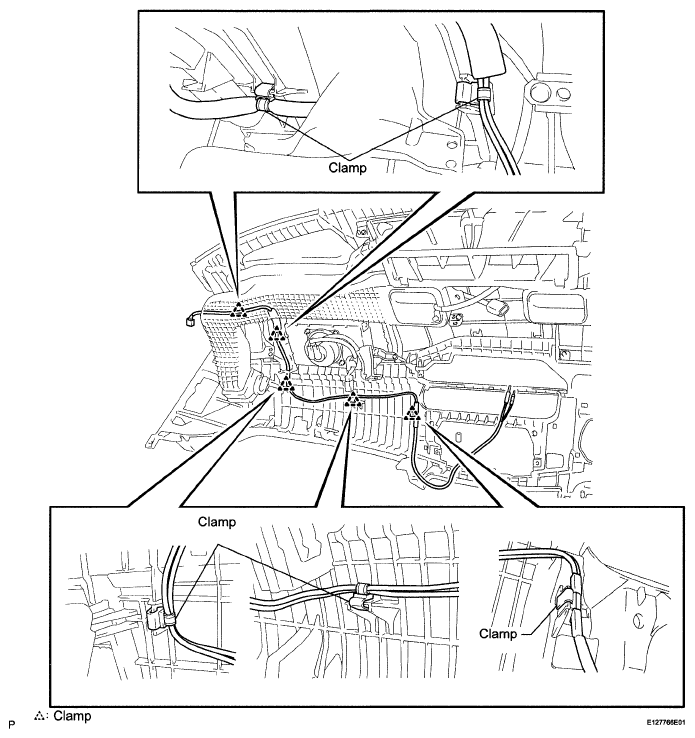

  Fig 1: Identifying Antenna Cord Sub-Assembly Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOF HEADLINING ASSEMBLY
HINT:

Refer to the procedures up to the removal of the roof headlining assembly (See REMOVAL ).
REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY
1. Remove No. 2 antenna cord sub-assembly.

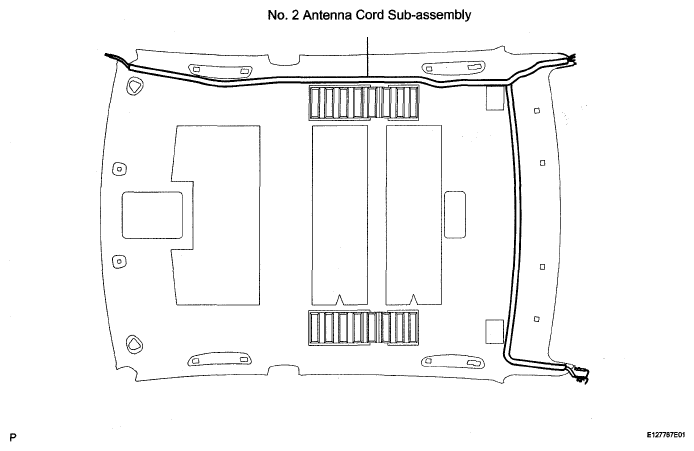

  Fig 2: Identifying No 2 Antenna Cord Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
