Center Airbag Sensor Assembly: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing (see PRECAUTION  ).
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE FRONT SEAT ASSEMBLY LH
    1. Remove the front seat assembly (see REMOVAL ).
  3. REMOVE FRONT SEAT ASSEMBLY RH
    1. Remove the front seat assembly (see REMOVAL ).
  4. REMOVE TRANSFER SHIFT LEVER
  5. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (See  REMOVAL  )
  6. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY
  7. REMOVE FRONT CONSOLE BOX (See  REMOVAL  )
  8. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER LOWER (See  REMOVAL  )
  9. REMOVE CENTER AIRBAG SENSOR ASSEMBLY
    1. Disconnect the airbag sensor connectors.
    2. Remove the 3 bolts and airbag sensor.

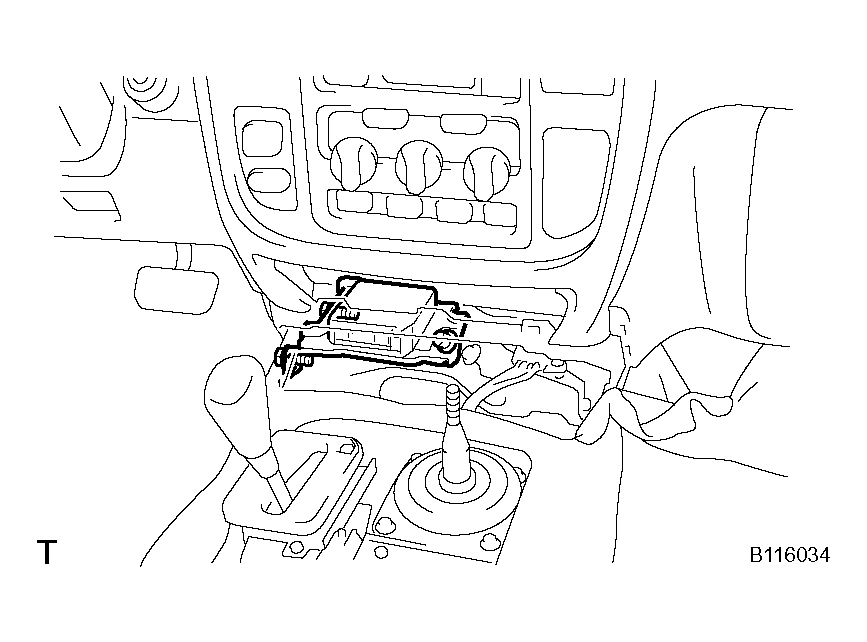

      Fig 1: Identifying Center Airbag Sensor Assembly
      G04438343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
