Instrument Panel Safety Pad: Removal
WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
- SHIP MODE SETTING (w/CD Changer Built in Audio System)
- Take out all CDs.NOTE: If they cannot be taken out, do not attempt to take them out forcibly. Send the unit for repair.
- Turn the ignition switch to ACC while pressing the "SEEK UP" and "DISC" switches at the same time.
HINT:
When the ship mode is set, "SHIP" must be displayed.
- Turn the ignition switch to OFF, and disconnect the negative battery cable.NOTE: Connecting the negative battery cable automatically finishes the ship mode.
- Take out all CDs.
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

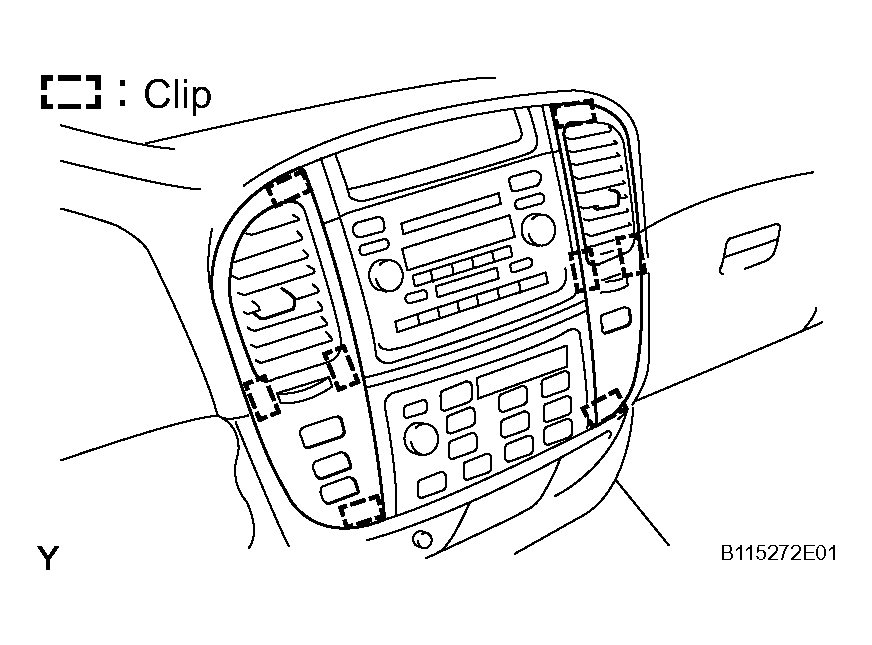

- REMOVE INSTRUMENT PANEL REGISTER ASSEMBLY
- Using a molding remover, detach the 8 clips and remove the 2 registers.

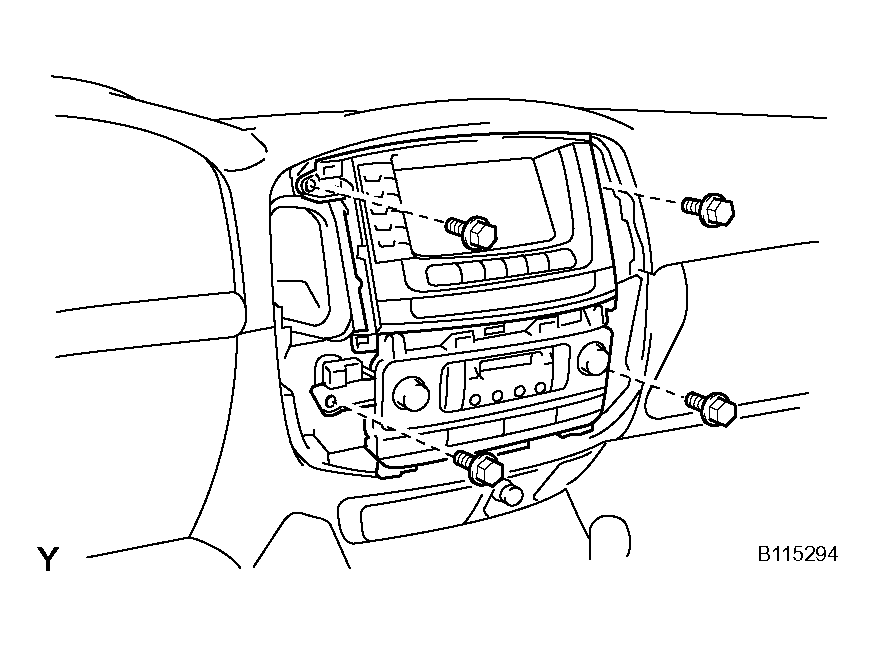

- REMOVE RADIO WITH AIR CONDITIONING CONTROL ASSEMBLY
- Remove the 4 bolts.
- Disconnect the radio with air conditioning control assembly cable, and remove the radio with air conditioning control assembly and the connector.
- SHIP MODE CONFIRMATION (w/CD Changer Built in Audio System)
- Check that a metal can be seen from the hole marked "SHIP" on the back of the radio with air conditioning control assembly.NOTE: If the metal part cannot be seen from the hole on the back of the air conditioner control assembly, repeat "SHIP MODE".
- Check that a metal can be seen from the hole marked "SHIP" on the back of the radio with air conditioning control assembly.
- REMOVE FRONT DOOR SCUFF PLATE RH
- REMOVE FRONT DOOR SCUFF PLATE LH
- REMOVE COWL SIDE TRIM BOARD RH
- REMOVE COWL SIDE TRIM BOARD LH
- REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
- REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
- REMOVE FRONT PILLAR GARNISH RH
- Using a screwdriver, remove the 2 assist grip plugs, then remove the 2 screws and the assist grip.
HINT:
Tape the screwdriver tip before use.
- Using a screwdriver, remove the garnish.
HINT:
Tape the screwdriver tip before use.
- Using a screwdriver, remove the 2 assist grip plugs, then remove the 2 screws and the assist grip.
- REMOVE FRONT PILLAR GARNISH LH
HINT:
Use the same procedures described for the RH side.
- REMOVE STEERING PAD ASSEMBLY (See REMOVAL )
- REMOVE STEERING WHEEL ASSEMBLY (See REMOVAL )

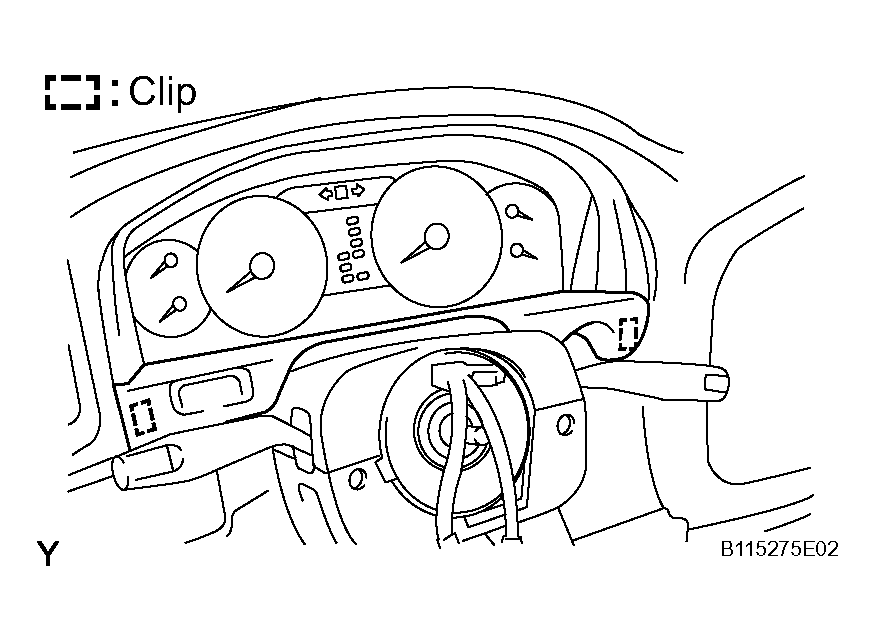

- REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
- Using a screwdriver, detach the 2 clips and remove the finish panel, and then disconnect the connectors.
HINT:
Tape the screwdriver tip before use.
- Using a screwdriver, detach the 2 clips and remove the finish panel, and then disconnect the connectors.
- REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
- Remove the 2 screws and control cable.
- REMOVE FUEL LID OPEN LEVER SUB-ASSEMBLY
- Remove the 2 screws and control cable lever.

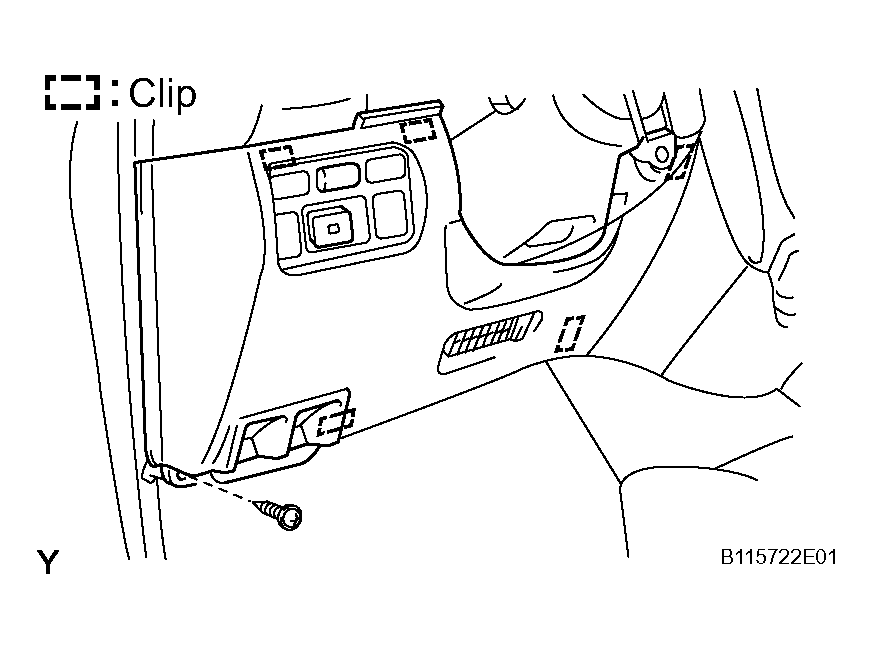

- REMOVE NO. 1 LOWER PANEL
- Remove the screw.
- Using a screwdriver, detach the 5 clips and remove the No. 1 lower panel, and then disconnect the connectors.
HINT:
Tape the screwdriver tip before use.
- REMOVE LH LOWER PANEL
- Remove the 3 bolts and the LH lower panel.
- REMOVE STEERING COLUMN COVER
- Remove the 3 screws and column cover.
- REMOVE COMBINATION SWITCH ASSEMBLY
- Disconnect the connectors.
- Remove the clamp.

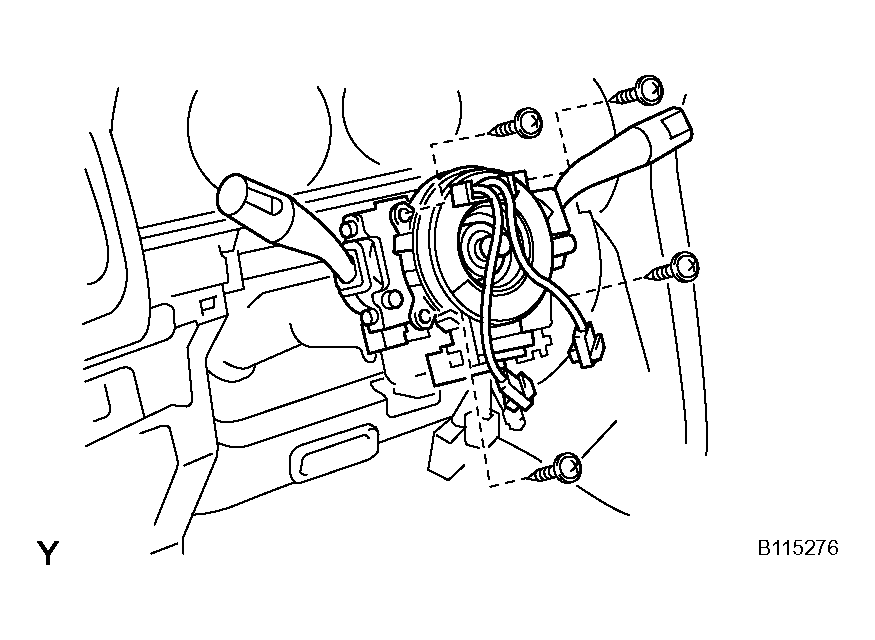

- Remove the 4 screws and combination switch.
- REMOVE NO. 2 HEATER TO REGISTER DUCT
- Disconnect the connector, and remove the screw and the No. 1 transceiver finish plate assembly.
- Remove the screw and the No. 2 heater to register duct.

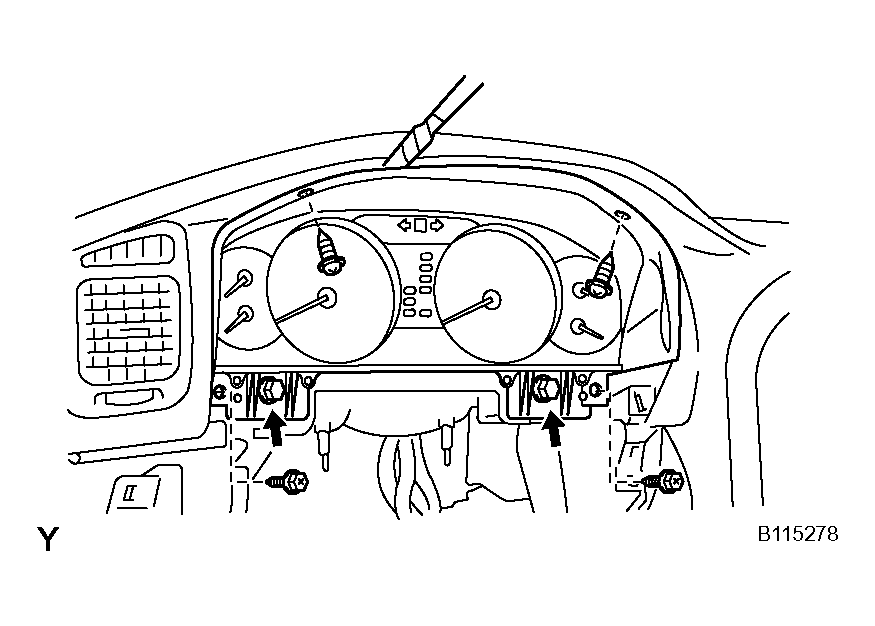

- REMOVE COMBINATION METER
- Disconnect the connectors.
HINT:
The connectors can be disconnected by loosening the bolts.
- Remove the 4 screws.
- Using a screwdriver, remove the combination meter.
HINT:
Tape the screwdriver tip before use.
- Disconnect the connectors.
- REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
- Remove the 2 screws.
- Remove the glove compartment door, then disconnect the glove compartment door damper clip.

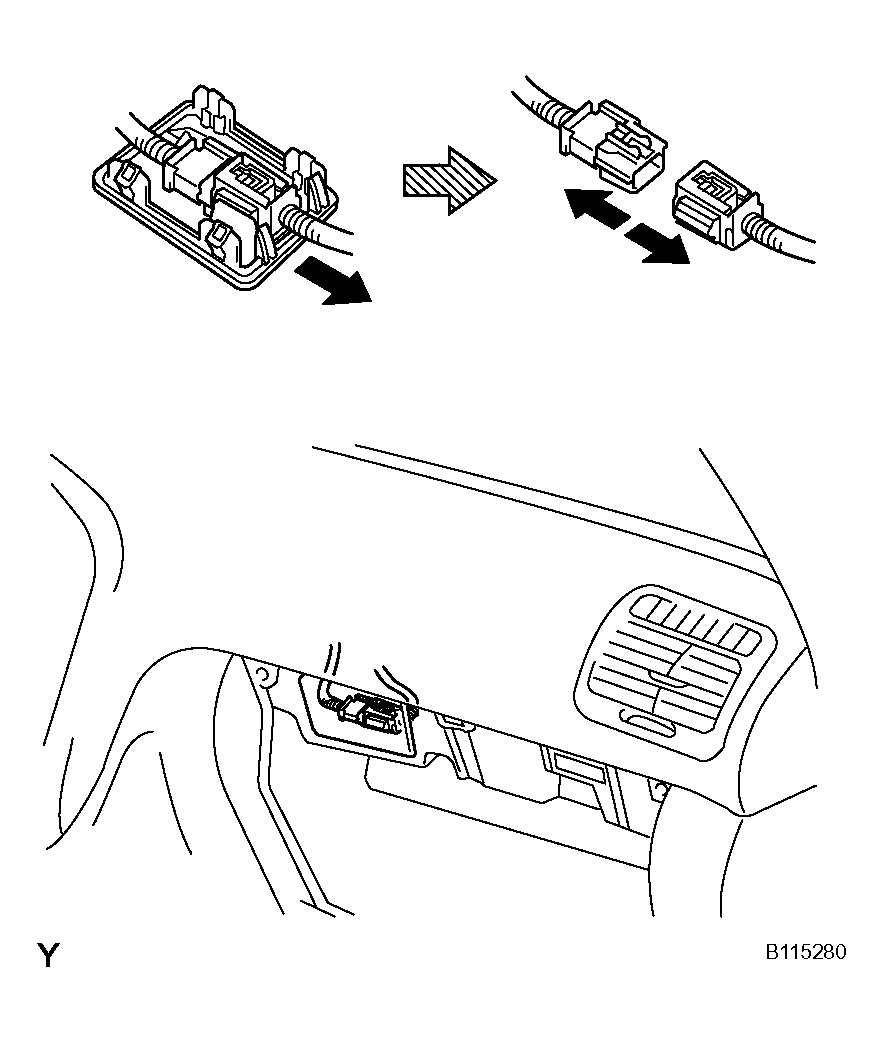

- DISCONNECT AIRBAG CONNECTOR
- Using a screwdriver, remove the No. 1 under cover.
HINT:
Tape the screwdriver tip before use.
- Slide the airbag connector to pull it out from the No. 1 under cover.
- Disconnect the airbag connector.NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
- Using a screwdriver, remove the No. 1 under cover.
- REMOVE INSTRUMENT PANEL FINISH PANEL LH LOWER
- Remove the 3 screws and the finish panel.
- REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
- Remove the transfer shift lever knob.
- Using a screwdriver, detach the 6 clips and remove the upper console panel.
HINT:
Tape the screwdriver tip before use.
- REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY
- Remove the rear console cup holder box.
- Remove the 2 screws.
- Using a screwdriver, detach the 2 clips and remove the end panel.
HINT:
Tape the screwdriver tip before use.
- REMOVE REAR RADIO CONTROL PANEL
- Disconnect the connector.
- Remove the 3 screws and the control panel.

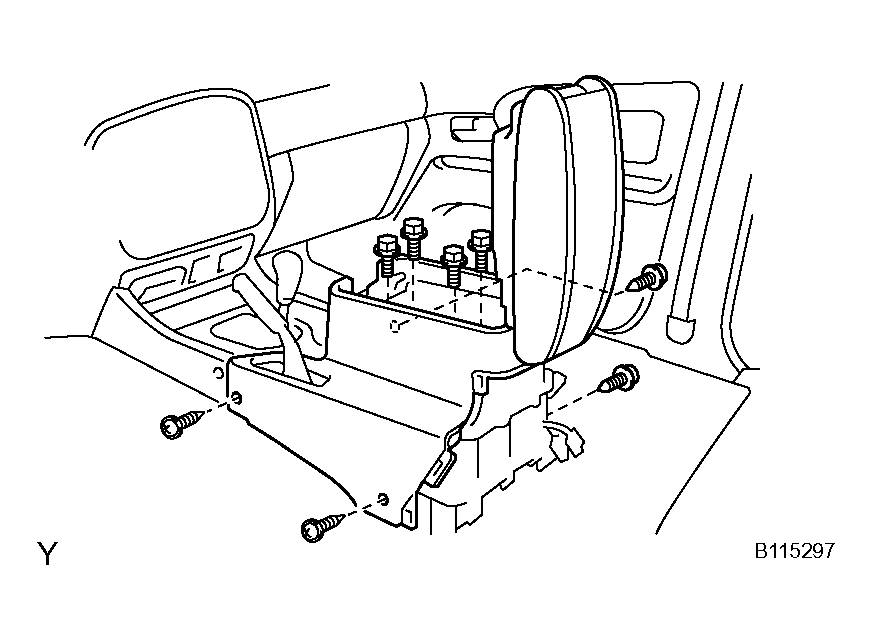

- REMOVE REAR CONSOLE BOX SUB-ASSEMBLY (w/o Disc Player Changer)
- Remove the 4 bolts, 4 screws and console box.

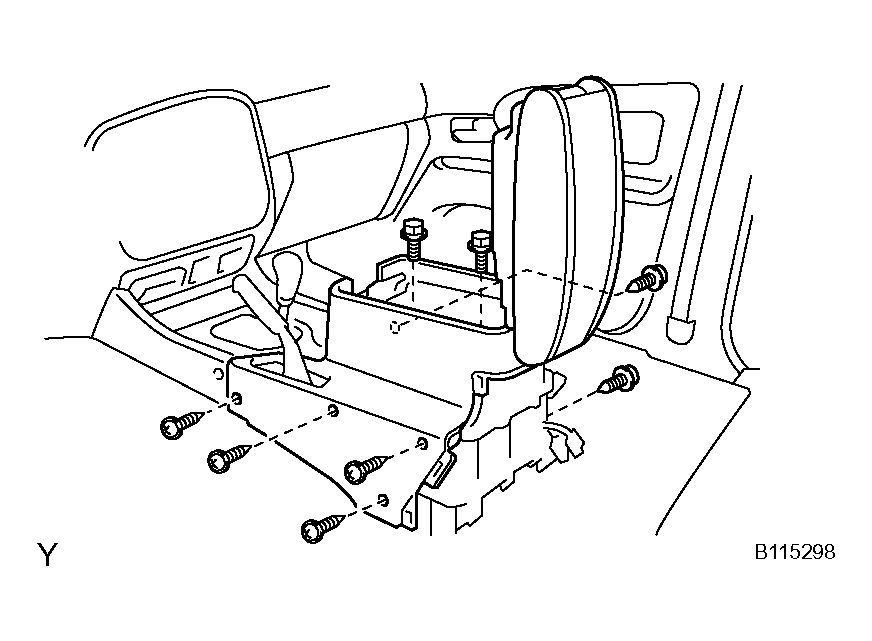

- REMOVE REAR CONSOLE BOX SUB-ASSEMBLY (w/Disc Player Changer)
- Remove the 2 bolts, 6 screws and console box.
- REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER LOWER
- Using a screwdriver, detach the 5 clips and remove the cluster finish panel, then disconnect the connectors.
HINT:
Tape the screwdriver tip before use.
- Using a screwdriver, detach the 5 clips and remove the cluster finish panel, then disconnect the connectors.
- REMOVE FRONT ASH RECEPTACLE RETAINER
- Remove the ash receptacle box.
- Remove the 2 screws and ash receptacle retainer.
- REMOVE FRONT CONSOLE BOX

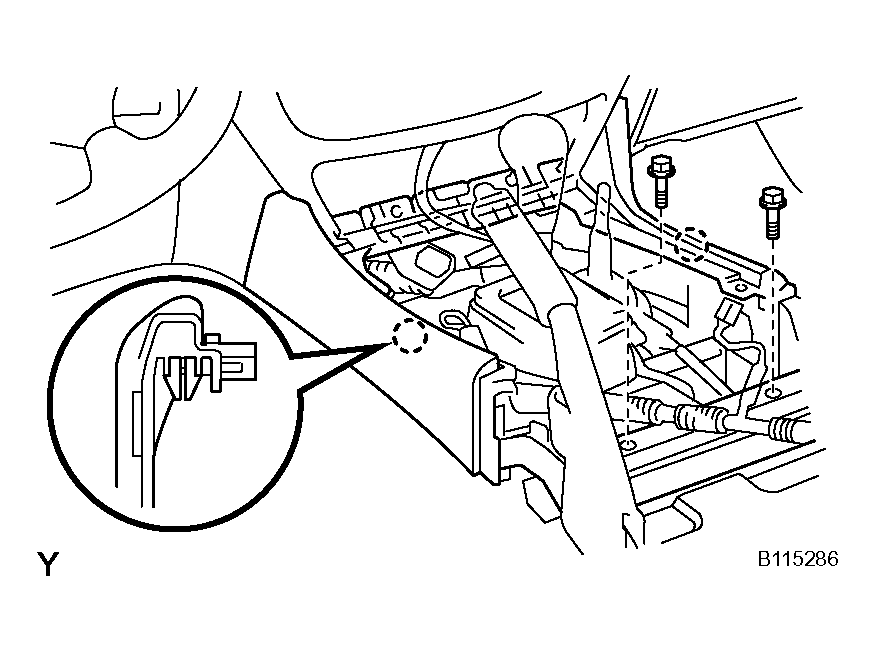

- Remove the 2 bolts, console box and No. 4 console box mounting bracket.
- REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
- Disconnect the junction connectors.
HINT:
The connectors can be disconnected by loosening the bolts.

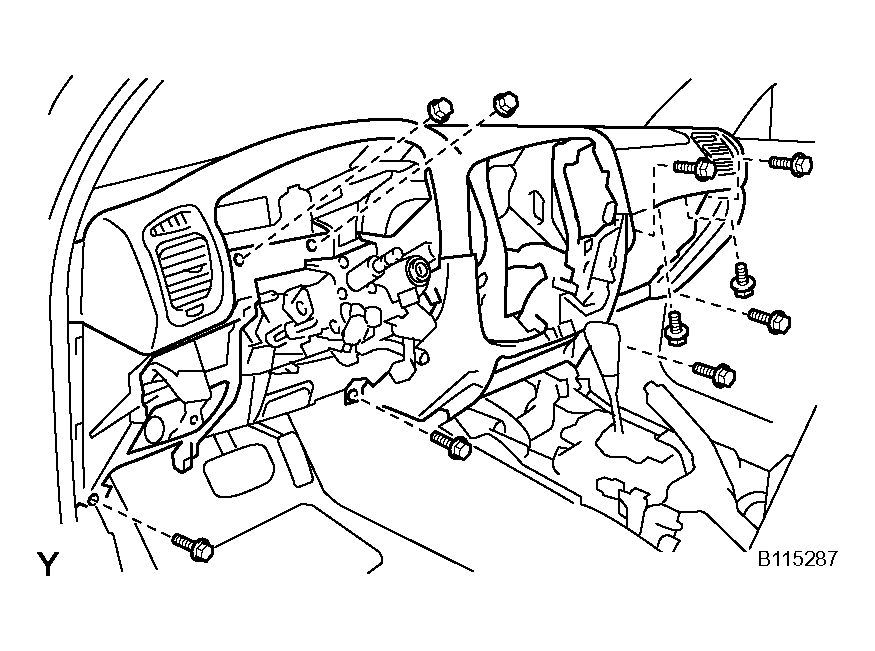

- Disconnect the connectors, then remove the 8 bolts, 2 nuts and instrument panel.
- Remove the screw and No. 2 transceiver finish plate assembly.
- Disconnect the junction connectors.
- REMOVE ECM
- REMOVE NO. 3 HEATER TO REGISTER DUCT
- REMOVE NO. 4 HEATER TO REGISTER DUCT
- REMOVE GLOVE COMPARTMENT DOOR DAMPER
- REMOVE INSTRUMENT PANEL TO FLOOR BRACE SUB-ASSEMBLY
- REMOVE NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY
- REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY
