Oil Pump: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE ENGINE AND TRANSMISSION ASSEMBLY
1. Remove the engine and transmission (see REMOVAL )
REMOVE TIMING BELT
1. Remove the timing belt (see REMOVAL ).
REMOVE CRANKSHAFT TIMING PULLEY (See DISASSEMBLY )
REMOVE OIL DIPSTICK GUIDE
1. Remove the bolt and dipstick guide.
2. Pull out the dipstick guide together with the dipstick from the No. 1 oil pan.
3. Pull the O-ring from the dipstick guide.
Fig 1: Removing Oil Dipstick Guide
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OIL FILTER BRACKET SUB-ASSEMBLY
1. Disconnect the oil pressure switch connector.
2. Disconnect the oil cooler hose from the oil cooler.
3. Remove the 2 bolts, nut, compressor stay, oil cooler and filter bracket assembly.
4. Remove the gasket from the filter bracket.
REMOVE CRANKSHAFT POSITION SENSOR (See REMOVAL )
REMOVE NO. 2 OIL PAN SUB-ASSEMBLY
1. Remove the 20 bolts and 2 nuts.
2. Insert the blade of SST between the No. 1 and No. 2 oil pans, cut off applied sealer and remove the No. 2 oil pan.
  SST 09032-00100

  NOTE: Be careful not to damage the contact surfaces of the oil pans.

  Fig 2: Removing No. 2 Oil Pan Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OIL PAN BAFFLE PLATE
1. Remove the 4 bolts, 2 nuts and baffle plate.

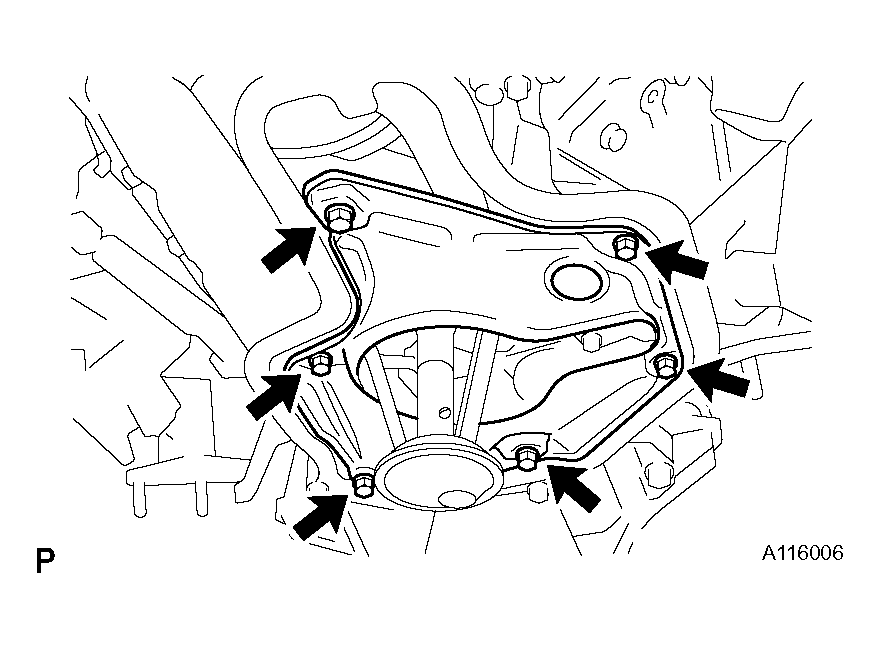

  Fig 3: Removing Baffle Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 OIL PAN SUB-ASSEMBLY
1. Remove the 18 bolts, 2 nuts and oil pan.

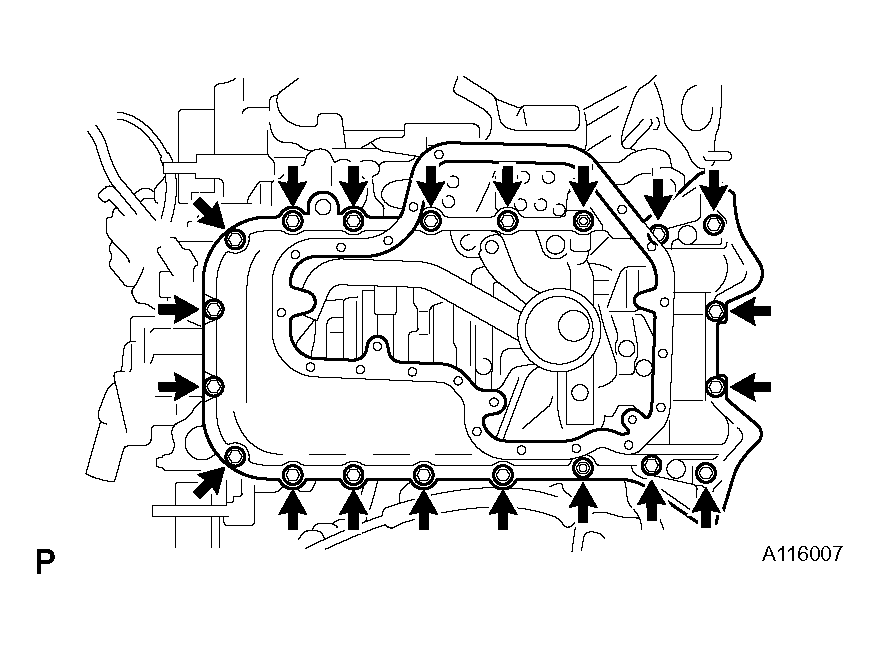

  Fig 4: Removing Oil Pan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, remove the oil pan by prying the areas between the cylinder block and oil pan shown in Fig 5 .
  NOTE: Be careful not to damage the contact surfaces of the cylinder block and oil pan.

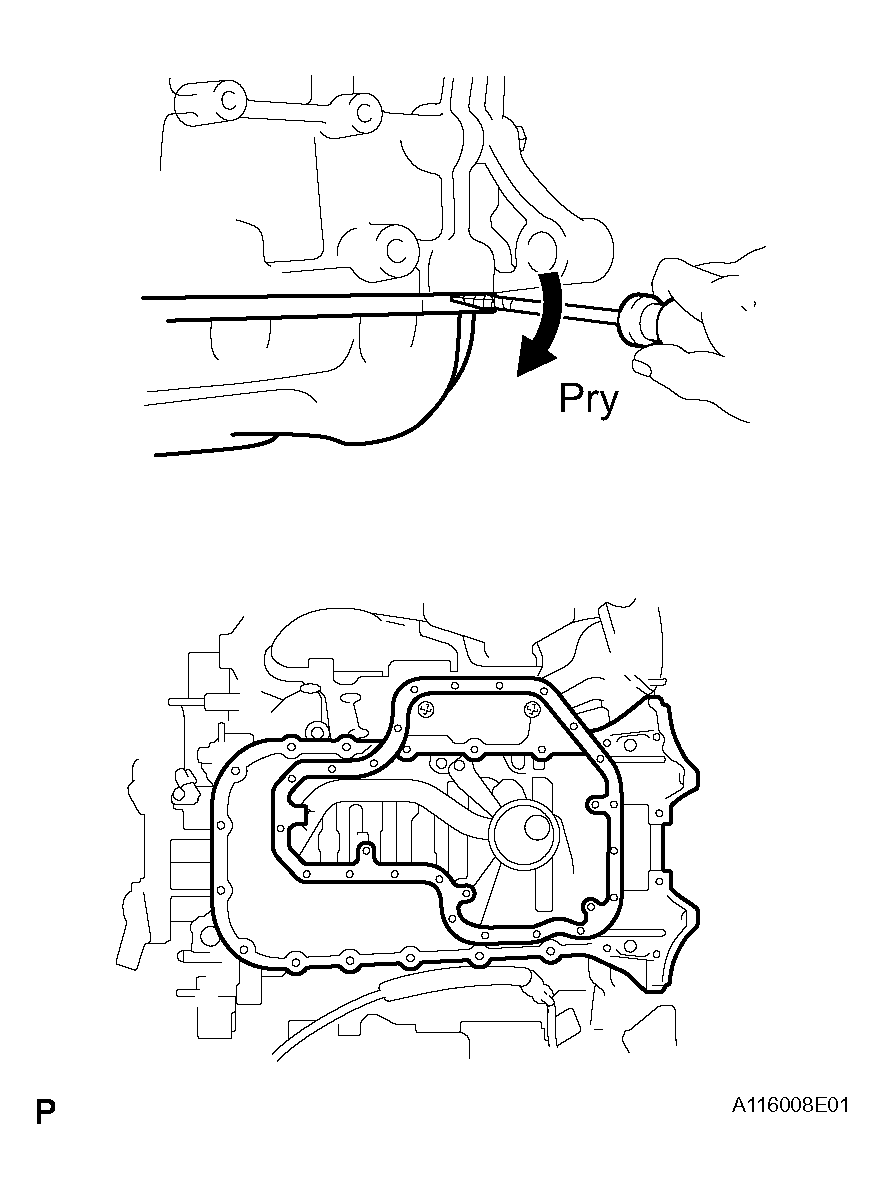

  Fig 5: Prying Areas Between Cylinder Block & Oil Pan Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OIL STRAINER SUB-ASSEMBLY
1. Remove the 2 bolts, 2 nuts, oil strainer and gasket.

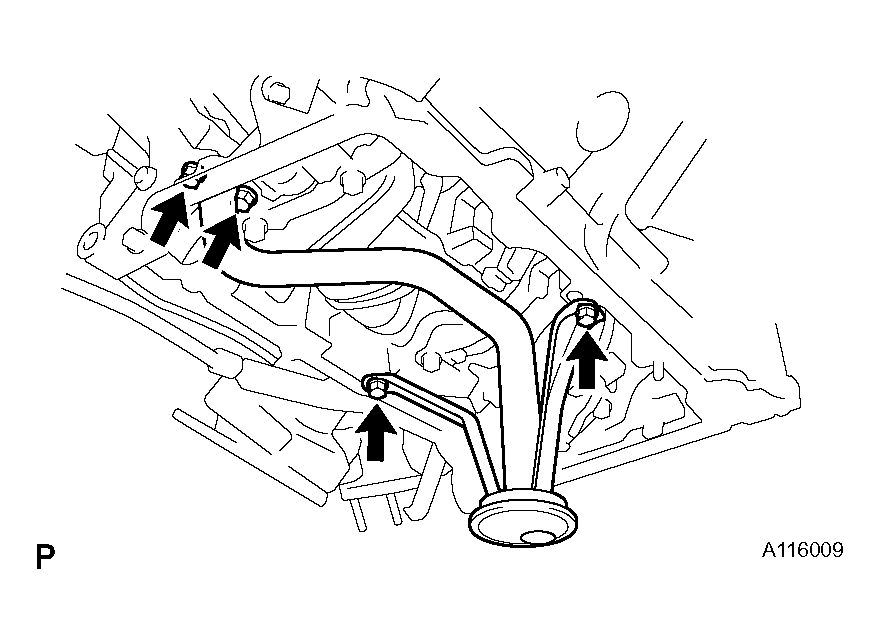

  Fig 6: Removing Oil Strainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OIL PUMP ASSEMBLY
1. Remove the 8 bolts.
  HINT:

  Use a 6 mm hexagon wrench for the hexagon head bolt.

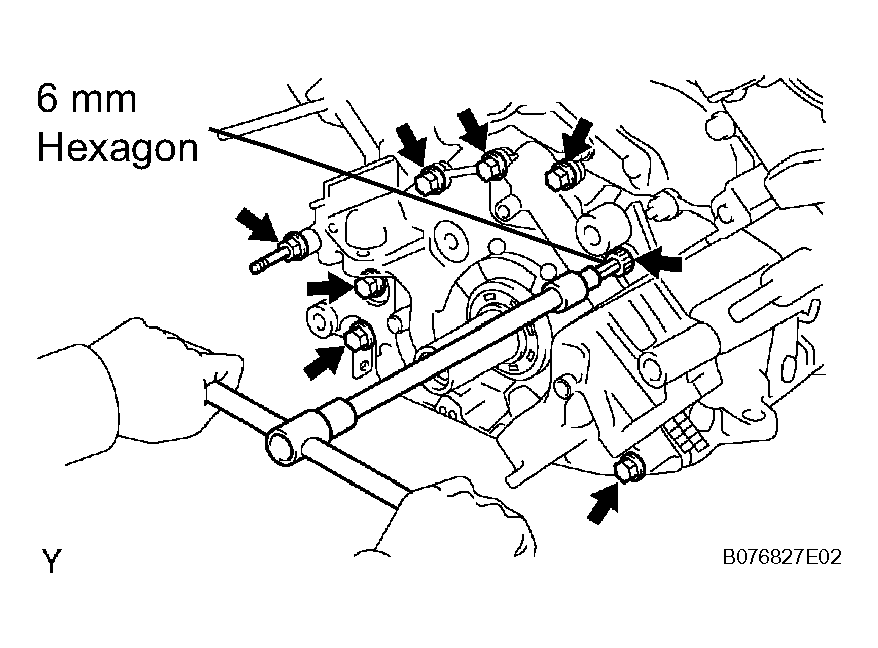

  Fig 7: Removing Oil Pump Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, remove the oil pump by prying the areas between the oil pump and cylinder block shown in Fig 8 .
  NOTE: Be careful not to damage the contact surface of the cylinder block and oil pump.
3. Remove the O-ring from the cylinder block.

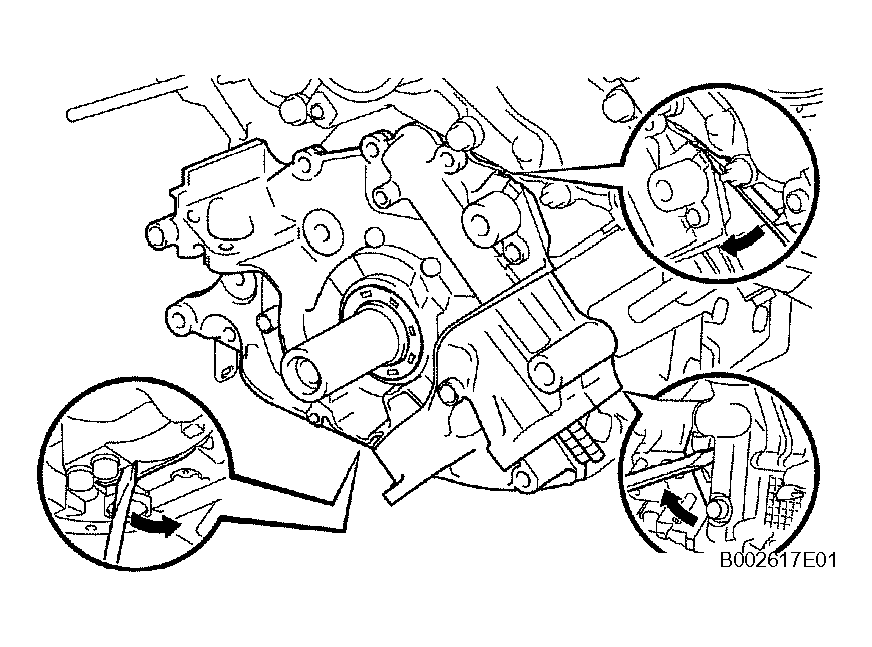

  Fig 8: Prying Areas Between Oil Pump & Cylinder Block Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
