Timing Belt: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag activation.
REMOVE ENGINE REAR UNDER COVER
1. Remove the 8 bolts and engine under cover.
REMOVE NO. 1 ENGINE UNDER COVER
1. Remove the 5 bolts and engine under cover.
DRAIN ENGINE COOLANT (See REPLACEMENT )
REMOVE V-BANK COVER (See REMOVAL )
REMOVE AIR CLEANER HOSE ASSEMBLY (See REMOVAL )
REMOVE AIR CLEANER ASSEMBLY
1. Disconnect the MAF meter connector.
2. Remove the air cleaner cap and air cleaner element.
3. Remove the 3 bolts and air cleaner case assembly.
DISCONNECT NO. 1 RADIATOR HOSE (See REMOVAL )
DISCONNECT NO. 2 RADIATOR HOSE (See REMOVAL )
DISCONNECT NO. 1 OIL COOLER INLET TUBE (See REMOVAL )
DISCONNECT NO. 1 OIL COOLER OUTLET TUBE (See REMOVAL )
REMOVE DRIVE BELT (See REMOVAL )
REMOVE RADIATOR ASSEMBLY (See REMOVAL )
DISCONNECT VANE PUMP ASSEMBLY (See REMOVAL )
REMOVE GENERATOR ASSEMBLY (See REMOVAL )
DISCONNECT COMPRESSOR ASSEMBLY (See REMOVAL )
REMOVE NO. 3 TIMING BELT COVER SUB-ASSEMBLY RH
1. Remove the cap nut, 3 bolts, timing belt cover and gasket.

  Fig 1: Removing No. 3 Timing Belt Cover Sub-Assembly RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

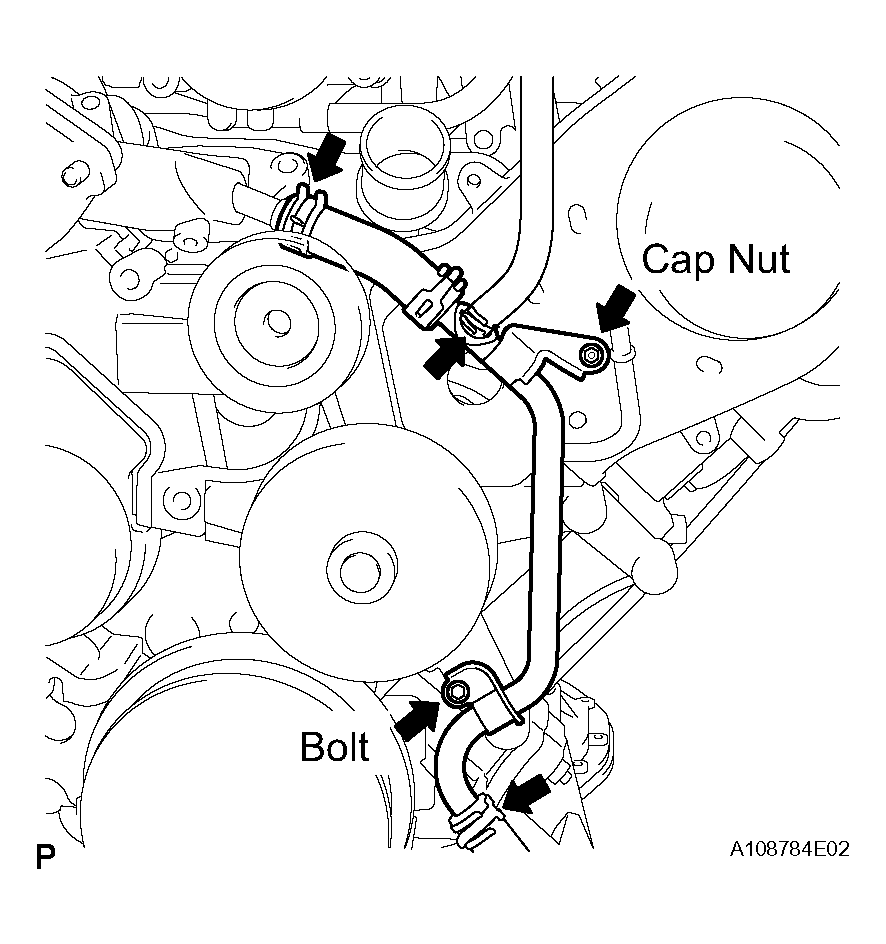

REMOVE OIL COOLER PIPE
1. Remove the cap nut and bolt.
2. Disconnect the oil cooler pipe from the timing belt cover.
3. Disconnect the 3 water by-pass hoses from the oil cooler pipe.

  Fig 2: Disconnecting Water By-Pass Hoses From Oil Cooler Pipe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

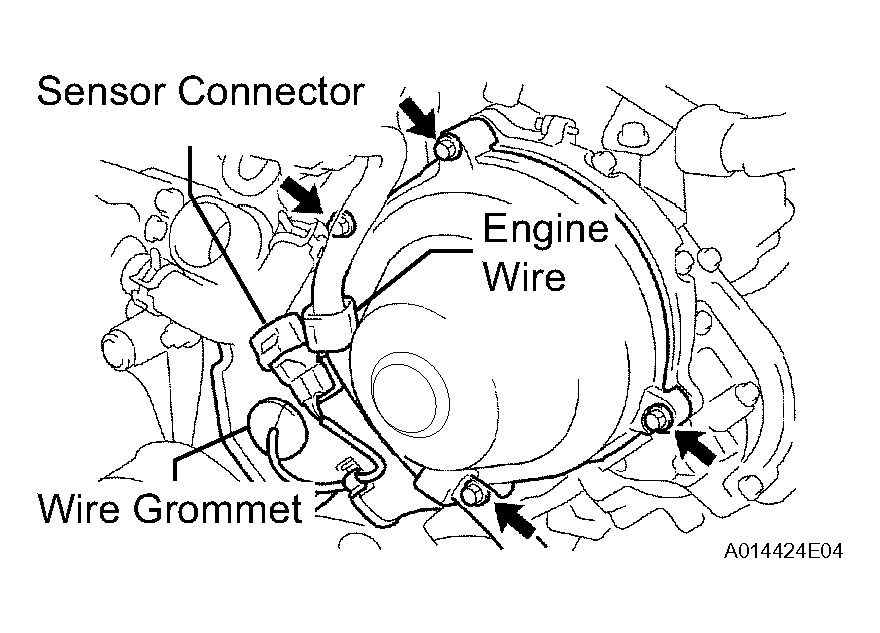

REMOVE NO. 3 TIMING BELT COVER SUB-ASSEMBLY LH
1. Disconnect the engine wire from the 2 wire clamps.
2. Disconnect the camshaft position sensor connector.
3. Disconnect the camshaft position sensor wire from the wire clamp on the timing belt cover.
4. Remove the wire grommet from the timing belt cover.
5. Remove the 4 bolts.
6. Disconnect the timing belt cover from the timing plate and camshaft bearing cap.
7. Disconnect the wire clamp for the sensor from the timing belt cover.
8. Remove the connector holder from the sensor connector.
9. Remove the timing belt cover.

  Fig 3: Removing No. 3 Timing Belt Cover Sub-Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY
1. Remove the pulley bolt, cover plate and idler pulley.

  Fig 4: Removing No. 2 Idler Pulley Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

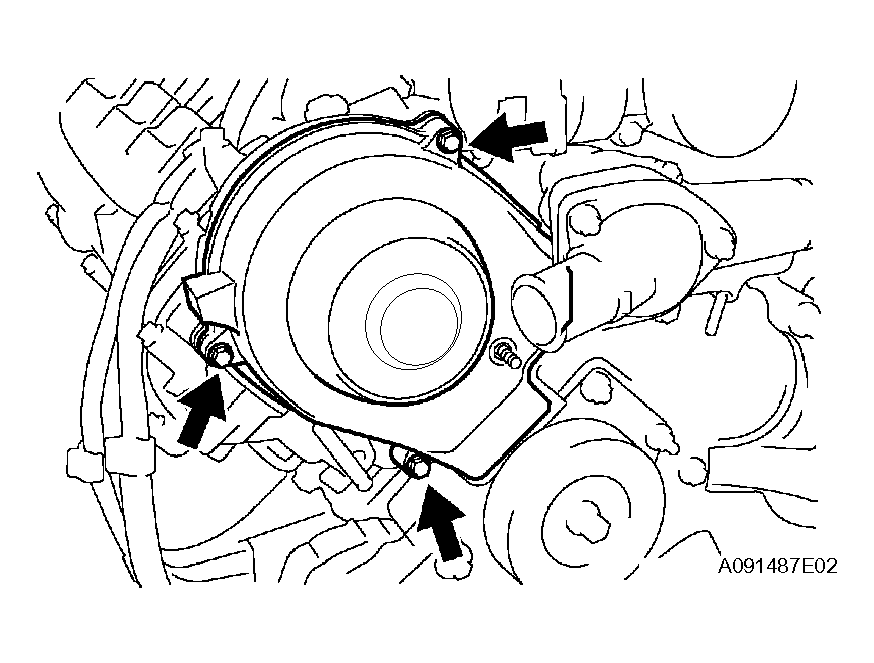

REMOVE NO. 2 TIMING BELT COVER SUB-ASSEMBLY
1. Remove the 2 bolts and timing belt cover.

  Fig 5: Removing No. 2 Timing Belt Cover Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

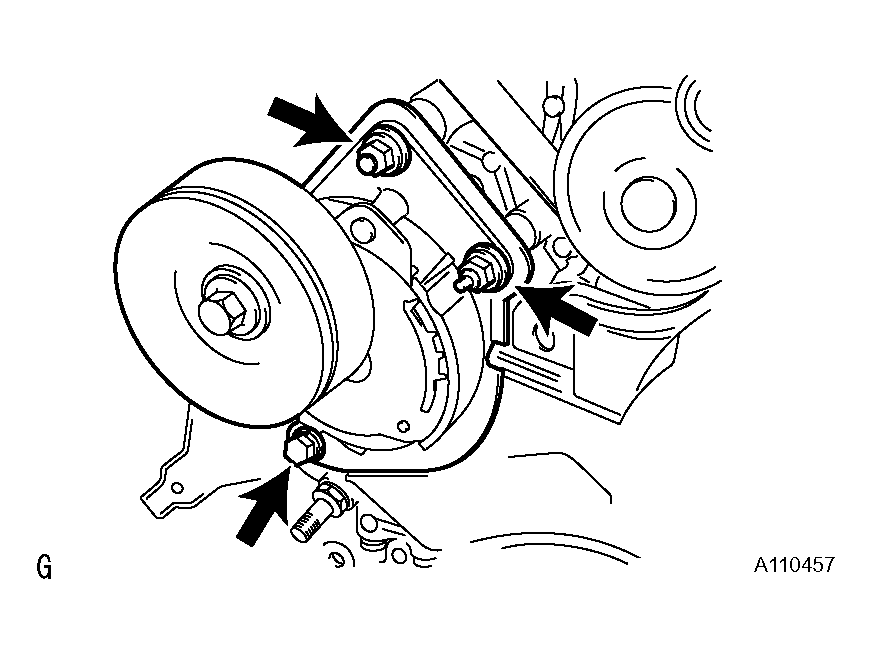

REMOVE DRIVE BELT TENSIONER ASSEMBLY
1. Remove the bolt, 2 nuts and belt tensioner.

  Fig 6: Removing Drive Belt Tensioner Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

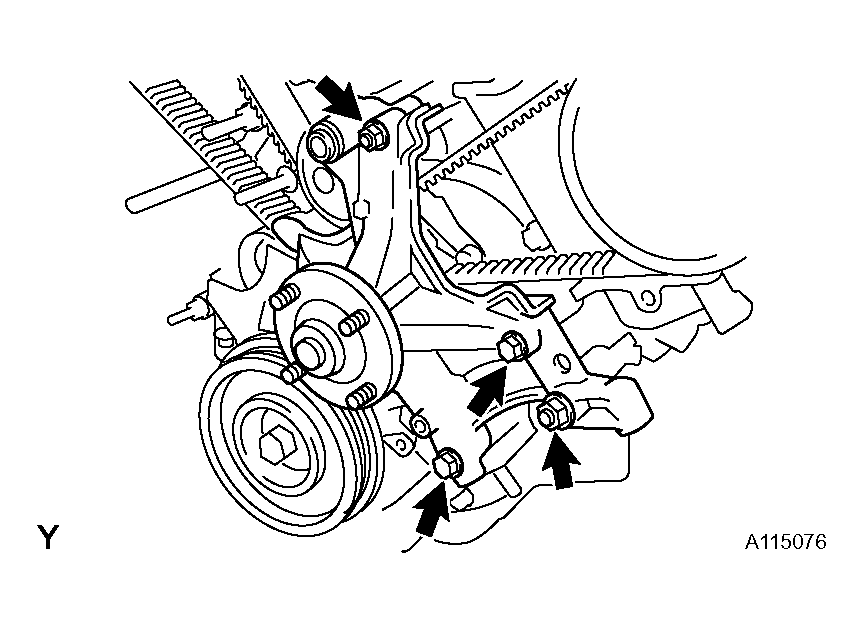

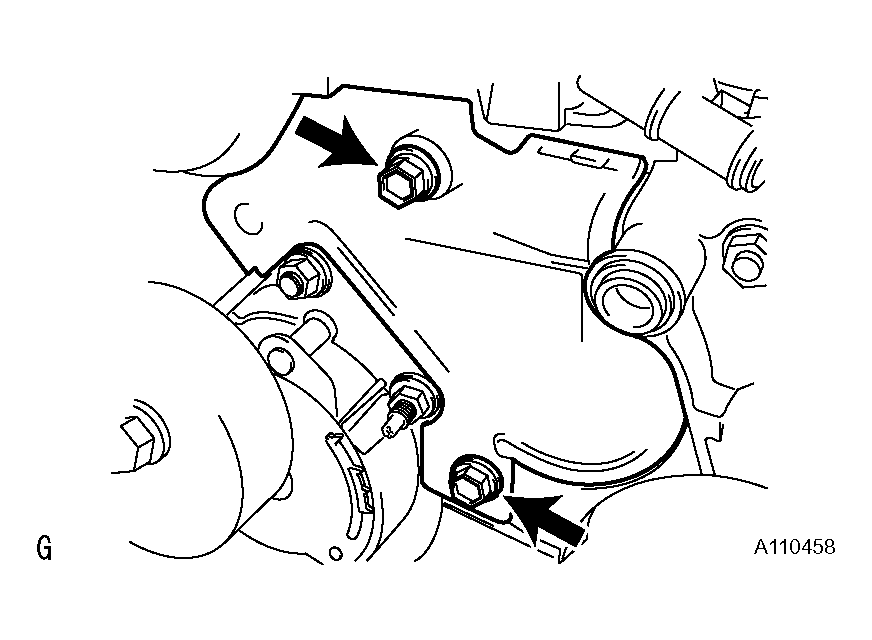

REMOVE IDLER PULLEY ASSEMBLY
1. Remove the 2 bolts, 2 nuts and idler pulley.

  Fig 7: Removing Idler Pulley Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CRANKSHAFT DAMPER SUB-ASSEMBLY

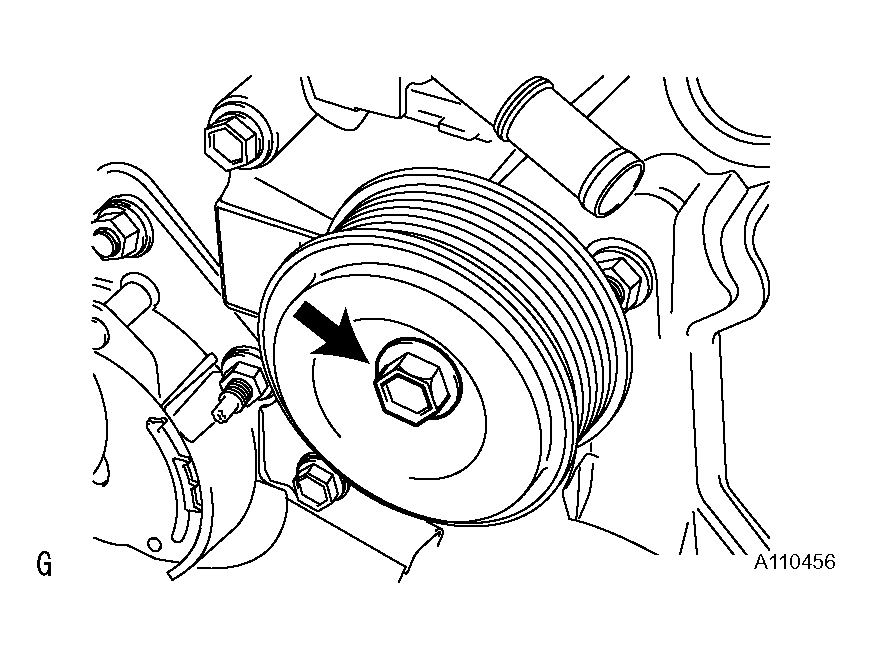

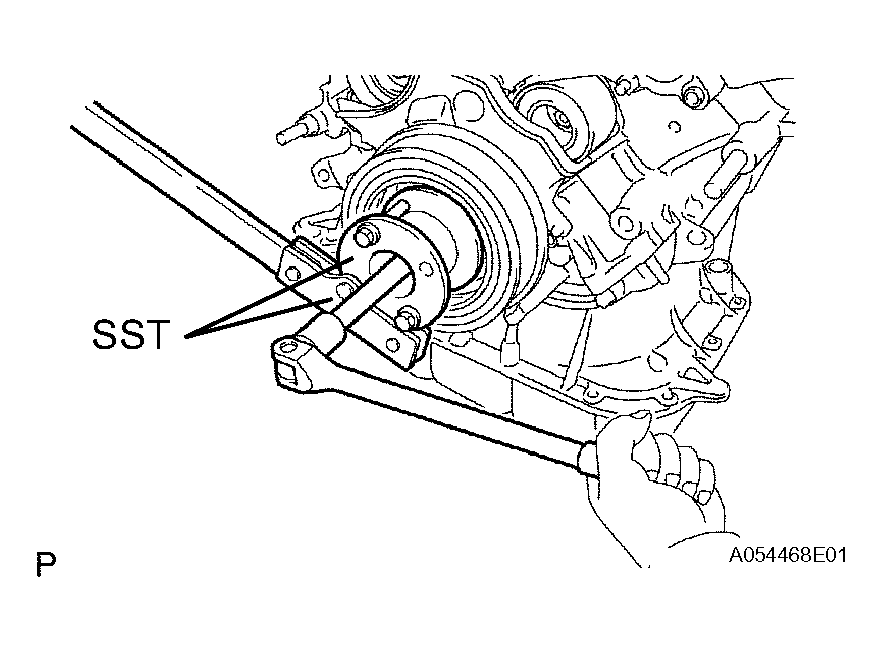

1. Using SST, remove the damper bolt.
  SST 09213-70011 (09213-70020), 09330-00021

  Fig 8: Removing Damper Bolt Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

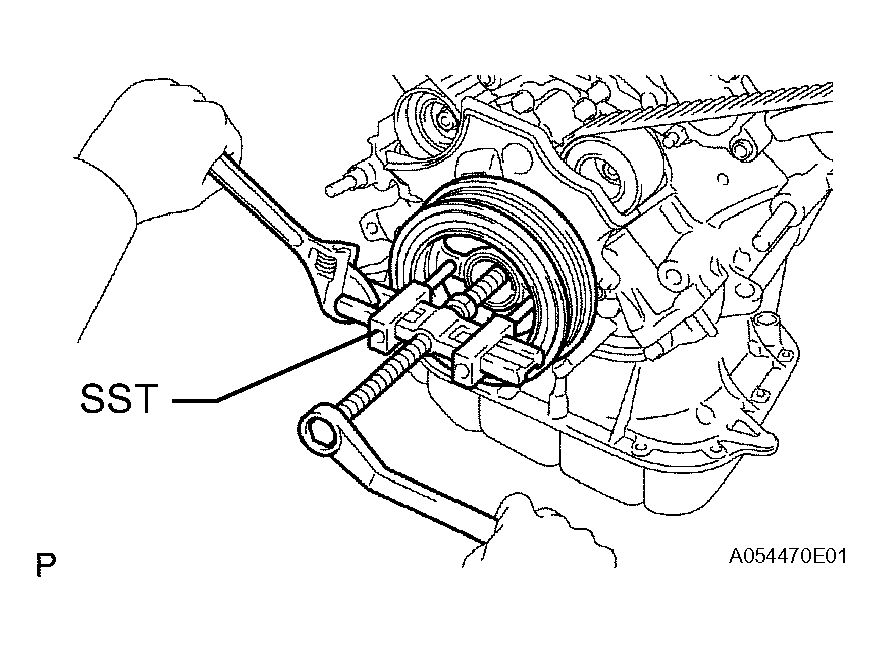

2. Using SST, remove the damper.
  SST 09950-50013 (09951-05010, 09952-05010, 09953-05010, 09953-05020, 09954-05021)

  Fig 9: Removing Damper Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

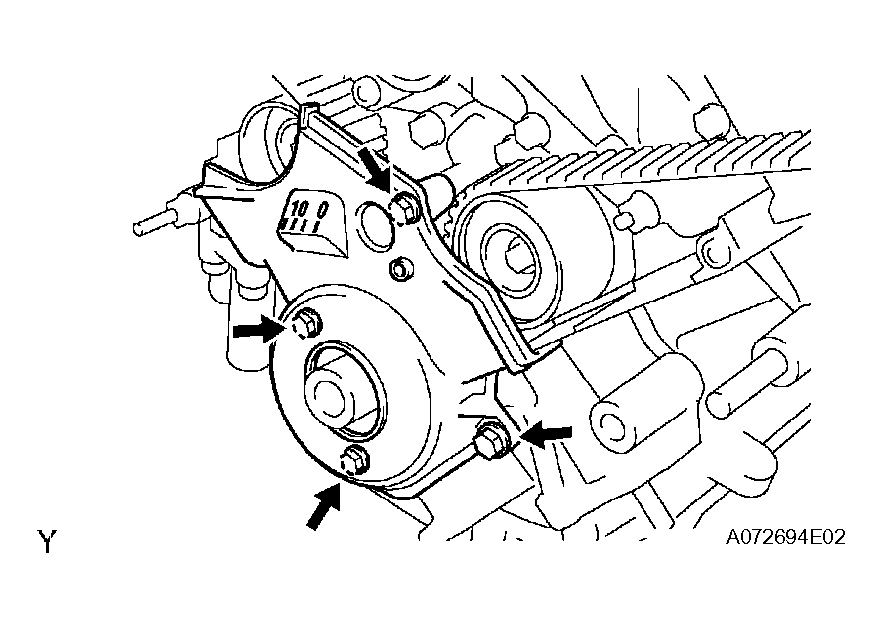

REMOVE NO. 1 TIMING BELT COVER
1. Remove the 4 bolts and cover.
Fig 10: Removing No. 1 Timing Belt Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CRANKSHAFT POSITION SENSOR PLATE
REMOVE TIMING BELT
1. Set the No. 1 cylinder to approximately 45° BTDC/compression.

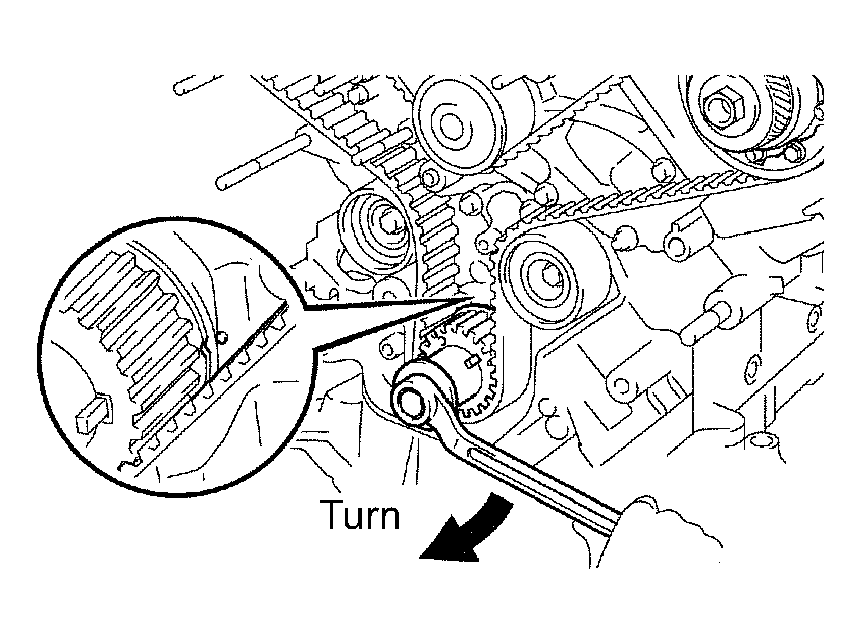

  1. Using the crankshaft damper bolt, turn the crankshaft to align the timing marks of the crankshaft timing pulley and oil pump body.

    Fig 11: Aligning Timing Marks Of Crankshaft Timing Pulley & Oil Pump Body
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

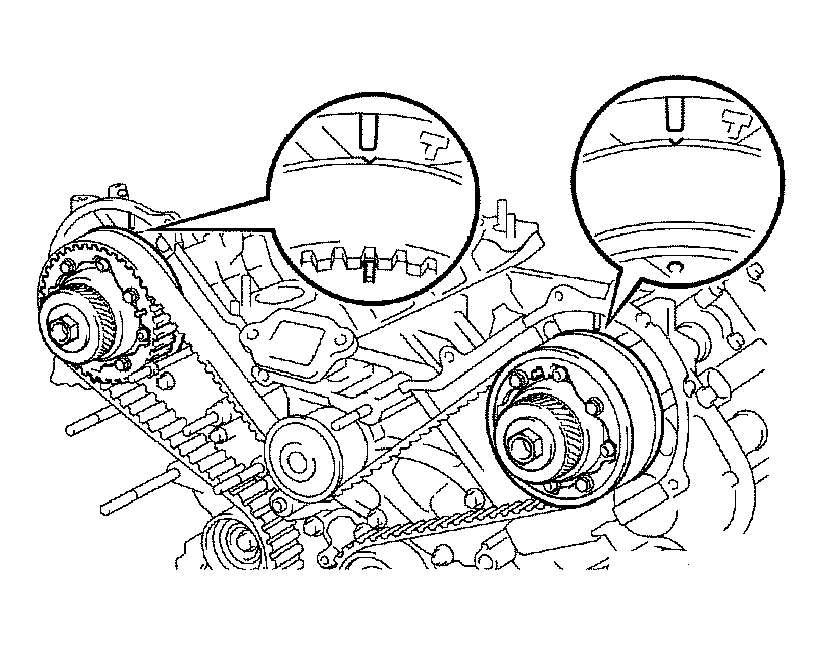

  2. Check that the timing marks of the camshaft timing pulleys and timing belt plates are aligned.
    If not, turn the crankshaft 1 revolution (360°).

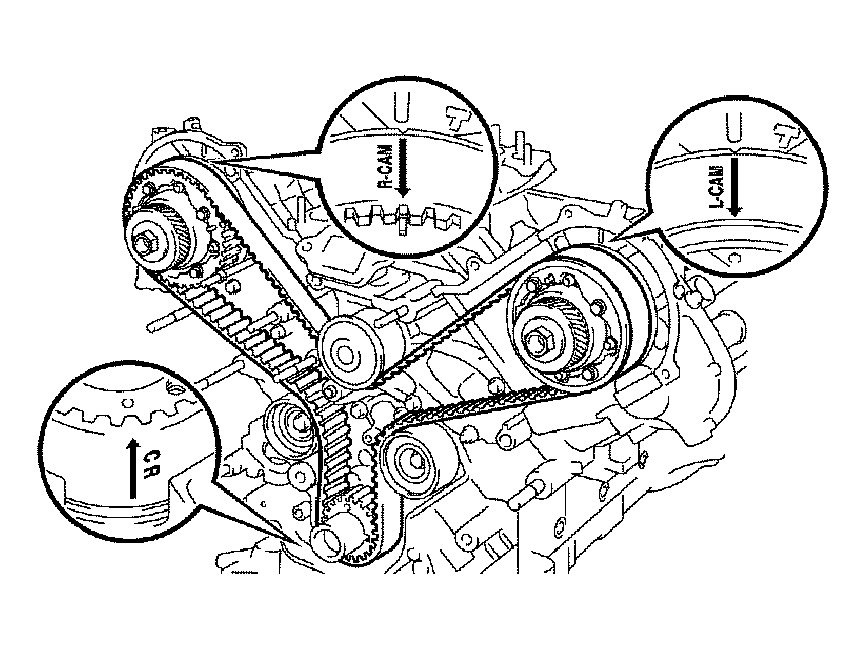

    Fig 12: Checking Timing Marks Of Camshaft Timing Pulleys & Timing Belt Plates
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

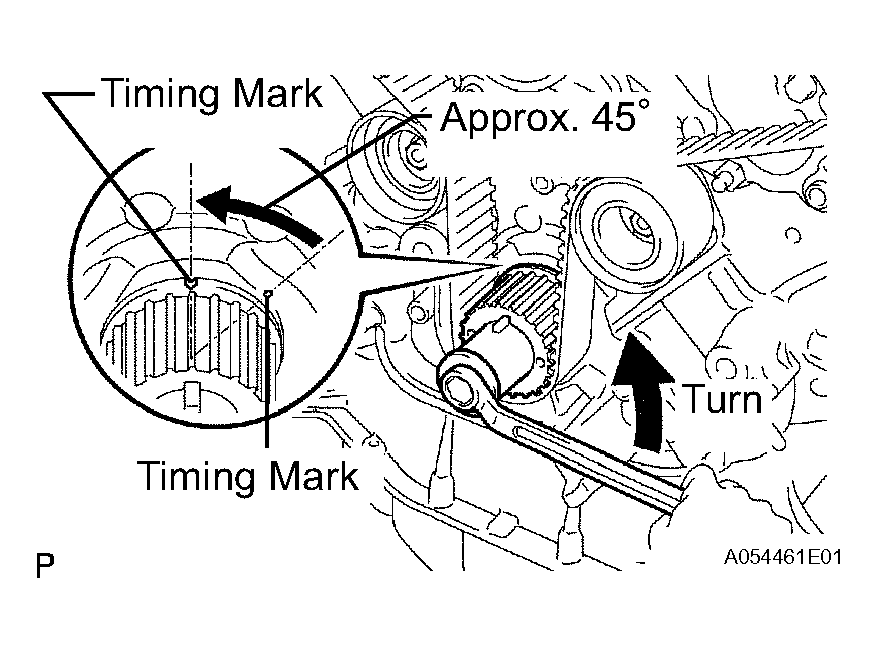

  3. Using the crankshaft damper bolt, turn the crankshaft counterclockwise by approximately 45°.

    Fig 13: Turning Crankshaft Counterclockwise By Approximately 45°
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NOTE: If the timing belt is disengaged, having the crankshaft pulley at a wrong angle can cause the piston head and valve head to come into contact with each other when removing the camshaft timing pulley and camshaft, causing damage. So always set the crankshaft pulley at the correct angle.
2. If planning to reuse the belt, check the installation marks on the timing belt.
  1. Check that there are 3 installation marks on the belt by turning the crankshaft as shown in Fig 14.
    If the installation marks have disappeared, place new installation marks on the belt before removing each part.

    Fig 14: Checking Installation Marks On Belt
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Alternately loosen the 2 bolts. Then remove the 2 bolts, belt tensioner and dust boot.

  Fig 15: Removing Belt Tension & Dust Boot
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

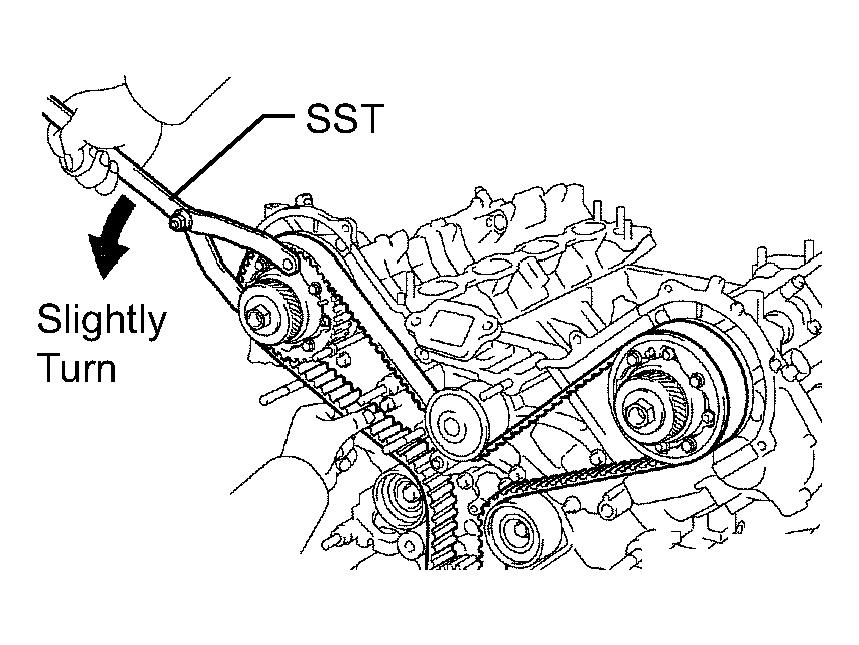

4. Using SST, loosen the tension between the camshaft timing pulley (RH) and crankshaft timing pulley by slightly turning the camshaft timing pulley (RH) counterclockwise.
  SST 09960-10010 (09962-01000, 09963-00350)

  Fig 16: Loosening Tension Between Camshaft Timing Pulley (RH) & Crankshaft Timing Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Disconnect the belt from the No. 1 timing belt idler, and remove the belt.
