Vane Pump: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE UNDER COVER
    1. Remove the 7 bolts.
  2. REMOVE NO. 2 ENGINE UNDER COVER
    1. Remove the 8 bolts.
  3. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
    1. Disconnect the MAF meter connector.
    2. Disconnect the hoses.
    3. Loosen the clamp.
    4. Remove the 3 bolts.
  4. REMOVE DRIVE BELT
    1. Loosen the drive belt tension by turning the drive belt tensioner counterclockwise, and remove the drive belt.
  5. DISCONNECT VACUUM HOSE
    1. Remove the 2 clips.
  6. DISCONNECT RETURN HOSE
    1. Remove the clip.
  7. REMOVE PRESSURE FEED TUBE ASSEMBLY
    1. Remove the union bolt and 2 gaskets.
  8. REMOVE VANE PUMP ASSEMBLY
    1. Remove the 3 bolts.

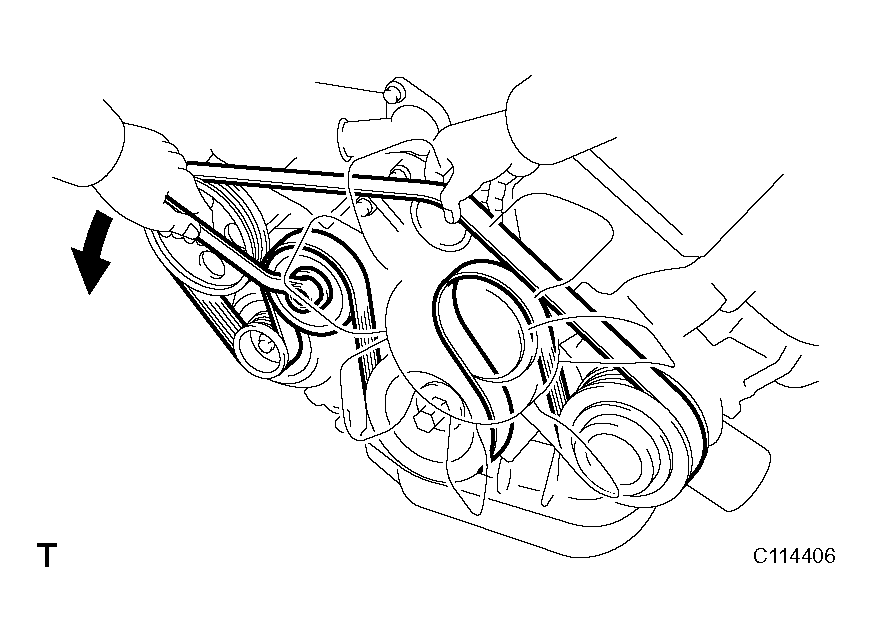

      Fig 1: Loosening Drive Belt Tension
      G04437812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
