Drive Belt: Removal
WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

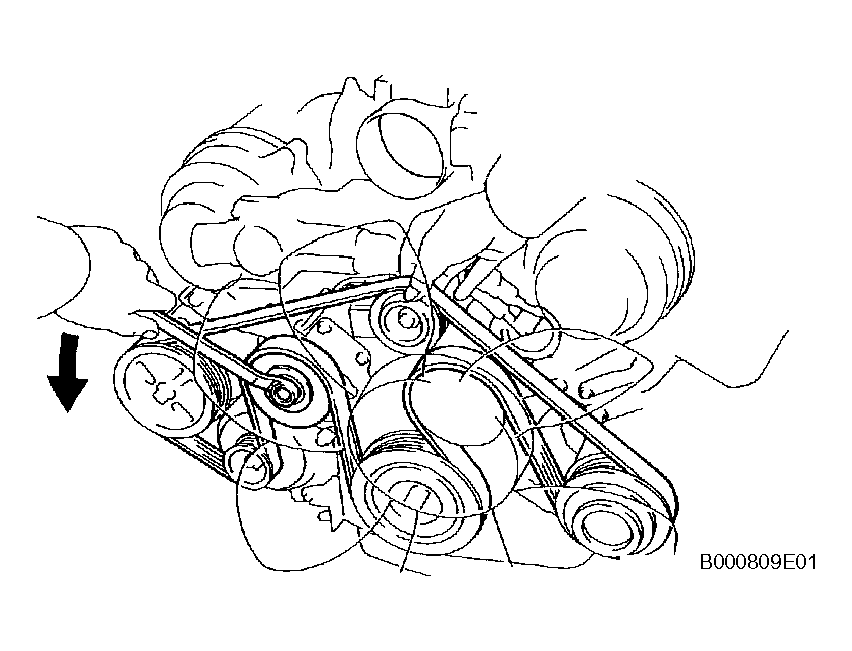

- REMOVE DRIVE BELT
- Loosen the belt tension by turning the belt tensioner counterclockwise, and then remove the drive belt.
HINT:
The pulley bolt for the belt tensioner has a left-hand thread.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
