Inspection Procedure
HINT:
Set the tire pressure to the specified value.
- CHECK TIRE PRESSURE WARNING LIGHT
- Check the tire pressure warning light.
Result
RESULT REFERENCECondition Proceed to Does not blink A Comes on and goes off repeatedly at 0.5 second intervals B
B: Go to step 7
A: GO TO NEXT STEP
- Check the tire pressure warning light.
- CLEAR DTC
- Clear the DTC (see DTC CHECK/CLEAR ).
- CHECK DTC
- Check for DTC (see DTC CHECK/CLEAR
).
OK:
DTC C2177/77 is not output.
OK: PERFORM INITIALIZATION
NG: GO TO NEXT STEP
- Check for DTC (see DTC CHECK/CLEAR
).
- CHECK TIRE PRESSURE WARNING LIGHT
- Turn the ignition switch ON.
- Check that the tire pressure warning light comes on for 3 seconds and goes off.
Result
RESULT REFERENCECondition Proceed to Does not come on A Comes on B
B: Go to step 2
A: GO TO NEXT STEP
- CHECK WIRE HARNESS (ECU - COMBINATION METER)
- Disconnect the T25 ECU connector.
- Disconnect the C13 combination meter connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance

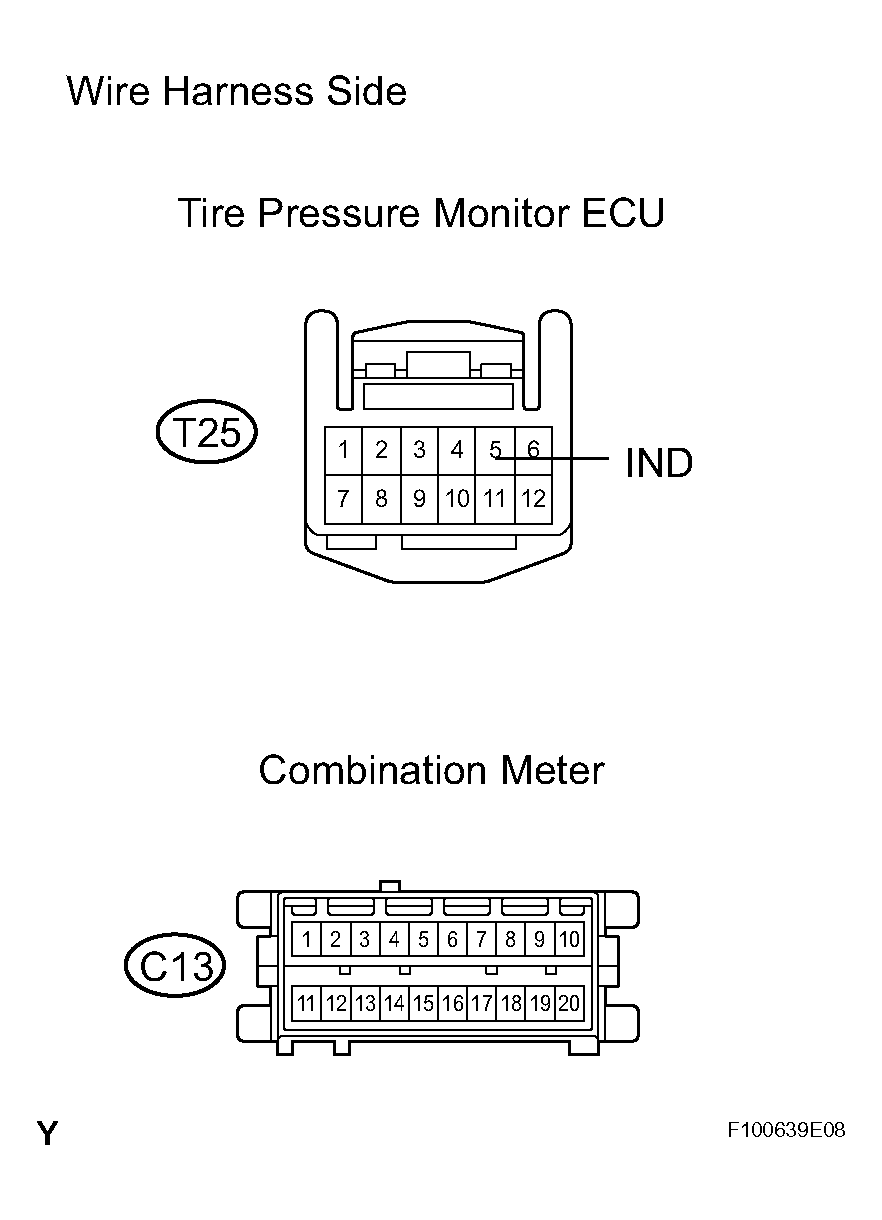

RESISTANCE SPECIFIED CONDITIONSTester Connection Specified Condition T25-5 (IND) - C13-13 Below 1 Ω T25-5 (IND) - Body ground 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: GO TO NEXT STEP
- INSPECT TIRE PRESSURE MONITOR ECU
- Connect the T25 ECU connector.
- Measure the voltage wire harness connector.
Standard voltage
VOLTAGE SPECIFIED CONDITIONSTester Connection Condition Specified Condition T25-5 (IND) - T25-9 (GND) Immediately after turning the ignition switch ON (within 3 seconds) 8 to 16 V
NG: REPLACE TIRE PRESSURE MONITOR ECU
OK: REPLACE COMBINATION METER
- CHECK TIRE PRESSURE WARNING LIGHT
- Enter TEST MODE (see TEST MODE PROCEDURE ).
- Press the tire pressure warning reset switch for 1 second or more after switching to TEST MODE.
- Check that the tire pressure warning light comes on while pressing the tire pressure warning reset switch.
Result
RESULT REFERENCECondition Proceed to Comes on A Does not come on B
B: Go to step 18
A: GO TO NEXT STEP
- CHECK TIRE PRESSURE WARNING LIGHT
- Turn the ignition switch ON.
- Rapidly reduce the pressure of the tires to approximately 120 kPa (1.2 kgf/cm2 , 35 psi).
- Check that the tire pressure warning light comes on for 1 second while rapidly reducing the pressure or immediately after reducing the pressure.
- Note the check results.
- Set the tire pressure to the specified value.
- Check that the tire pressure warning light comes on when each of the wheels is inspected.
Result
RESULT REFERENCEResult Proceed to Does not come on (All wheels) A Does not come on (Some wheels) B Comes on (All wheels) C HINT:
Replace the tire pressure monitor valve sub-assembly for which the tire pressure warning light did not come on during inspection.
B: REPLACE TIRE PRESSURE MONITOR VALVE SUB-ASSEMBLY
C: PERFORM INITIALIZATION
A: GO TO NEXT STEP
- CHECK TIRE PRESSURE SELECT SWITCH POSITION
- Check that the position of the select switch (MAIN or 2nd) is the same as the type of registration ID of the wheels being used.
NG: CHANGE TIRE PRESSURE WARNING SELECT SWITCH POSITION
OK: GO TO NEXT STEP
- CHECK TEST MODE DTC
- Check for test mode DTC (see TEST MODE PROCEDURE
).
Result
RESULT REFERENCEResult Proceed to C2195/95 output A C2195/95 not output B
B: Go to step 14
A: GO TO NEXT STEP
- Check for test mode DTC (see TEST MODE PROCEDURE
).
- CHECK WIRE HARNESS (ANTENNA - ECU)
- Disconnect the T26 ECU connector.
- Disconnect the T30 and T31 antenna connectors.
- Measure the resistance of the wire harness side connectors.
Standard resistance

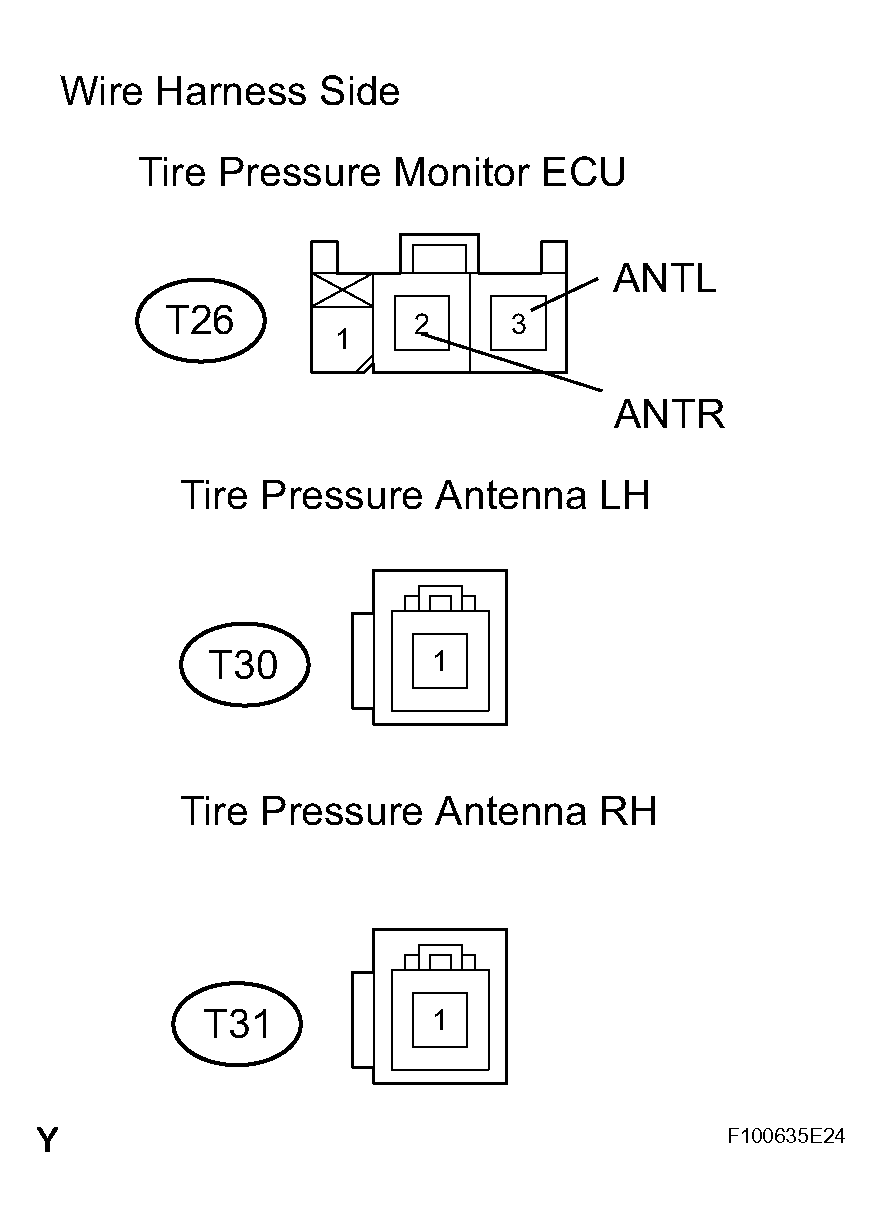

RESISTANCE SPECIFIED CONDITIONSTester Connection Specified Condition T26-3 (ANTL) - T30-1 Below 1 Ω T26-2 (ANTR) - T31-1 Below 1 Ω
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: GO TO NEXT STEP
- REPLACE OUTER REAR VIEW MIRROR ASSEMBLY (TIRE PRESSURE ANTENNA)
- CHECK DTC
- Check for DTC (see DTC CHECK/CLEAR
).
OK:
DTC is not output.
OK: END
NG: REPLACE TIRE PRESSURE MONITOR ECU
- Check for DTC (see DTC CHECK/CLEAR
).
- CHECK TIRE PRESSURE MONITOR ECU
- Disconnect the T25 ECU connector.
- Disconnect the T28 switch connector.
- Measure the resistance of the wire harness side connector.
Standard resistance

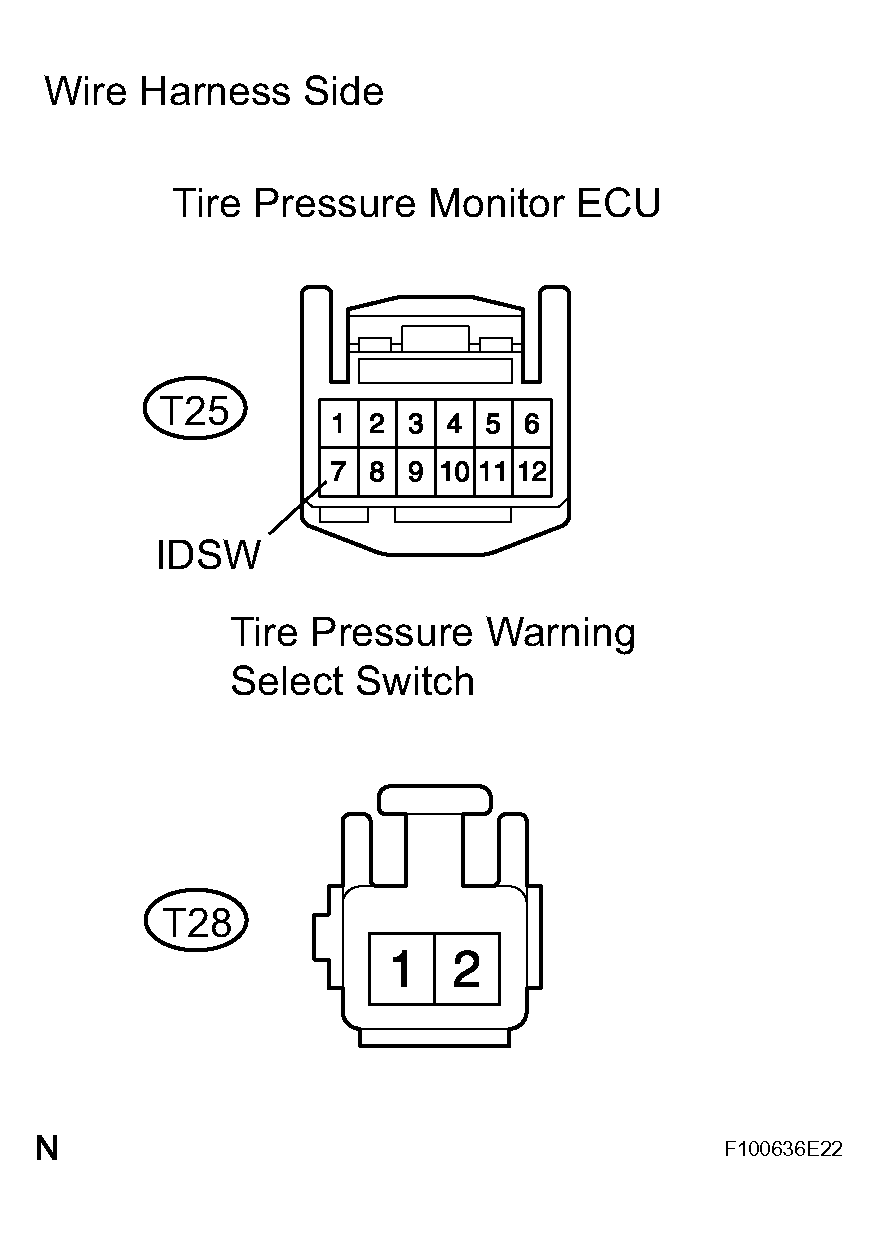

RESISTANCE SPECIFIED CONDITIONSTester Connection Specified Condition T25-7 (IDSW) - T28-2 Below 1 Ω T25-7 (IDSW) - Body ground 10 k Ω or higher T28-1 - Body ground Below 1 Ω
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: GO TO NEXT STEP
- INSPECT TIRE PRESSURE WARNING SELECT SWITCH
- Remove the select switch.
- Measure the resistance of the switch.
Standard resistance
RESISTANCE SPECIFIED CONDITIONSTester Connection Switch Position Specified Condition 1 - 2 MAIN 10 k Ω or higher 1 - 2 2nd Below 1 Ω
NG: REPLACE TIRE PRESSURE WARNING SELECT SWITCH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: GO TO NEXT STEP
- REPLACE TIRE PRESSURE MONITOR ECU
- CHECK DTC
- Check for DTC.
OK:
DTC is not output
OK: END
NG: REPLACE TIRE PRESSURE MONITOR VALVE SUB-ASSEMBLY
- Check for DTC.
- CHECK WIRE HARNESS (RESET SWITCH - ECU)
- Disconnect the T27 switch connector.
- Disconnect the T25 ECU connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance

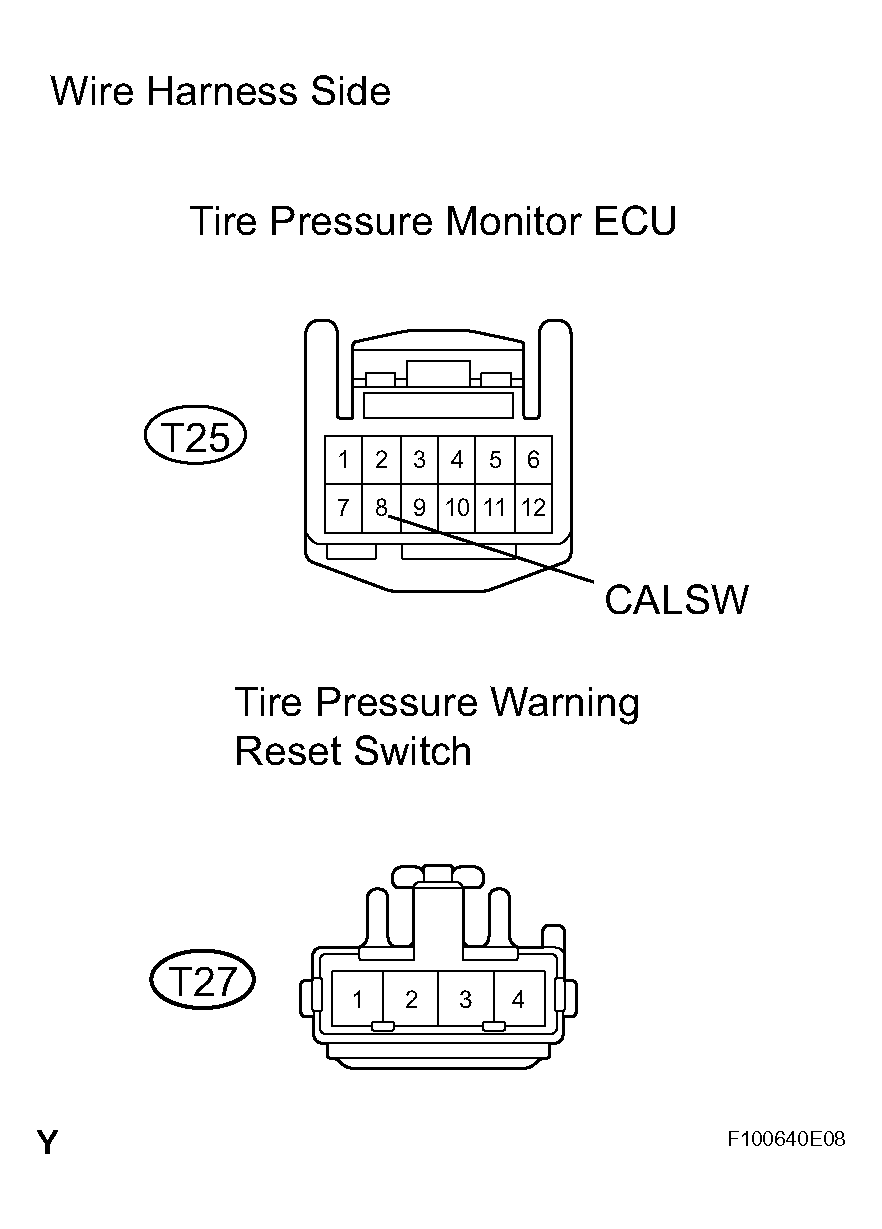

RESISTANCE SPECIFIED CONDITIONSTester Connection Specified Condition T25-8 (CALSW) - T27-3 Below 1 Ω T25-8 (CALSW) - Body ground 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: GO TO NEXT STEP
- INSPECT TIRE PRESSURE MONITOR ECU
- Connect the T25 ECU connector.
- Connect the T27 switch connector.
- Measure the voltage of the ECU.
Result
RESULT REFERENCETester Connection Connection Specified Condition Z34-8 (CALSW) - Z34-9 (GND) Ignition switch ON
Reset switch ONBelow 1.5 V Z34-8 (CALSW) - Z34-9 (GND) Ignition switch ON
Reset switch OFF8 to 15 V
NG: REPLACE TIRE PRESSURE WARNING RESET SWITCH
OK: REPLACE TIRE PRESSURE MONITOR ECU
