Tire Pressure Warning System: Registration

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. IN CASE OF TIRE PRESSURE MONITOR ECU REPLACEMENT
    1. Read ID stored in the old ECU using the intelligent tester.
  2. IN CASE OF TIRE PRESSURE MONITOR VALVE SUB-ASSEMBLY AND/OR TIRE PRESSURE MONITOR ECU REPLACEMENT
    1. Read ID written on the tire pressure monitor valve sub-assembly.
  3. REGISTER TRANSMITTER ID
    NOTE: It is necessary to register the transmitter ID in the tire pressure monitor ECU when replacing the tire pressure monitor valve sub-assembly and/or tire pressure monitor ECU.
    1. Set the tire pressure of all wheels (including the spare tire) to the specified value.

      Standard pressure

      TIRE PRESSURE SPECIFICATIONS

      Front Rear Spare
      200 kPa (2.0 kgf/cm2 , 29 psi) Trailer Towing 220 kPa (2.2 kgf/cm2 , 32 psi) Trailer Towing 220 kPa (2.2 kgf/cm2 , 32 psi) Trailer Towing
      220 kPa (2.2 kgf/cm2 , 32 psi) 240 kPa (2.4 kgf/cm2 , 35 psi) 240 kPa (2.4 kgf/cm2 , 35 psi)
    2. Connect the intelligent tester (with CAN VIM) to the DLC3.
    3. Turn the ignition switch ON.
    4. *1: Read and write down the ID (ID1 to ID5) by using the DATA LIST.
      Fig 1: Display DATA LIST Screen
      G04437619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. *2: Select the REGIST TIRE following the intelligent tester screen (UTILITY - REGIST TIRE).
    6. *3: Select the registration mode "MAIN".

      HINT:

      Select "2nd" when registering in "2nd".

      Fig 2: Display (UTILITY - REGIST TIRE) Screen (1 Of 2)
      G04437620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Input the ID (ID1 to ID5) using the intelligent tester and transmit it to the tire pressure monitor ECU.
    8. Set the ID transmission condition to "ID Registration is complete".
      Fig 3: Display (UTILITY - REGIST TIRE) Screen (2 Of 2)
      G04437621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

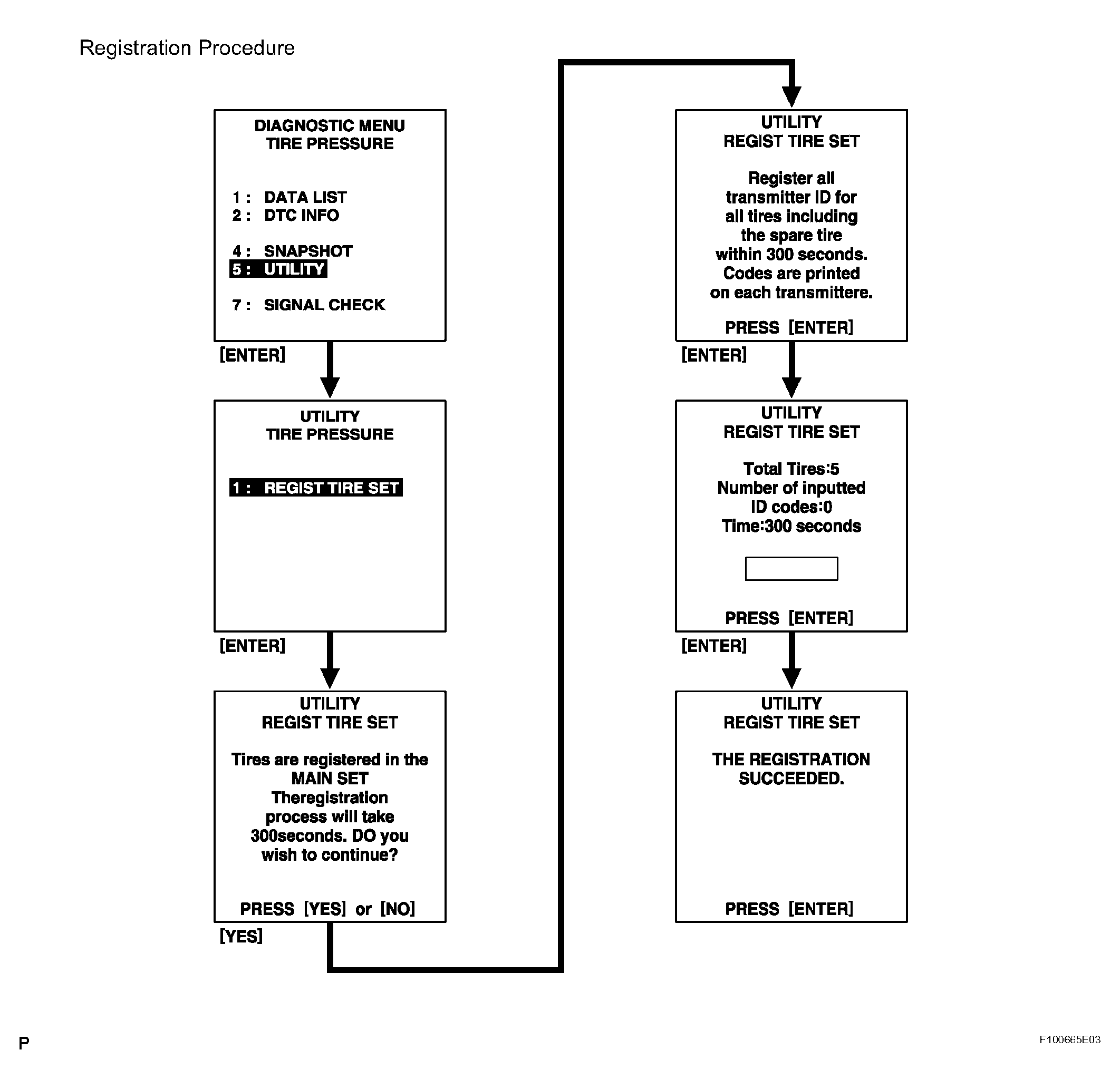

      Fig 4: ID Registration Procedure
      G04437622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the operations of *1 to *3 are not completed within 5 minutes, the mode will return to normal operation mode.

  4. CONFIRMATION OF TRANSMITTER ID REGISTRATION
    1. Set the tire pressure of all wheels (including the spare tire) to the specified value.

      Standard pressure

      TIRE PRESSURE SPECIFICATIONS

      Front Rear Spare
      200 kPa (2.0 kgf/cm2 , 29 psi) Trailer Towing 220 kPa (2.2 kgf/cm2 , 32 psi) Trailer Towing 220 kPa (2.2 kgf/cm2 , 32 psi) Trailer Towing
      220 kPa (2.2 kgf/cm2 , 32 psi) 240 kPa (2.4 kgf/cm2 , 35 psi) 240 kPa (2.4 kgf/cm2 , 35 psi)
    2. Connect the intelligent tester (with CAN VIM) to the DLC3.
    3. Turn the ignition switch ON.
    4. Select "SIGNAL CHECK" mode on the intelligent tester (with CAN VIM) (see TEST MODE PROCEDURE  ).
    5. Perform forced transmission of the transmitter IDs for all wheels.
      1. When rapidly reducing the pressure, remove the valve core (above 40 kPa (0.4 kgf/cm2 , 5.8 psi) / 30 sec.).

        HINT:

        The transmitter ID can be transmitted by rapidly reducing the tire air pressure.

      2. Perform the steps mentioned above to all tires.

        HINT:

        When rapidly reducing the pressure, remove the valve core (above 40 kPa (0.4 kgf/cm2 , 5.8 psi / 30 sec.).

    6. Check that test mode DTCs C2181/81, C2182/82, C2183/83, C2184/84 and C2185/85 are all erased.

      HINT:

      • The transmitter ID registration is completed when the test mode DTCs are erased.
      • If they have not been erased, reset the tire pressure to the specified value and rotate the tire 90 to 270 degrees. Then perform forced transmission of the transmitter IDs of all wheels. If they are still output, register the transmitter IDs.
      • If the ID cannot be registered, short circuit the TC and CG terminals of the DLC3.
    7. Set the tire pressure of all wheels to the specified value.
  5. PROCEDURE FOR DETERMINING THE INSTALLED WHEEL'S TRANSMITTER ID STATUS ("MAIN" OR "2ND")
    1. Turn the ignition switch ON.
    2. Set the tire pressure warning select switch to the "MAIN" position.
    3. Set the tire pressure of all wheels (including the spare tire) to the specified value.

      Standard pressure

      TIRE PRESSURE SPECIFICATIONS

      Front Rear Spare
      200 kPa (2.0 kgf/cm2 , 29 psi) Trailer Towing 220 kPa (2.2 kgf/cm2 , 32 psi) Trailer Towing 220 kPa (2.2 kgf/cm2 , 32 psi) Trailer Towing
      220 kPa (2.2 kgf/cm2 , 32 psi) 240 kPa (2.4 kgf/cm2 , 35 psi) 240 kPa (2.4 kgf/cm2 , 35 psi)
    4. Rapidly reduce the pressure of any wheel to 120 kPa (1.2 kgf/cm2 , 17 psi).
    5. Check the following items. If both of them are true, the transmitter ID of the currently installed wheel is registered in the "MAIN".
      • Tire pressure warning light comes on.
      • The tire pressure of any tire is 120 kPa (1.2 kgf/cm2 , 17 psi) when measured with the intelligent tester.
    6. If either of the conditions is not true, switch the tire pressure warning select switch to "2nd" and check both of the items above. If both are true, the transmitter ID of the currently installed wheel is registered in "2nd".
