DTC Check/Clear

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DTC (USING SST CHECK WIRE)

Using the SST, connect terminals 13 (TC) and 4 (CG) of DLC3.
SST 09843-18040

Fig 1: Identifying Terminals 13 (TC) & 4 (CG) Of DLC3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Turn the ignition switch ON.

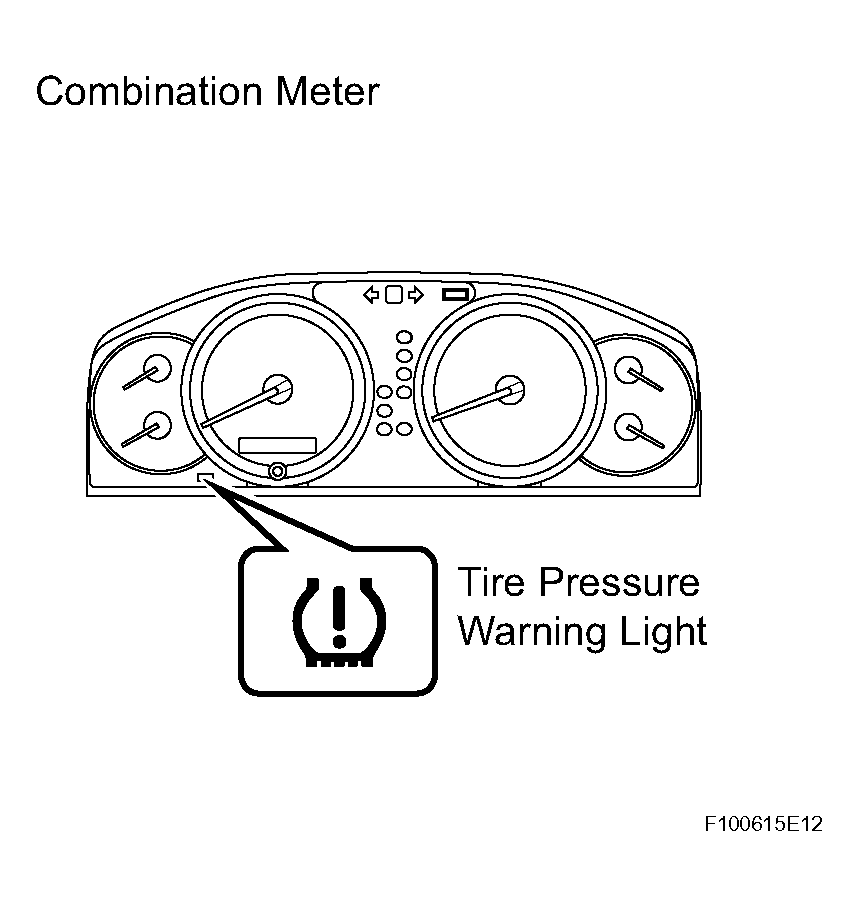

Fig 2: Locating Tire Pressure Warning Light
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Read and record any DTCs from the tire pressure warning light on the combination meter. Refer to Fig 3 for examples of a normal system code and DTCs 13 and 33.

HINT:

If the tire pressure warning light does not blink to indicate any DTCs or the normal system code, inspect the tire pressure warning light circuit or 13 (TC) and 4 (CG) terminal circuits.

TROUBLESHOOTING REFERENCE

Trouble Area	See procedure
Tire pressure warning light circuit	TIRE PRESSURE WARNING LIGHT CIRCUIT
TC and CG terminal circuit	TC AND CG TERMINAL CIRCUIT

If 2 or more malfunctions are indicated at the same time, the lowest numbered DTC is displayed first.

Refer to the Diagnostic Trouble Code Table for DTC information (see DATA LIST/ACTIVE TEST ).
After completing the check, turn the ignition switch OFF and remove the SST from the DLC3.

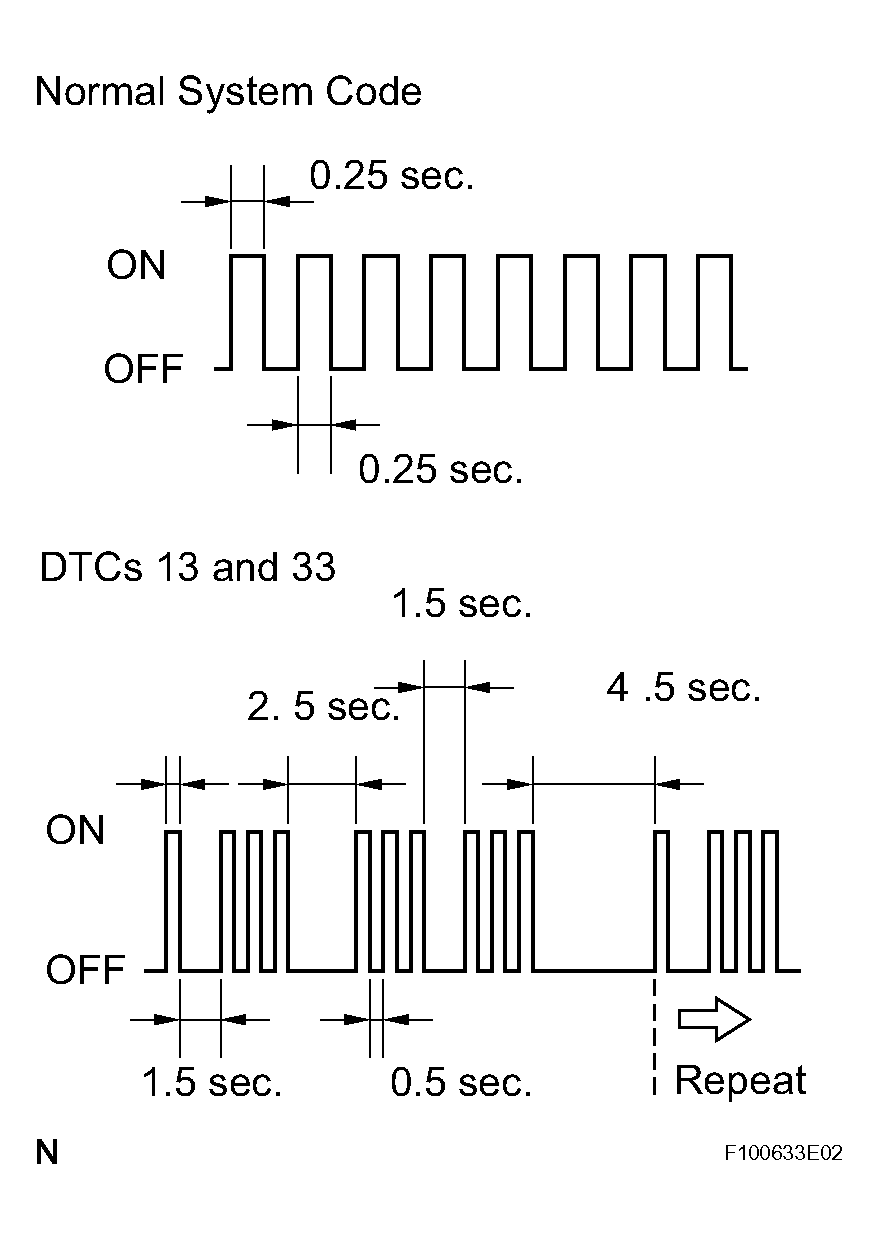

Fig 3: Normal System Code & DTC's 13 & 33 Blinking Pattern
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CLEAR THE DTC (USING SST CHECK WIRE)
1. Using the SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
2. Turn the ignition switch ON.
3. Within 15 seconds after connecting terminals TC and CG, change the tire pressure warning switch between "MAIN" and "2nd" for 4 cycles or more.
4. Check that the multi-information display shows the normal system code.
5. Disconnect the SST from the terminals of the DLC3.

  Fig 4: Identifying Terminals 13 (TC) & 4 (CG) Of DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DTC CHECK (USING INTELLIGENT TESTER)
1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Read the DTCs following the prompts on the tester screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.
CLEAR THE DTC (USING INTELLIGENT TESTER)
HINT:

After repairing the malfunctions, clear the DTCs.
1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Erase the DTCs following the prompts on the tester screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.

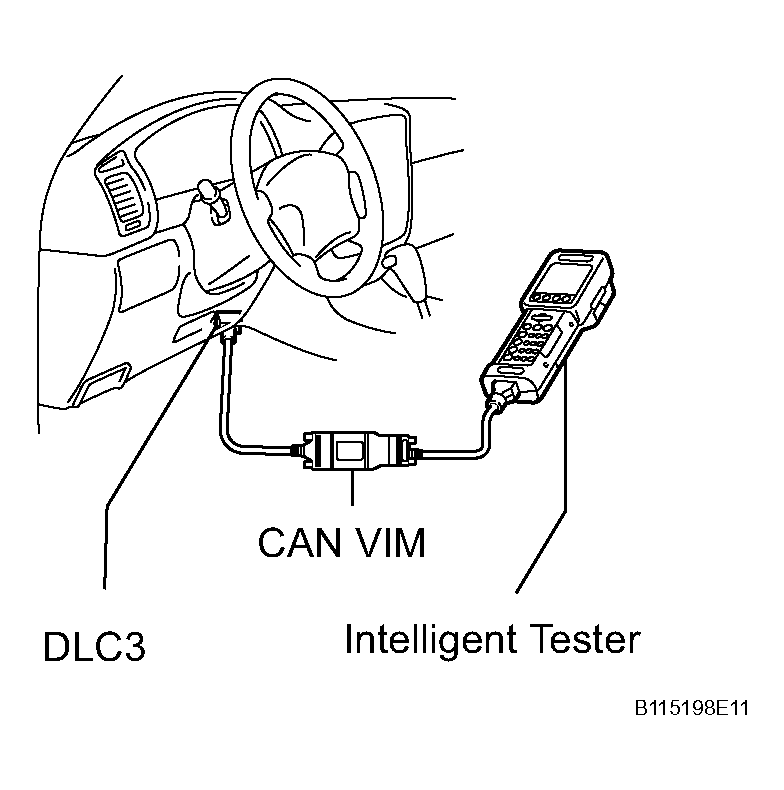

  Fig 5: Connecting Intelligent Tester (With CAN VIM) To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
