Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: It is necessary to register an ID code after replacing the tire pressure monitor valve sub-assembly and/or the tire pressure monitor ECU (see REGISTRATION ).

HINT:

Set the tire pressure to the specified value.

CHECK TIRE PRESSURE WARNING LIGHT

Check the tire pressure warning light.

Result

RESULT REFERENCE

Condition	Proceed to
Does not blink	A
Comes on and goes off repeatedly at 0.5 second intervals	B

B: Go to step 4

A: GO TO NEXT STEP

CLEAR DTC
1. Clear the DTC (see DTC CHECK/CLEAR ).
CHECK DTC
1. Check for DTC (see DTC CHECK/CLEAR ).
  OK:

  DTC is not output.
NG: REPLACE TIRE PRESSURE MONITOR ECU

OK: END (Perform procedures to check if the transmitter ID is registered)

CHECK DTC

Check for DTC (see DTC CHECK/CLEAR ).

Result

RESULT REFERENCE

Result	Proceed to
C2171/71 output	A
C2172/72 output	B

NG: Go to step 12

A: GO TO NEXT STEP

CHECK TIRE PRESSURE WARNING SELECT SWITCH (MAIN POSITION)
OK:

Tire pressure warning select switch is set to "MAIN".

HINT:

If the tire pressure warning select switch is not set to "MAIN", set the tire pressure warning select switch to "MAIN" and go to step 1.

NG: Go to step 1

Fig 1: Checking Tire Pressure Warning Select Switch (MAIN Position)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: GO TO NEXT STEP

CHECK TEST MODE DTC

Check for test mode DTC (see TEST MODE PROCEDURE ).

Result

RESULT REFERENCE

Result	Proceed to
C2195/95 output	A
C2195/95 not output	B

B: Go to step 10

A: GO TO NEXT STEP

CHECK WIRE HARNESS (ANTENNA - ECU)

Disconnect the T26 ECU connector.
Disconnect the T30 and T31 antenna connectors.

Measure the resistance of the wire harness side connectors.

Standard resistance

RESISTANCE SPECIFIED CONDITIONS

Tester Connection	Specified Condition
T26-3 (ANTL) - T30-1	Below 1 Ω
T26-2 (ANTR) - T31-1	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

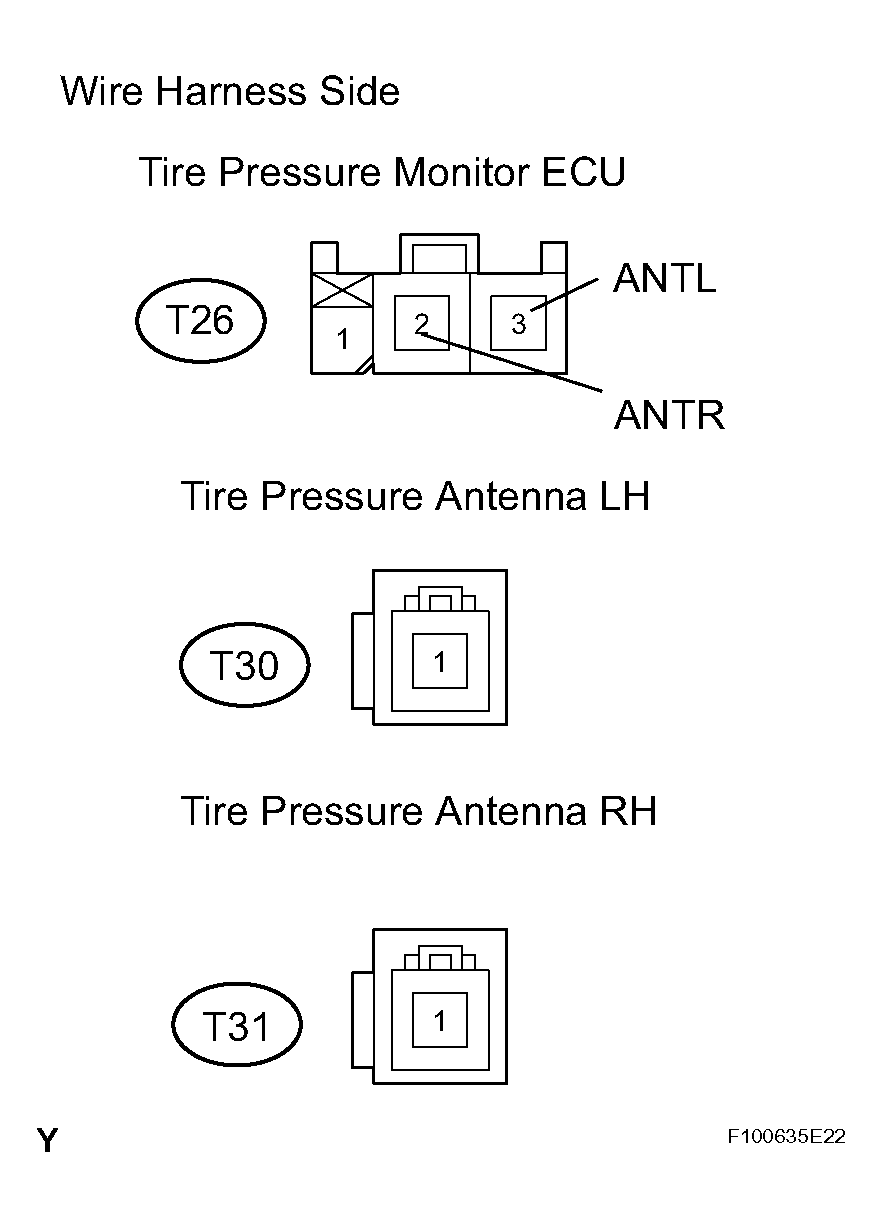

Fig 2: Identifying Tire Pressure Antenna & Monitor ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: GO TO NEXT STEP

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY (TIRE PRESSURE ANTENNA)
CHECK DTC
1. Check for DTC (see DTC CHECK/CLEAR ).
  OK:

  DTC is not output.
OK: END

NG: REPLACE TIRE PRESSURE MONITOR ECU

CHECK WIRE HARNESS (ECU - SELECT SWITCH)

Disconnect the T25 ECU connector.
Disconnect the T28 switch connector.

Measure the resistance of the wire harness side connectors.

Standard resistance

RESISTANCE SPECIFIED CONDITIONS

Tester Connection	Specified Condition
T25-7 (IDSW) - T28-2	Below 1 Ω
T25-7 (IDSW) - Body ground	10 k Ω or higher
T28-1 - Body ground	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

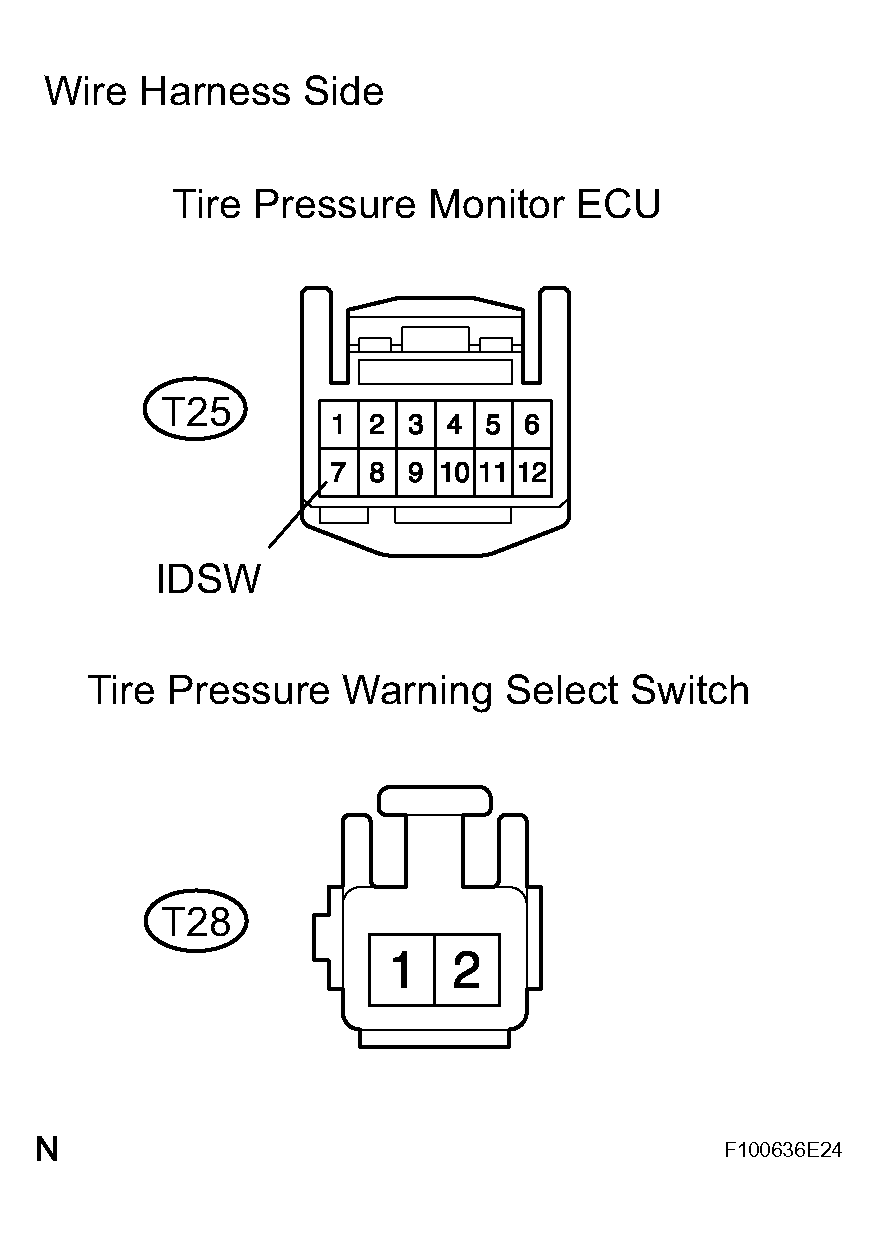

Fig 3: Identifying Tire Pressure Monitor ECU & Select Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: GO TO NEXT STEP

INSPECT TIRE PRESSURE WARNING SELECT SWITCH

Remove the tire pressure warning select switch.

Measure the resistance of the switch.

Standard resistance

RESISTANCE SPECIFIED CONDITIONS

Tester Connection	Switch Position	Specified Condition
1 - 2	MAIN	10 k Ω or higher
1 - 2	2nd	Below 1 Ω

NG: REPLACE TIRE PRESSURE WARNING SELECT SWITCH

Fig 4: Inspecting Tire Pressure Warning Select Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPLACE TIRE PRESSURE MONITOR ECU

CHECK TIRE PRESSURE WARNING SELECT SWITCH (2ND POSITION)
OK:

Tire pressure warning select switch is set to "2nd".

HINT:

If the tire pressure warning select switch is not set to "2nd", set the tire pressure warning select switch to "2nd" and go to step 1.

NG: Go to step 1

Fig 5: Checking Tire Pressure Warning Select Switch (2nd Position)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: GO TO NEXT STEP

CHECK TEST MODE DTC

Check for test mode DTC (see TEST MODE PROCEDURE ).

Result:

RESULT REFERENCE

Result	Proceed to
C2195/95 output	A
C2195/95 not output	B

B: Go to step 17

A: GO TO NEXT STEP

CHECK WIRE HARNESS (ANTENNA - ECU)

Disconnect the T26 ECU connector.
Disconnect the T30 and T31 antenna connectors.

Measure the resistance of the wire harness side connectors.

Standard resistance

RESISTANCE SPECIFIED CONDITIONS

Tester Connection	Specified Condition
T26-3 (ANTL) - T30-1	Below 1 Ω
T26-2 (ANTR) - T31-1	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

Fig 6: Identifying Tire Pressure Antenna & Monitor ECU Connector Terminals

OK: GO TO NEXT STEP

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY (TIRE PRESSURE ANTENNA)
CHECK DTC
1. Check for DTCs (see DTC CHECK/CLEAR ).
  OK:

  DTC is not output.
OK: END

NG: REPLACE TIRE PRESSURE MONITOR ECU

CHECK WIRE HARNESS (ECU - SELECT SWITCH)

Disconnect the T25 ECU connector.
Disconnect the T28 switch connector.

Measure the resistance of the wire harness side connectors.

Standard resistance

RESISTANCE SPECIFIED CONDITIONS

Tester Connection	Specified Condition
T25-7 (IDSW) - T28-2	Below 1 Ω
T25-7 (IDS) - Body ground	10 kΩ or higher
T28-1 - Body ground	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

Fig 7: Identifying Tire Pressure Monitor ECU & Select Switch Connector Terminals

OK: GO TO NEXT STEP

INSPECT TIRE PRESSURE WARNING SELECT SWITCH

Remove the select switch.

Measure the resistance of the switch.

Standard resistance

RESISTANCE SPECIFIED CONDITIONS

Tester Connection	Switch Position	Specified Condition
1 - 2	MAIN	10 kΩ or higher
1 - 2	2nd	Below 1 Ω

NG: REPLACE TIRE PRESSURE WARNING SELECT SWITCH

Fig 8: Inspecting Tire Pressure Warning Select Switch

OK: REPLACE TIRE PRESSURE MONITOR ECU
