Parking Brake Cable: Installation

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL PARKING BRAKE CABLE
1. Install the parking brake cable onto the backing plate with the bolt.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
2. Install a new cable clamp B onto the rear axle beam.
  NOTE: Securely install the clamp.
3. Tighten the 4 bolts.
  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

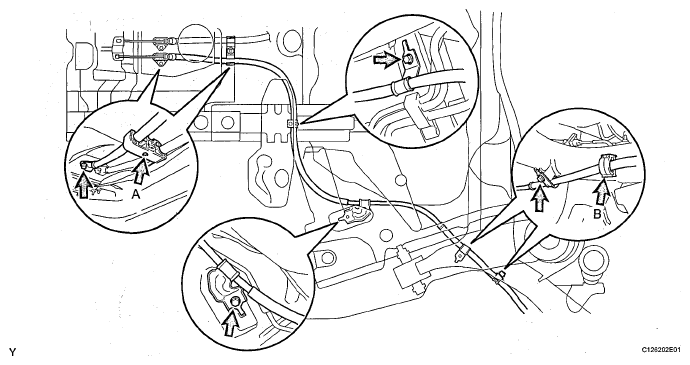

  Fig 1: Locating Parking Brake Cable Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Pass the parking brake cable through a new cable clamp A, and then install cable clamp A onto the stud bolt.
  NOTE: Securely install the clamp.
5. Connect the cable end to the equalizer.

  Fig 2: Locating Cable Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT NO. 4 FLOOR HEAT INSULATOR
1. Install the heat insulator with the 2 nuts.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
INSTALL REAR BRAKE SHOE KIT (See REASSEMBLY )
CHECK REAR DRUM BRAKE INSTALLATION (See REASSEMBLY )
INSTALL REAR BRAKE DRUM SUB-ASSEMBLY
ADJUST REAR DRUM BRAKE SHOE CLEARANCE (See INSTALLATION )
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
INSPECT PARKING BRAKE LEVER TRAVEL (See ADJUSTMENT )

Fig 3: Locating Heat Insulator Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST PARKING BRAKE LEVER TRAVEL (See ADJUSTMENT )
INSTALL REAR CONSOLE BOX ASSEMBLY (See INSTALLATION )
INSTALL CONSOLE BOX CARPET (See INSTALLATION )
INSTALL REAR CONSOLE BOX COVER (for Hatchback) (See INSTALLATION )
INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan) (See INSTALLATION )
INSTALL SHIFTING HOLE COVER SUB-ASSEMBLY (for Hatchback Manual Transaxle) (See INSTALLATION )
INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan) (See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
INSTALL CENTER LOWER INSTRUMENT PANEL FINISH PANEL (for Sedan) (See INSTALLATION )
