RADIO ANTENNA CORD (for Hatchback 5 Door): Removal

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing PRECAUTION .
NOTE: Always use "Tone" socket wrench E10 when removing the rear seat.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for at least 90 seconds after disconnecting the cable to prevent the airbag from working
  2. REMOVE DECK BOARD SUB-ASSEMBLY  (See REMOVAL )
  3. REMOVE DECK FLOOR BOX RH  (See REMOVAL )
  4. REMOVE DECK FLOOR BOX LH  (See REMOVAL )
  5. REMOVE NO. 1 REAR SEAT LEG COVER (for 60/40 Split Seat Type)
    1. for RH Side:
      1. Remove the No. 1 rear seat leg cover (See REMOVAL ).
    2. for LH Side:
      1. Remove the No. 1 rear seat leg cover (See REMOVAL ).
  6. REMOVE NO. 2 REAR SEAT LEG COVER (for 60/40 Split Seat Type)  (See REMOVAL )
  7. REMOVE REAR SEAT ASSEMBLY RH (for 60/40 Split Seat Type)  (See REMOVAL )
  8. REMOVE REAR SEAT ASSEMBLY LH (for 60/40 Split Seat Type)  (See REMOVAL )
  9. REMOVE REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY (for Hold Down Seat Type)  (See REMOVAL )
  10. REMOVE REAR SEATBACK ASSEMBLY (for Hold Down Seat Type)  REMOVAL
  11. REMOVE REAR DECK TRIM COVER  (See REMOVAL )
  12. REMOVE FRONT DOOR SCUFF PLATE RH  (See REMOVAL )
  13. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
  14. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH  (See REMOVAL )
  15. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH  (See REMOVAL )
  16. REMOVE COWL SIDE TRIM BOARD RH  (See REMOVAL )
  17. REMOVE COWL SIDE TRIM BOARD LH  (See REMOVAL )
  18. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH  (See REMOVAL )
  19. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH  (See REMOVAL )
  20. REMOVE REAR DOOR SCUFF PLATE RH  (See REMOVAL )
  21. REMOVE REAR DOOR SCUFF PLATE LH  (See REMOVAL )
  22. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH  (See REMOVAL )
  23. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH  (See REMOVAL )
  24. REMOVE REAR SEAT OUTER BELT ASSEMBLY RH  (See REMOVAL )
  25. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH  (See REMOVAL )
  26. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH  (See REMOVAL )
  27. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH  (See REMOVAL )
  28. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY  (See REMOVAL )
  29. REMOVE ROOF SIDE INNER GARNISH RH  (See REMOVAL )
  30. REMOVE ROOF SIDE INNER GARNISH LH  (See REMOVAL )
  31. REMOVE SEAT BELT ANCHOR COVER CAP  (See REMOVAL )
  32. REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH  (See REMOVAL )
  33. REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH  (See REMOVAL )
  34. REMOVE CENTER PILLAR LOWER GARNISH RH  (See REMOVAL )
  35. REMOVE CENTER PILLAR LOWER GARNISH LH  (See REMOVAL )
  36. REMOVE CENTER PILLAR UPPER GARNISH RH  (See REMOVAL )
  37. REMOVE CENTER PILLAR UPPER GARNISH LH  (See REMOVAL )
  38. REMOVE SEAT BELT ANCHOR COVER  REMOVAL
  39. REMOVE ROOF HEADLINING SERVICE HOLE COVER (w/o Curtain Shield Airbag)  (See REMOVAL )
  40. REMOVE ASSIST GRIP COVER  (See REMOVAL )
  41. REMOVE ASSIST GRIP SUB-ASSEMBLY  (See REMOVAL )
  42. REMOVE VISOR ASSEMBLY RH  (See REMOVAL )
  43. REMOVE VISOR ASSEMBLY LH  (See REMOVAL )
  44. REMOVE VISOR HOLDER RH  (See REMOVAL )
  45. REMOVE VISOR HOLDER LH  (See REMOVAL )
  46. REMOVE ROOM LIGHT ASSEMBLY  (See REMOVAL )
  47. REMOVE MAP LIGHT ASSEMBLY  (See REMOVAL )
  48. REMOVE FRONT PILLAR GARNISH RH  (See REMOVAL )
  49. REMOVE FRONT PILLAR GARNISH LH  (See REMOVAL )
  50. REMOVE INSTRUMENT PANEL FINISH PANEL END RH  (See REMOVAL )
  51. REMOVE INSTRUMENT PANEL FINISH PANEL END LH  (See REMOVAL )
  52. REMOVE INSTRUMENT CLUSTER FINISH PANEL  (See REMOVAL )
  53. REMOVE COMBINATION METER ASSEMBLY  (See REMOVAL )
  54. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY  (See REMOVAL )
  55. REMOVE NO. 1 SWITCH HOLE BASE  (See REMOVAL )
  56. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY  (See REMOVAL )
  57. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY
    1. Remove the bolt and the bracket.
    2. Disconnect the connector.
    3. Disconnect the plug.
    4. Using a clip remover, remove the clamp.
    5. Remove the 3 clamps and the No. 2 antenna cord.

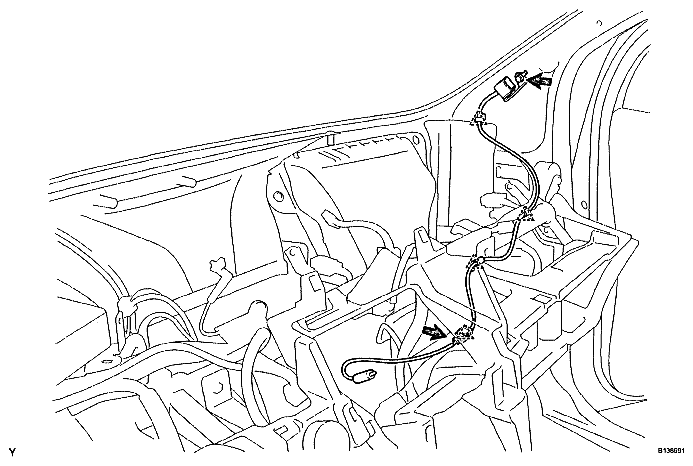

      Fig 1: Locating Connector
      G04833568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  58. REMOVE ROOF HEADLINING ASSEMBLY
    1. Remove the antenna cord from the antenna cord clamp.
    2. Disconnect the 2 connectors.
    3. Using a clip remover, remove the 2 connectors.
    4. w/ Curtain Shield Airbag:
      1. Using a clip remover, remove the clip.
        Fig 2: Identifying Hooks And Clips - W/O Curtain Shield Airbag
        G04835502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 4 hooks.
        Fig 3: Identifying Claws And Hooks - W/O Curtain Shield Airbag
        G04835503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. w/o Curtain Shield Airbag:
      1. Using a clip remover, remove the clip.
      2. Disengage the 2 claws and 4 hooks.
        Fig 4: Identifying Roof Headlining From Back Door
        G04835504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. REMOVE ANTENNA CORD SUB-ASSEMBLY
    1. w/ Curtain Shield Airbag:
      1. Remove the 6 pieces of tape.
      2. Remove the antenna cord from the cutout of the roof headlining.
      3. Remove the antenna cord from the 3 claws of the front and rear side rail spacers.
        Fig 5: Identifying Claws Of Front And Rear Side Rail Spacers
        G04833572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Curtain Shield Airbag:
      1. Remove the 4 pieces of tape.
      2. Remove the antenna cord from the cutout of the roof headlining.
      3. Remove the antenna cord from the 5 claws of the front and rear side rail spacers.
        Fig 6: Identifying Claws Of Front And Rear Side Rail Spacers
        G04833573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
