Transponder Key Ecu: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL TRANSPONDER KEY ECU
    1. Install the transponder key ECU with the bolt.

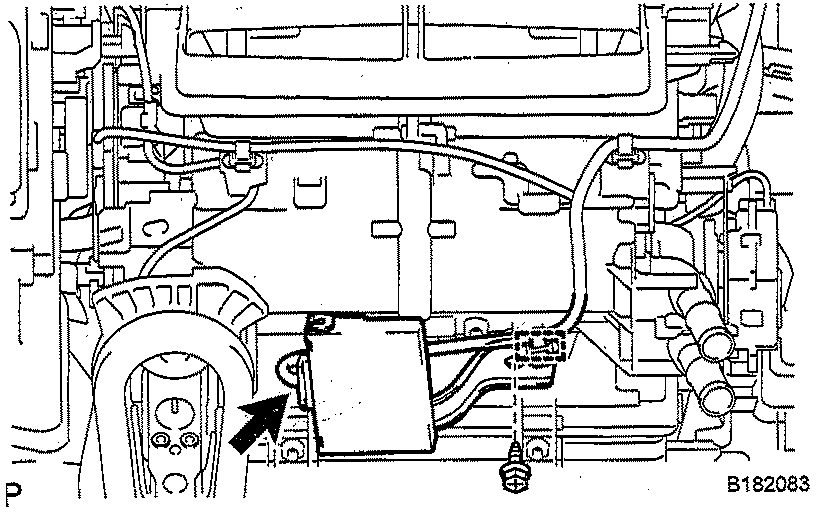

      2. Fig 1: Identifying Bolt And Transponder Key ECU
      G00397583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the clamp.
    3. Connect the connector.
  2. INSTALL AIR CONDITIONER UNIT ASSEMBLY

    (See INSTALLATION )

  3. INSTALL LOWER INSTRUMENT PANEL

    (See INSTALLATION )

  4. REGISTER ECU COMMUNICATION ID
    NOTE: When replacing the transponder key ECU, perform initialization (See  REGISTRATION   ).
  5. REGISTER KEY
    NOTE: When replacing the transponder key ECU, perform initialization (See  REGISTRATION   ).
