Section 177 (Charging System (2GR-FE)): Generator: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE RADIATOR ASSEMBLY
1. Remove the radiator (see REMOVAL ).
REMOVE FRONT WHEEL RH
REMOVE ENGINE UNDER COVER REAR RH (See REMOVAL )
REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT RH (See appropriate step(s) under REMOVAL2 )
REMOVE RADIATOR RESERVOIR TANK (See appropriate step(s) under REMOVAL )
REMOVE FAN AND GENERATOR V BELT (See appropriate step(s) under REMOVAL )
REMOVE GENERATOR ASSEMBLY

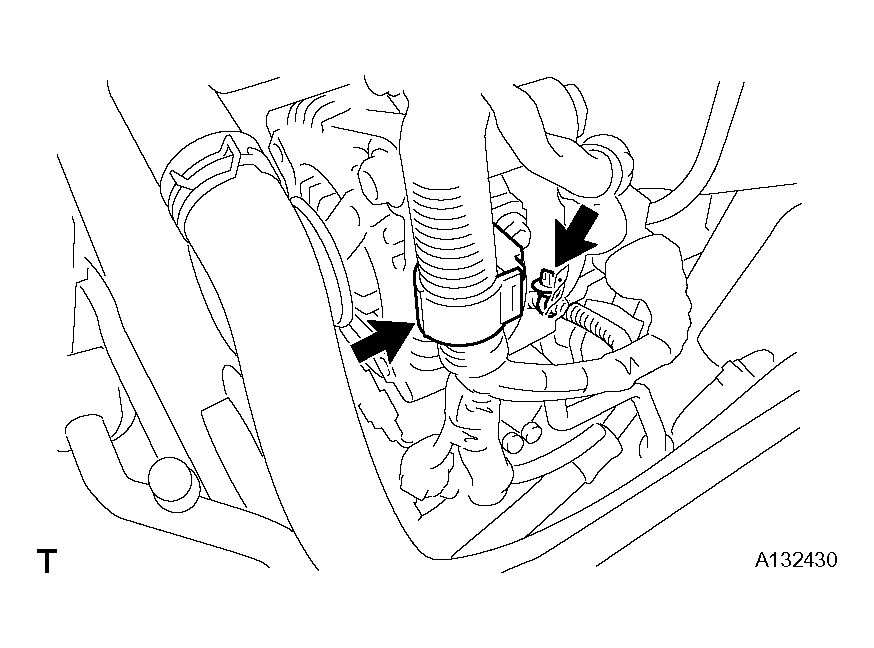

1. Disconnect the 2 wire harness clamps.

  Fig 1: Disconnecting Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

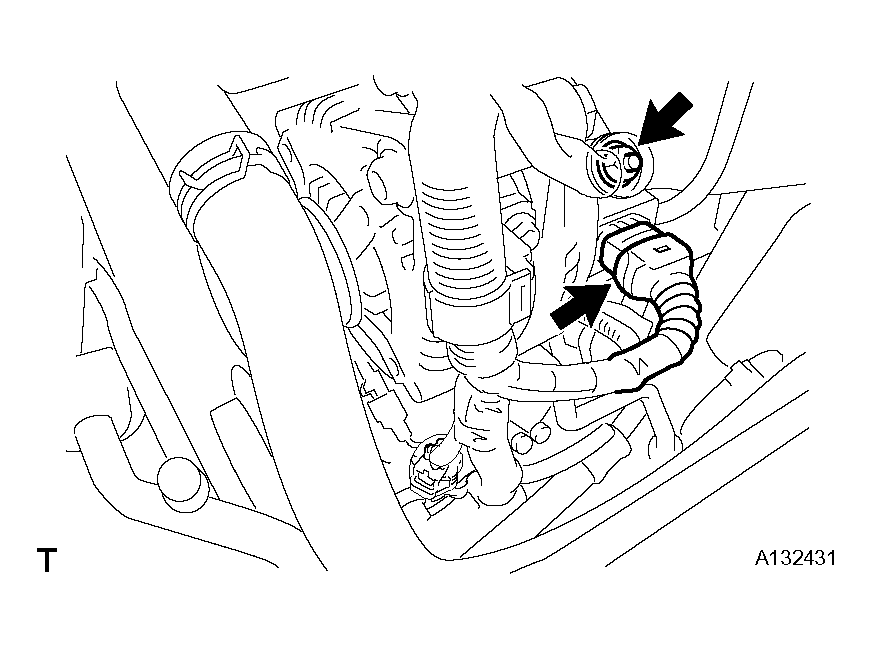

2. Remove the terminal cap.
3. Remove the nut and disconnect the generator wire from terminal B.
4. Disconnect the generator connector from the generator.

  Fig 2: Disconnecting Wire Harness Connectors Terminal From Generator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

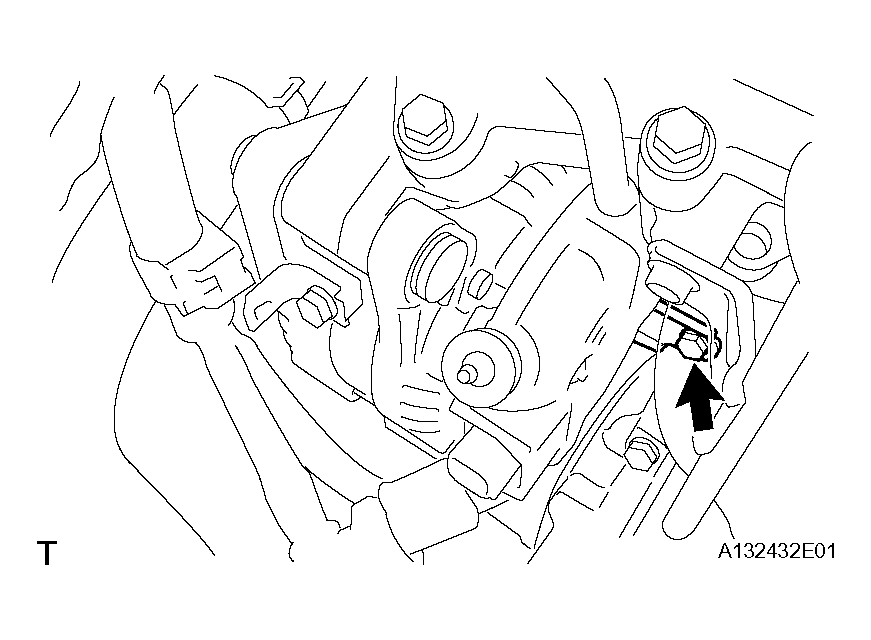

5. Remove the bolt from the cylinder block.

  Fig 3: Removing Bolt From Cylinder Block
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

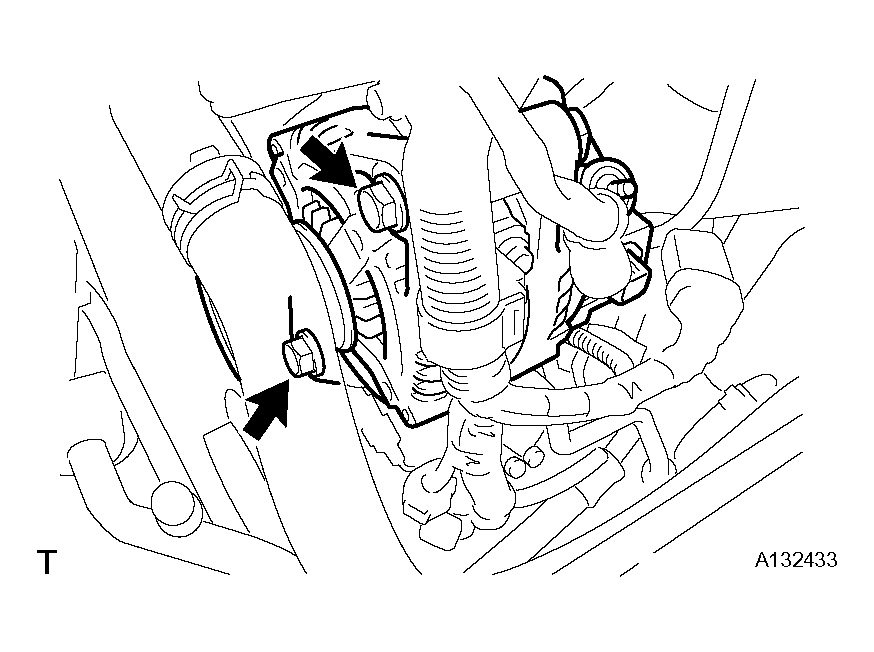

6. Remove the 2 bolts and generator.

  Fig 4: Removing Generator Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
