Drive Belt: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT RADIATOR RESERVOIR TANK ASSEMBLY
1. Remove the 2 bolts and disconnect the reservoir tank.

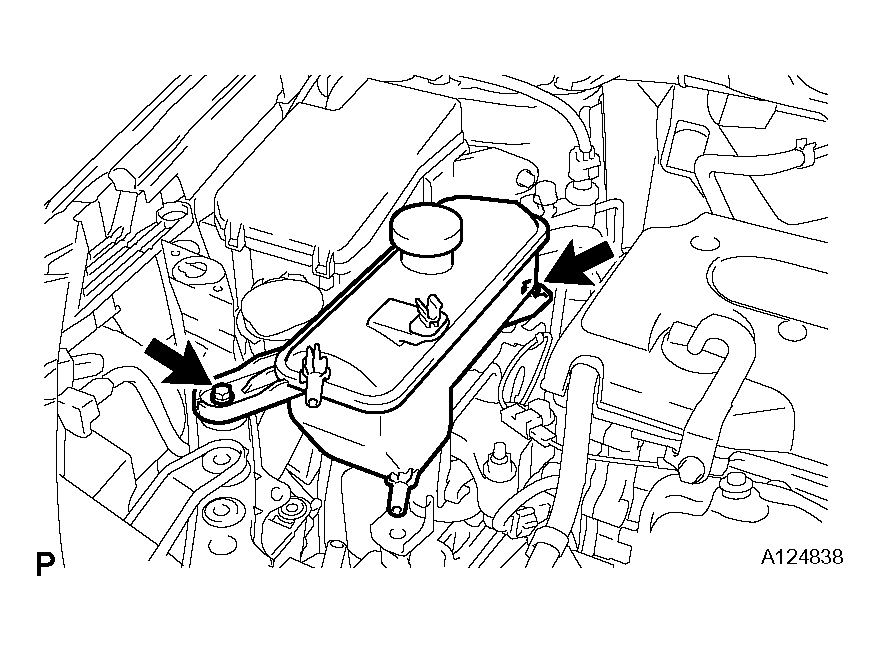

  Fig 1: Identifying Reservoir Tank Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY (See REMOVAL )
REMOVE ENGINE UNDER COVER RH
1. Remove the 2 clips and engine under cover.
REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT RH
1. Remove the 4 bolts and reinforcement.

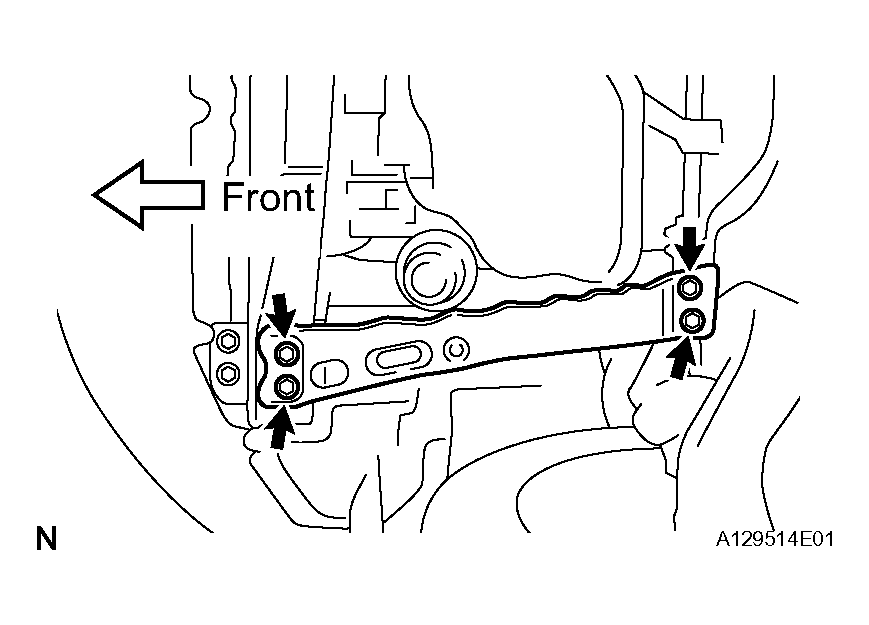

  Fig 2: Identifying Front Suspension Member Reinforcement Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FAN AND GENERATOR V BELT
1. Rotate the tensioner pulley counterclockwise to loosen the belt tension. Then remove the V-ribbed belt.

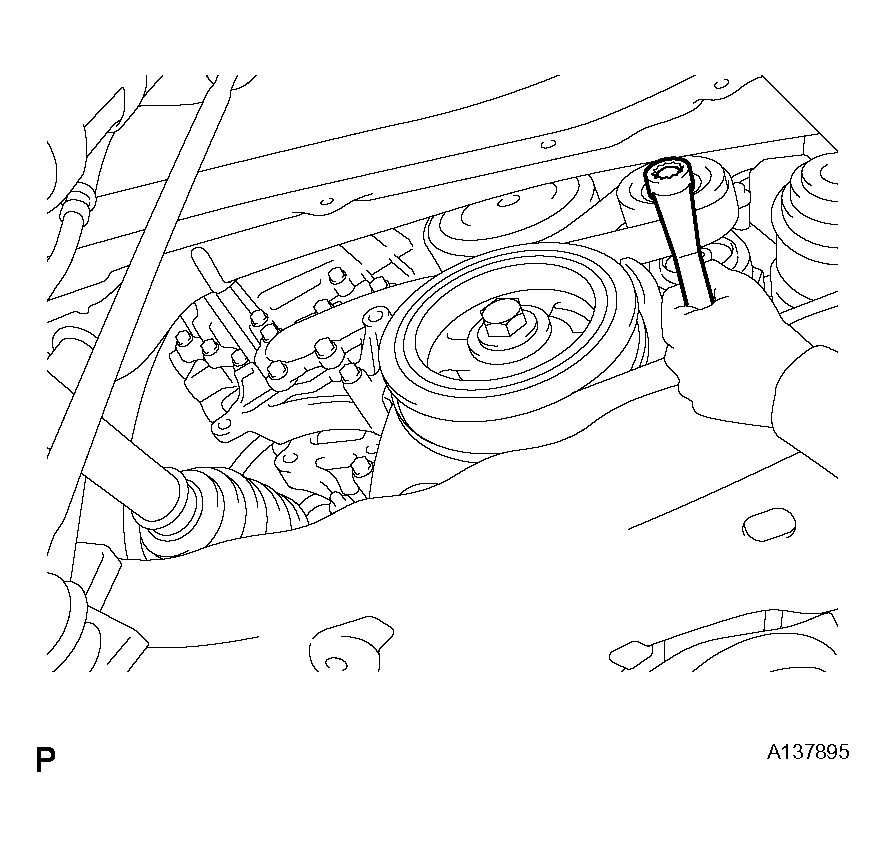

  Fig 3: Removal/Installatin Of V-Ribbed Belt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. While turning the belt tensioner counterclockwise, align its holes, and then insert the 5 mm bi-hexagon wrench into the holes to fix the V-ribbed belt tensioner in place.

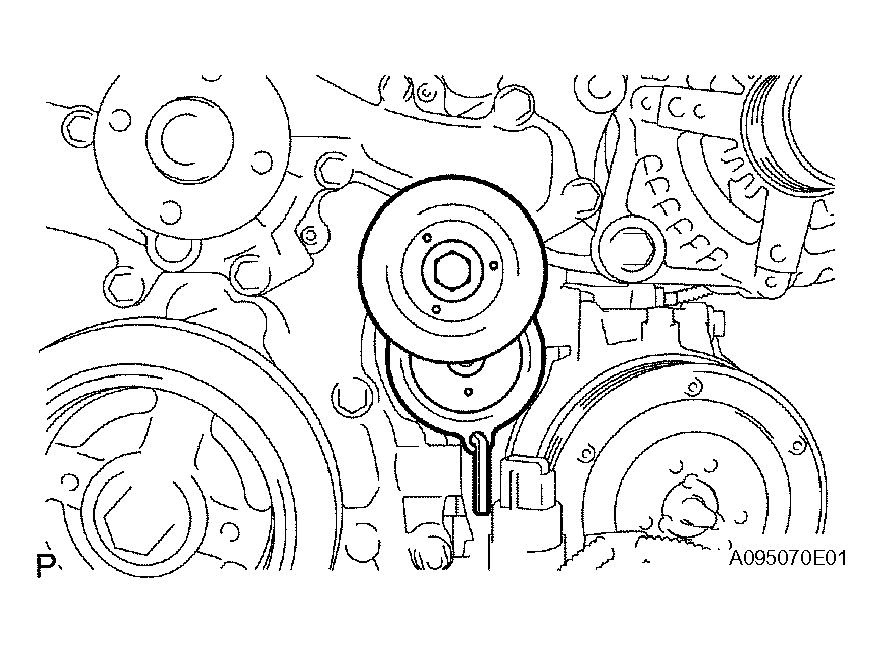

  Fig 4: Inserting Bi-Hexagon Wrench Into Holes To Fix V-Ribbed Belt Tensioner
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
