Back Door: Disassembly

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE BACK DOOR CENTER GARNISH
1. Using a screwdriver, detach the 4 claws and 4 clips and remove the garnish.
  HINT:

  Tape the screwdriver tip before use.

  Fig 1: Detaching Claws And Clips And Removing Back Door Center Garnish
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BACK DOOR SIDE GARNISH LH
1. Using a screwdriver, detach the 2 claws and 2 clips and remove the garnish.

  Fig 2: Detaching Claws And Removing Back Door Side Garnish
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BACK DOOR SIDE GARNISH RH
HINT:

Use the same procedures described for the LH side.
REMOVE BACK DOOR COURTESY LIGHT ASSEMBLY (See appropriate step(s) under REMOVAL )
REMOVE BACK DOOR TRIM BOARD
1. Using a screwdriver, detach the 13 clips and remove the trim board.

  Fig 3: Detaching Clips And Removing Trim Board
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - Tape the screwdriver tip before use.
  - If the screwdriver cannot reach the clips, pull on the lower trim to remove it.
2. Remove the 5 screws and the back door trim pocket.
3. w/Rear Speaker: Using a screwdriver, detach the claws and remove the rear speaker grille.
  HINT:

  Tape the screwdriver tip before use.
REMOVE REAR WIPER ARM AND BLADE ASSEMBLY (See appropriate step(s) under REMOVAL )
REMOVE REAR SPOILER (See REMOVAL )
REMOVE CENTER STOP LIGHT ASSEMBLY (See appropriate step(s) under REMOVAL )
REMOVE LOWER BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY LH (See appropriate step(s) under REMOVAL )
REMOVE UPPER BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY LH (See appropriate step(s) under REMOVAL )
REMOVE LOWER BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY RH (See appropriate step(s) under REMOVAL )
REMOVE UPPER BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY RH (See appropriate step(s) under INSTALLATION )

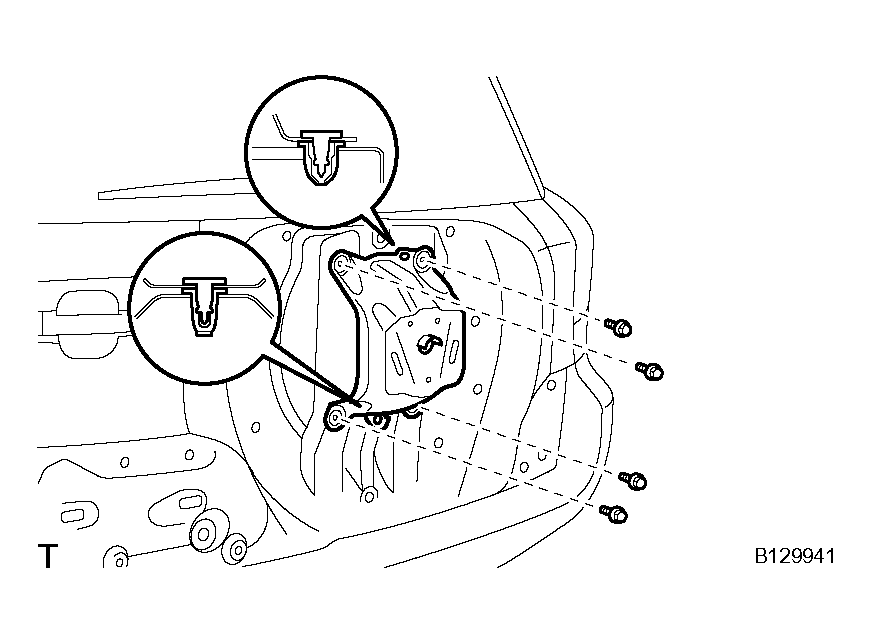

REMOVE SPARE WHEEL CARRIER BRACKET SUBASSEMBLY
1. Using a clip remover, remove the 2 clips.
2. Remove the 4 bolts and bracket.

  Fig 4: Removing Spare Wheel Carrier
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR WIPER MOTOR ASSEMBLY (See INSPECTION )

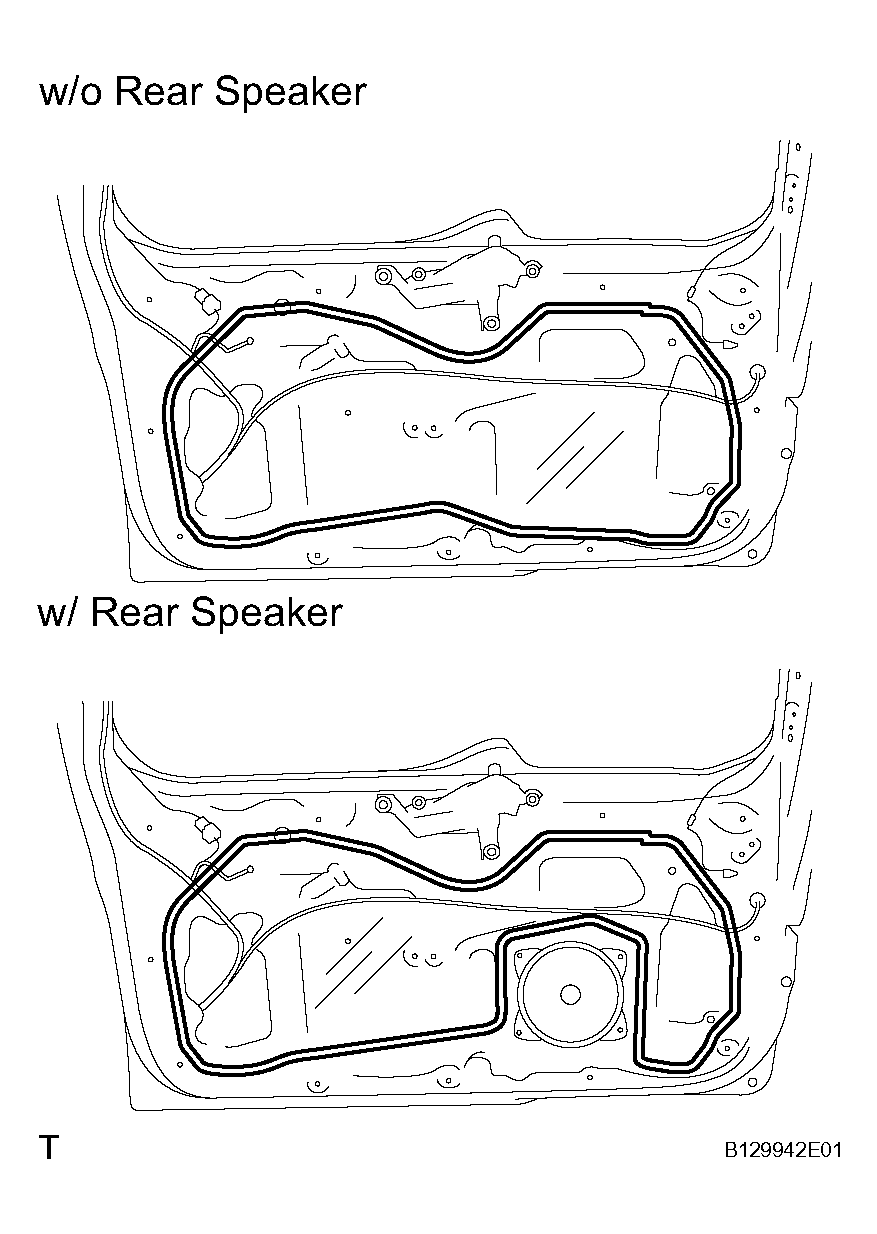

REMOVE BACK DOOR SERVICE HOLE COVER
1. Disconnect each connector and remove the service hole cover.

  Fig 5: Removing Back Door Service Hole Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Remove the remaining tape on the door.
REMOVE STEREO COMPONENT REAR SPEAKER ASSEMBLY (w/Rear Speaker) (See appropriate step(s) under REMOVAL )
REMOVE BACK DOOR LOCK ASSEMBLY
1. Disconnect the connector.
2. Using a T30 "Torx" socket, remove the 3 screws.
  NOTE: Be careful when removing the bolts as the door lock may fall and become damaged.

  Fig 6: Removing Back Door Lock Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Slide the door lock downward to disconnect the back door lock open rod from the door lock. Then remove the door lock.
  HINT:

  Remove the door lock through the service hole.

  Fig 7: Disconnecting Back Door Lock Open Rod From Door Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BACK DOOR OUTSIDE HANDLE COVER
1. Remove the hole plug.
2. Using a T30 "Torx" socket, loosen the screw and remove the cover.
  HINT:

  Loosen but do not remove the screw.

  Fig 8: Loosening Back Door Outside Handle Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BACK DOOR OUTSIDE HANDLE
1. Remove the handle by sliding and pulling it in the direction indicated by the arrow in Fig 9.

  Fig 9: Removing Back Door Outside Handle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

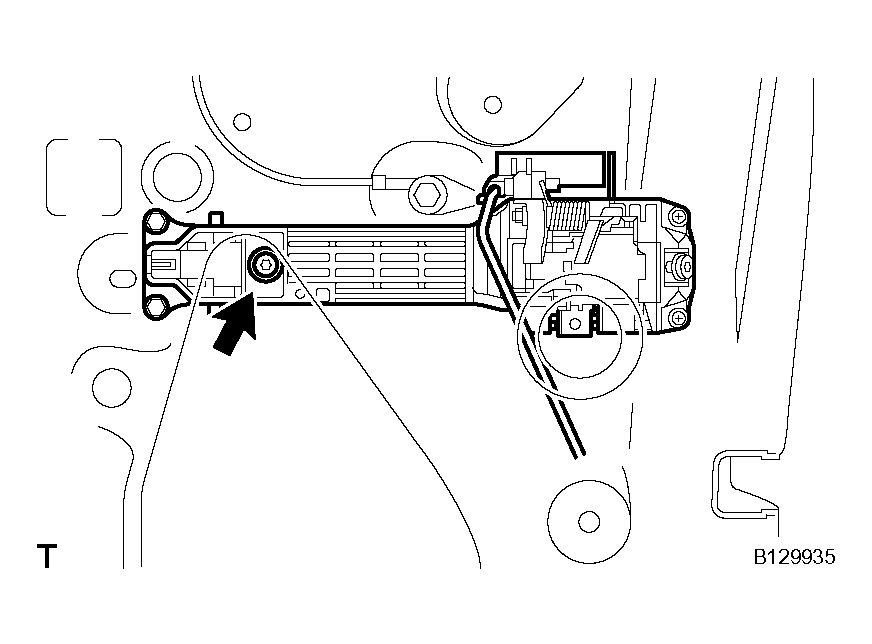

REMOVE BACK DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY
1. Using a T30 "Torx" socket, loosen the screw of the frame.
  HINT:

  Loosen but do not remove the screw.

  Fig 10: Removing Back Door Outside Handle Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using pliers, pinch the clip.
  NOTE: Be sure to remove the outside handle frame together with the clip, as the clip will be damaged if it remains attached to the door panel.

  Fig 11: Identifying Handle Frame Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Detach the claw and remove the frame.

  Fig 12: Detaching Claw And Removing Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Remove the frame through the service hole.
4. Remove the front door lock open rod.
REMOVE BACK DOOR OUTSIDE HANDLE FRONT PAD
1. Detach the 2 claws and remove the pad.

  Fig 13: Detaching Claws And Removing Back Door Outside Handle Front Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BACK DOOR OUTSIDE HANDLE REAR PAD
1. Detach the 2 claws and remove the pad.

  Fig 14: Detaching Claws And Removing Back Door Outside Handle Rear Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

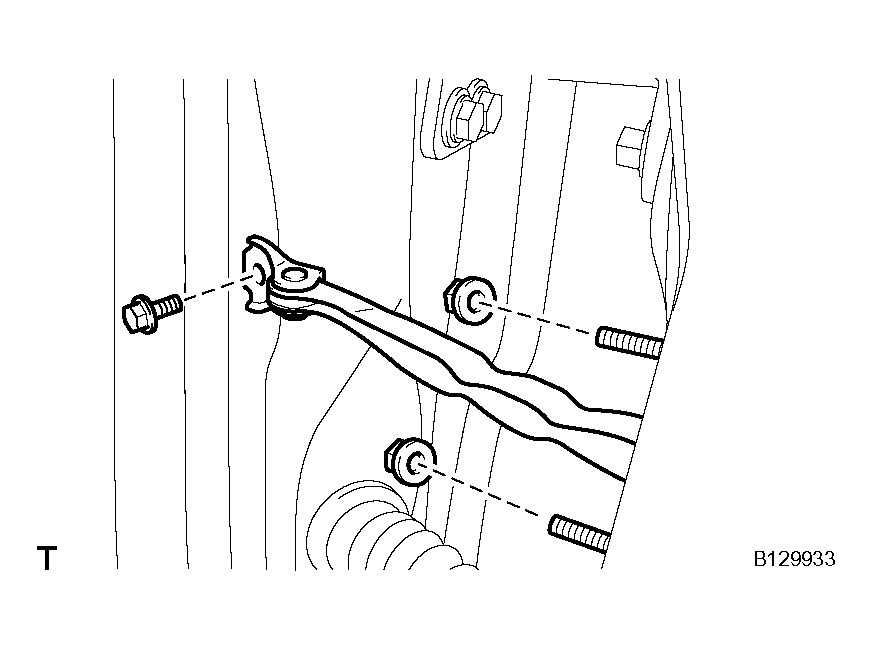

REMOVE BACK DOOR CHECK ASSEMBLY
1. Remove the bolt, 2 nuts and door check.
  HINT:

  Remove the door check through the service hole.
REMOVE BACK DOOR SIDE FEMALE STOPPER
1. Remove the 2 bolts and stopper.
REMOVE CUSHION
1. Remove the 2 cushions.
