Back Door Outside Garnish: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL UPPER BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY RH
    1. Attach the 6 clips to install the back door outside garnish.

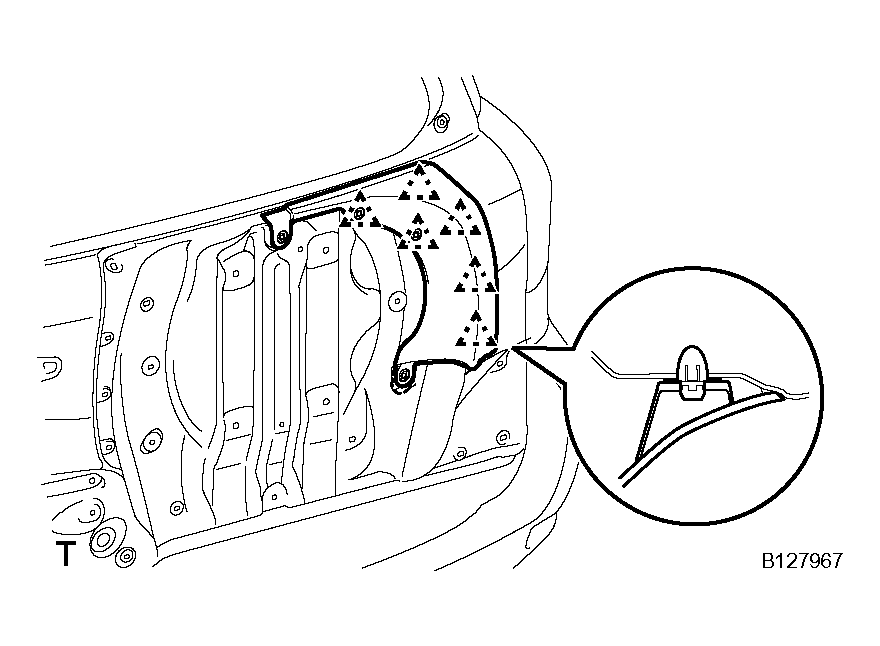

      Fig 1: Identifying Back Door Outside Garnish
      G04492341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY RH
    1. Install the back door outside garnish.
    2. Attach the claw and 5 clips.

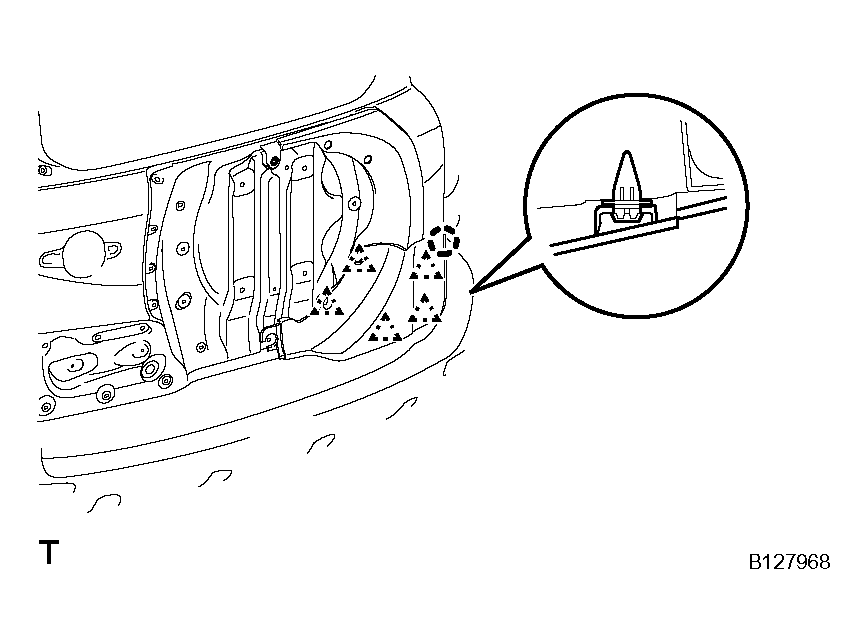

      Fig 2: Identifying Back Door Outside Garnish
      G04492342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL UPPER BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY LH
    1. Attach the 6 clips to install the back door outside garnish.
    2. Install the screw.

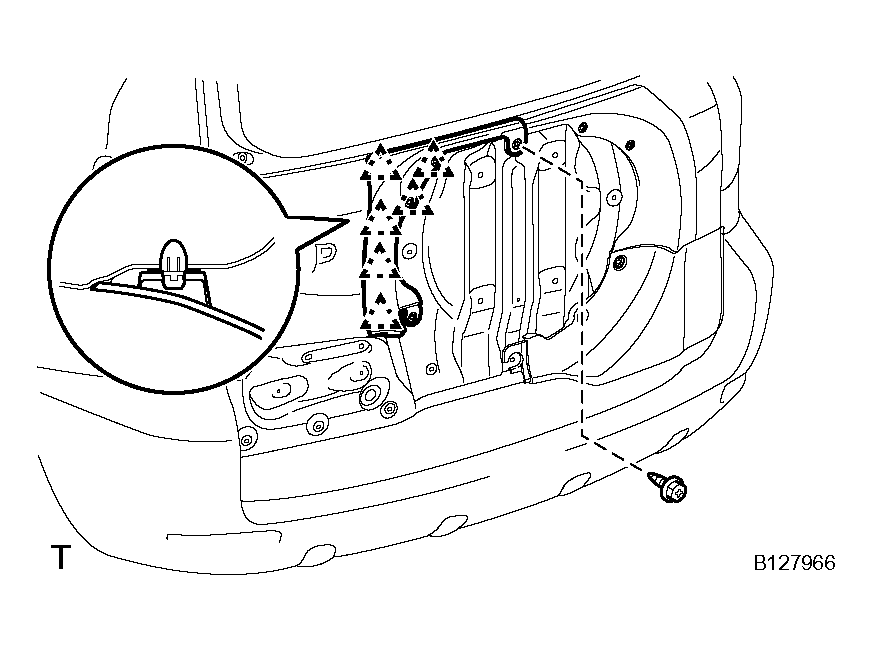

      Fig 3: Identifying Upper Back Door Outside Garnish
      G04492343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL LOWER BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY LH
    1. Install the license plate light (see INSTALLATION ).
    2. Connect the connector.
    3. Attach the 7 clips to install the back door outside garnish.
    4. Install the screw.

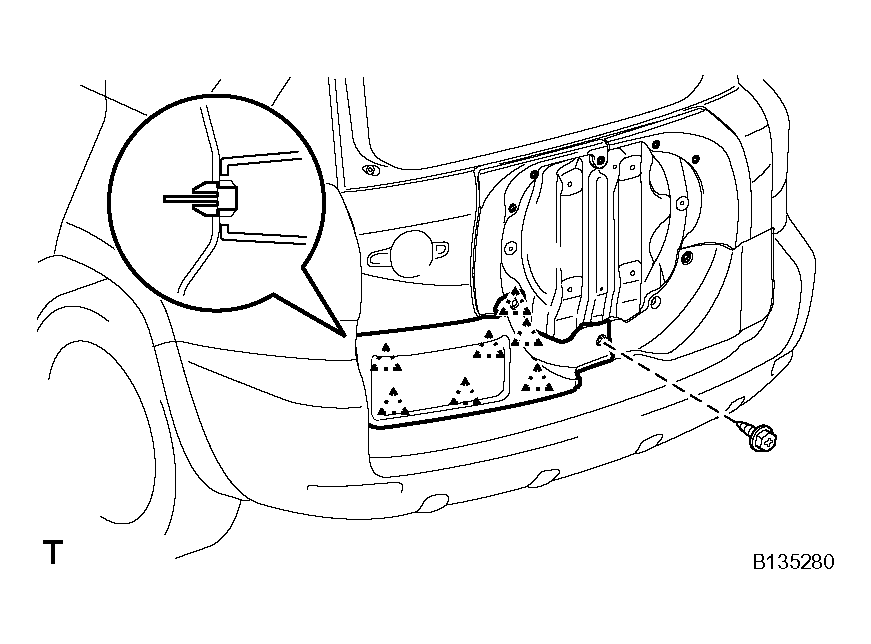

    Fig 4: Identifying Back Door Outside Garnish
    G04492344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL BACK DOOR TRIM BOARD (See  REASSEMBLY  )
  6. INSTALL BACK DOOR COURTESY LIGHT SWITCH ASSEMBLY (See  INSTALLATION  )
  7. INSTALL BACK DOOR SIDE GARNISH LH (See  REASSEMBLY  )
  8. INSTALL BACK DOOR SIDE GARNISH RH (See  REASSEMBLY  )
  9. INSTALL BACK DOOR GARNISH CENTER (See  REASSEMBLY  )
  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
