Lower Instrument Panel: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

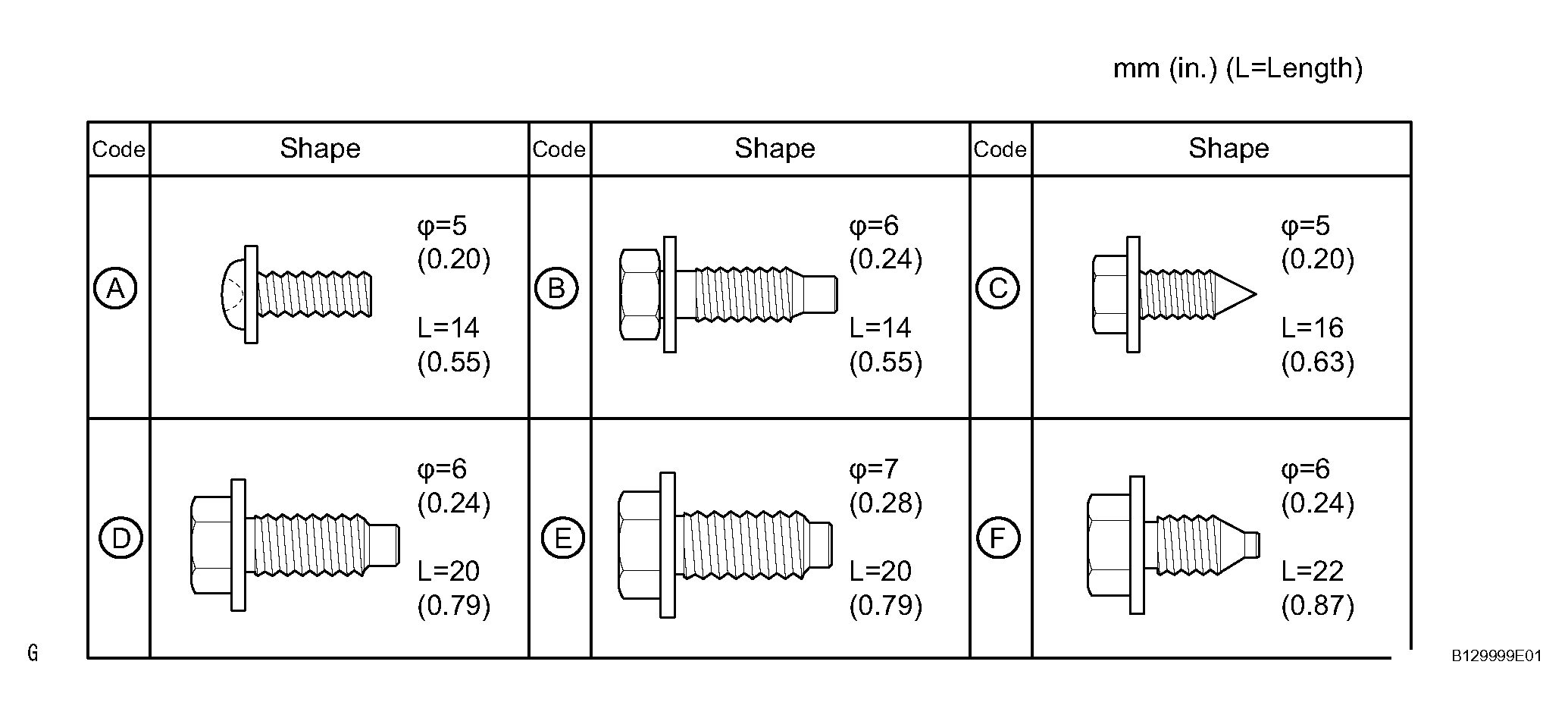

  1. TABLE OF BOLT, SCREW AND NUT

    HINT:

    All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabet codes in Fig 1.

    Fig 1: Identifying Table Of Relevant Bolts, Screws & Nuts
    G04491545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  3. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
    1. Remove the instrument panel (see REMOVAL ).
  4. REMOVE STEERING PAD ASSEMBLY (See  REMOVAL  )
  5. REMOVE STEERING WHEEL ASSEMBLY (See appropriate step(s) under  REMOVAL  )
  6. REMOVE STEERING COLUMN COVER (See appropriate step(s) under  REMOVAL  )
  7. REMOVE SPIRAL CABLE SUB-ASSEMBLY (See  REMOVAL  )
  8. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY
  9. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY
  10. REMOVE HEATER CONTROL SUB-ASSEMBLY (for Automatic Air Conditioning System) (See  REMOVAL  )
  11. REMOVE HEATER CONTROL SUB-ASSEMBLY (for Manual Air Conditioning System) (See  REMOVAL  )

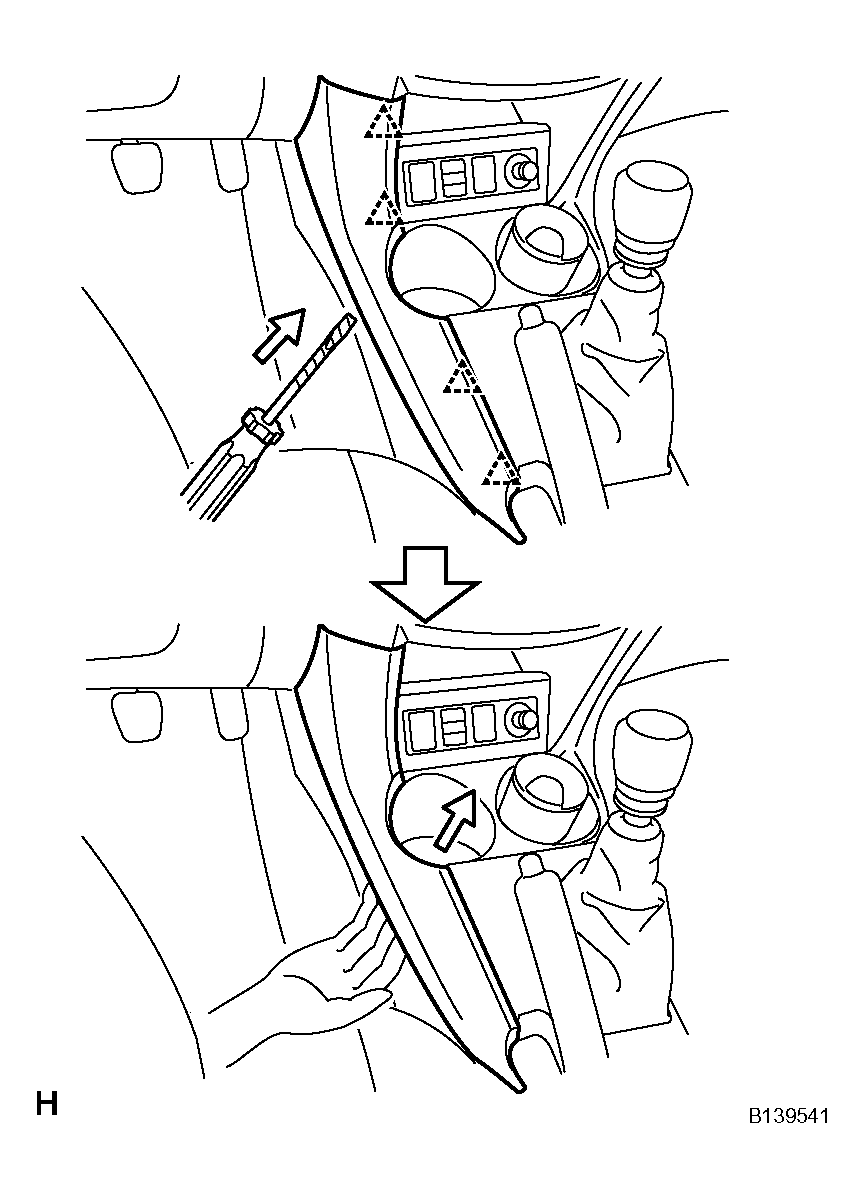

  12. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH
    1. Using a screwdriver, detach the 4 clips and upper panel garnish.

      HINT:

      Tape the screwdriver tip before use.

      Fig 2: Removing No. 1 Console Upper Panel Garnish
      G04491546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

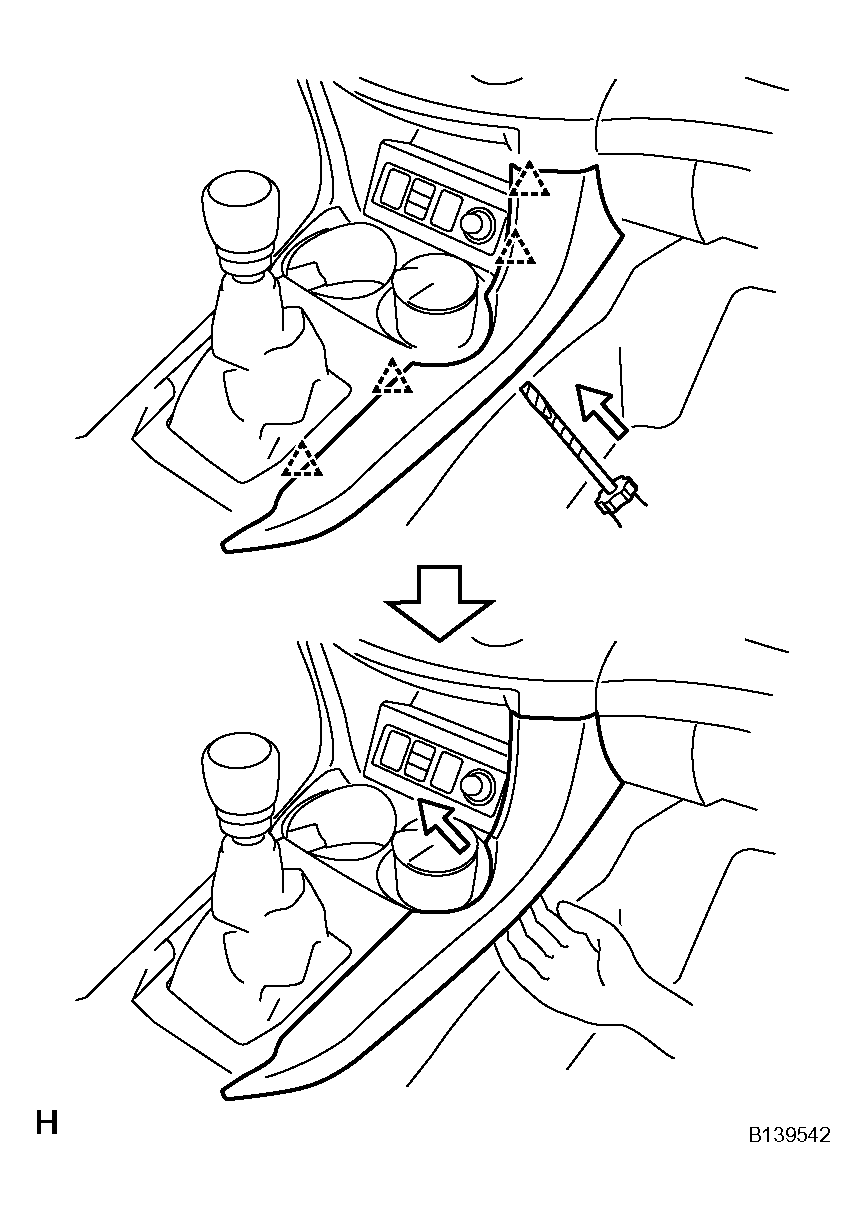

  13. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH
    1. Using a screwdriver, detach the 4 clips and upper panel garnish.

      HINT:

      Tape the screwdriver tip before use.

      Fig 3: Removing No. 2 Console Upper Panel Garnish
      G04491547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Remove the shift lever knob.
    2. Using a screwdriver, detach the 2 clips, 4 claws and remove the upper console panel then disconnect the connector.

      HINT:

      Tape the screwdriver tip before use.

      Fig 4: Removing Upper Console Panel Sub-Assembly
      G04491548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE SWITCH BASE
    1. Detach the 2 clips and 2 claws.
    2. Disconnect the connectors and remove the switch base.
      Fig 5: Removing Switch Base
      G04491549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

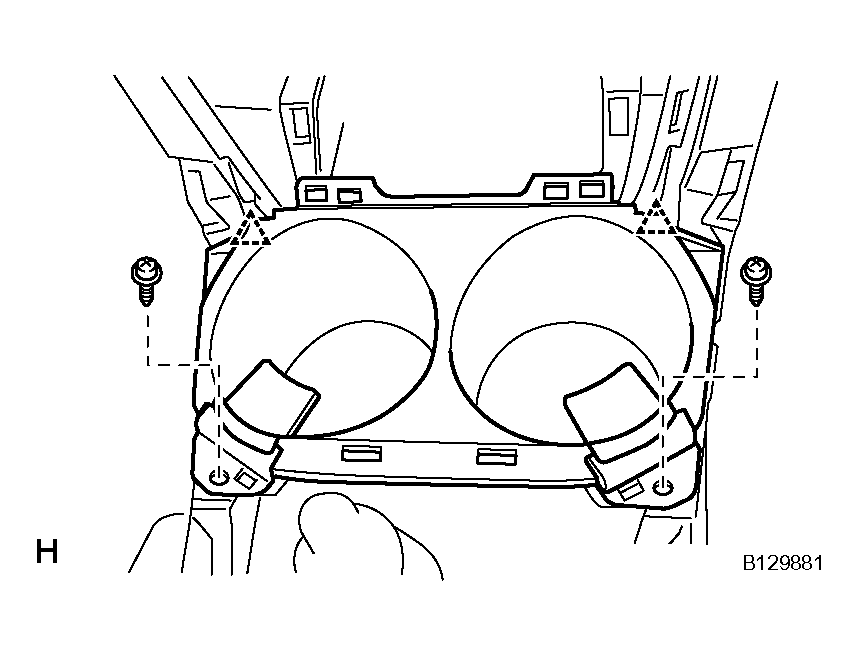

  16. REMOVE CONSOLE CUP HOLDER BOX
    1. Remove the 2 screws.
    2. Detach the 2 clips and remove the cup holder box.
      Fig 6: Removing Console Cup Holder Box
      G04491550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE UPPER REAR CONSOLE PANEL SUBASSEMBLY
    1. Using a screwdriver, detach the 4 claws and 2 clips.

      HINT:

      Tape the screwdriver tip before use.

    2. Disconnect the connector and remove the upper rear console panel.
      Fig 7: Removing Upper Rear Console Panel Sub-assembly
      G04491551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE CONSOLE REAR END PANEL
    1. Using a screwdriver, detach the 6 claws and remove the console rear end panel.

      HINT:

      Tape the screwdriver tip before use.

      Fig 8: Detaching Claws Of Console Rear End Panel
      G04491552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE CONSOLE REAR END PANEL (RSE Type)
    1. Using a screwdriver, detach the 4 claws, 2 clips and remove the console rear end panel then disconnect the connectors.

      HINT:

      Tape the screwdriver tip before use.

      Fig 9: Detaching Claws & Clips Of Console Rear End Panel (RSE Type)
      G04491553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE NO. 1 INSTRUMENT PANEL BRACKET COVER INNER LH
    1. Detach the 2 claws and remove the instrument panel bracket cover.
      Fig 10: Removing No. 1 Instrument Panel Bracket Cover
      G04491554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE NO. 1 INSTRUMENT PANEL BRACKET COVER INNER RH
    1. Detach the 2 claws and remove the instrument panel bracket cover.
      Fig 11: Removing No. 1 Instrument Panel Bracket Cover Inner RH
      G04491555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY
    1. Remove the console box carpet.
    2. Remove the 2 bolts and 2 screws.
    3. Disconnect the connector and remove the rear console box.

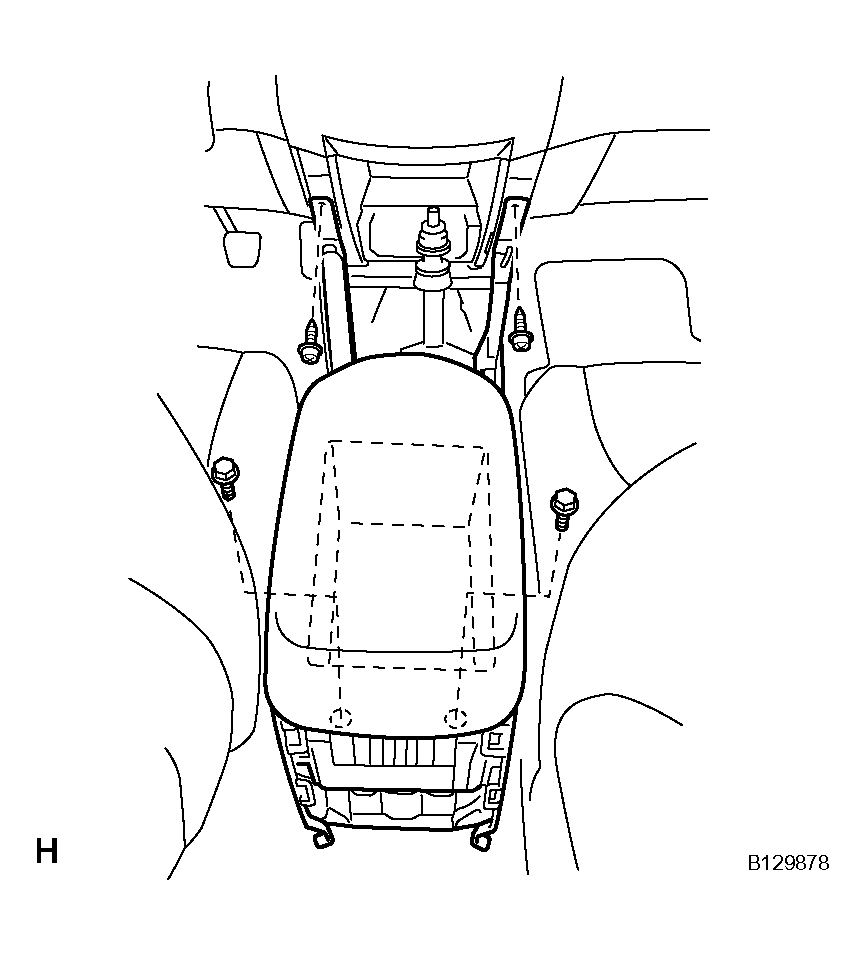

      Fig 12: Removing Rear Console Box Sub-Assembly
      G04491556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

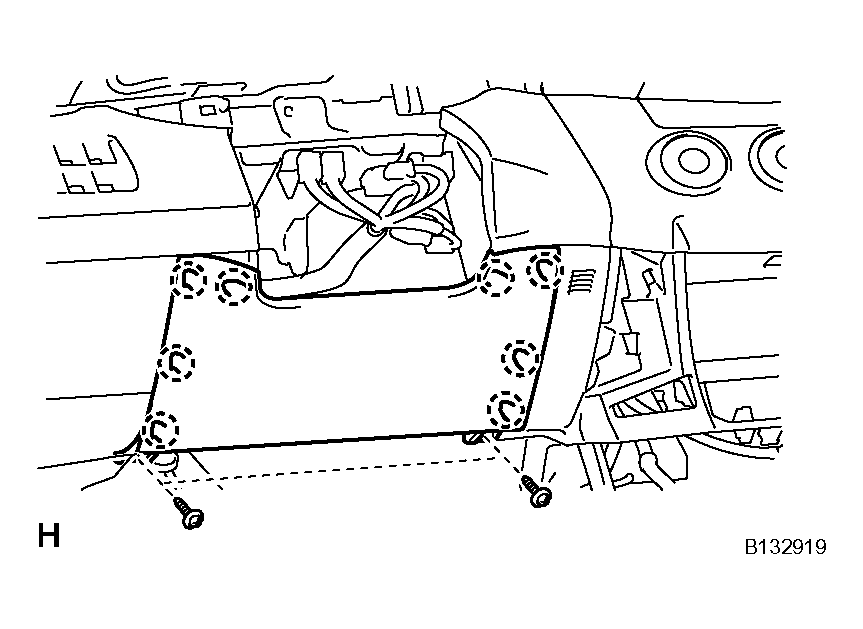

  23. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL
    1. Remove the 2 screws.
    2. Using a screwdriver detach the 8 claws and remove the lower instrument panel finish panel.

      HINT:

      Tape the screwdriver tip before use.

      Fig 13: Removing Lower Instrument Panel Finish Panel
      G04491557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Detach the 2 claws and remove the instrument panel under cover.
      Fig 14: Removing No. 2 Instrument Panel Under Cover Sub-Assembly
      G04491558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Open the glove compartment door.

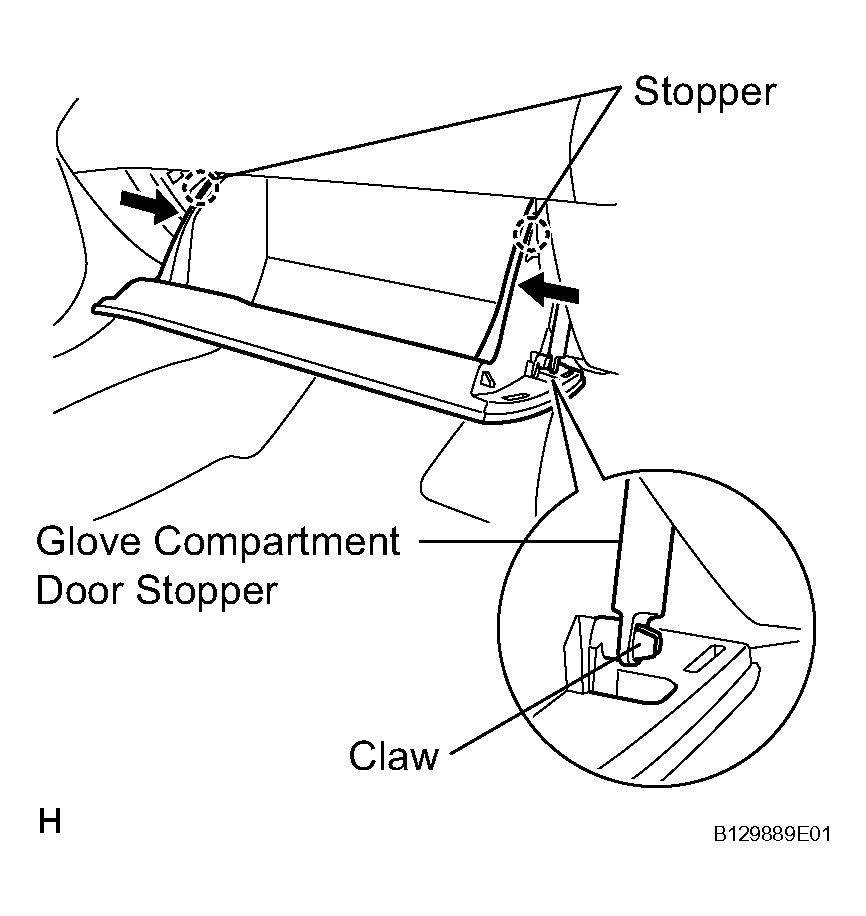

    2. Detach the claw from the glove compartment door stopper.
    3. While pushing in the sides of the glove compartment door as indicated by the arrows in Fig 15, open the door to release it from the 2 stoppers.
      Fig 15: Releasing Doors From Stoppers
      G04491559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Open the door until it is horizontal.
      Fig 16: Opening Glove Compartment Door
      G04491560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Pull the glove compartment door toward the rear of the vehicle to detach the 2 hinges and remove the glove compartment door.
      Fig 17: Removing Glove Compartment Door
      G04491561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE NO. 1 SWITCH HOLE BASE
    1. Using a screwdriver, detach the 4 clips.
    2. Disconnect the connectors and remove the switch hole base.
      Fig 18: Removing No. 1 Switch Hole Base
      G04491562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE INSTRUMENT PANEL SAFETY PAD COVER
    1. Using a screwdriver, detach the 4 claws and remove the instrument panel safety pad cover.

      HINT:

      Tape the screwdriver tip before use.

      Fig 19: Removing Instrument Panel Safety Pad Cover
      G04491563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE INSTRUMENT PANEL BOX
    1. Remove the screw.
    2. Using a screwdriver, detach the 6 clips and remove the instrument panel box.

      HINT:

      Tape the screwdriver tip before use.

      Fig 20: Removing Instrument Panel Box
      G04491564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

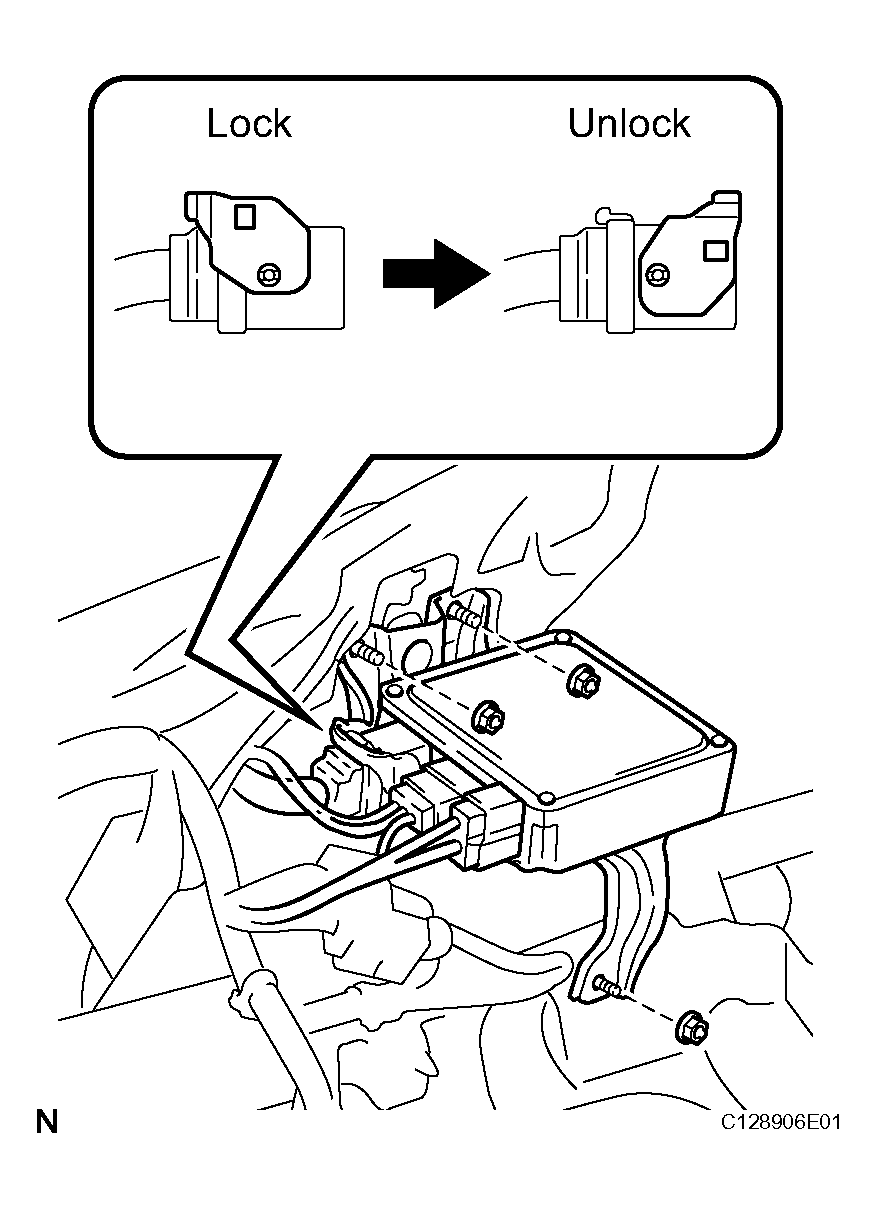

  29. REMOVE POWER STEERING ECU ASSEMBLY
    1. Disconnect the connectors.
    2. Remove the 3 nuts and ECU.
      Fig 21: Removing Power Steering ECU Assembly
      G04491565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

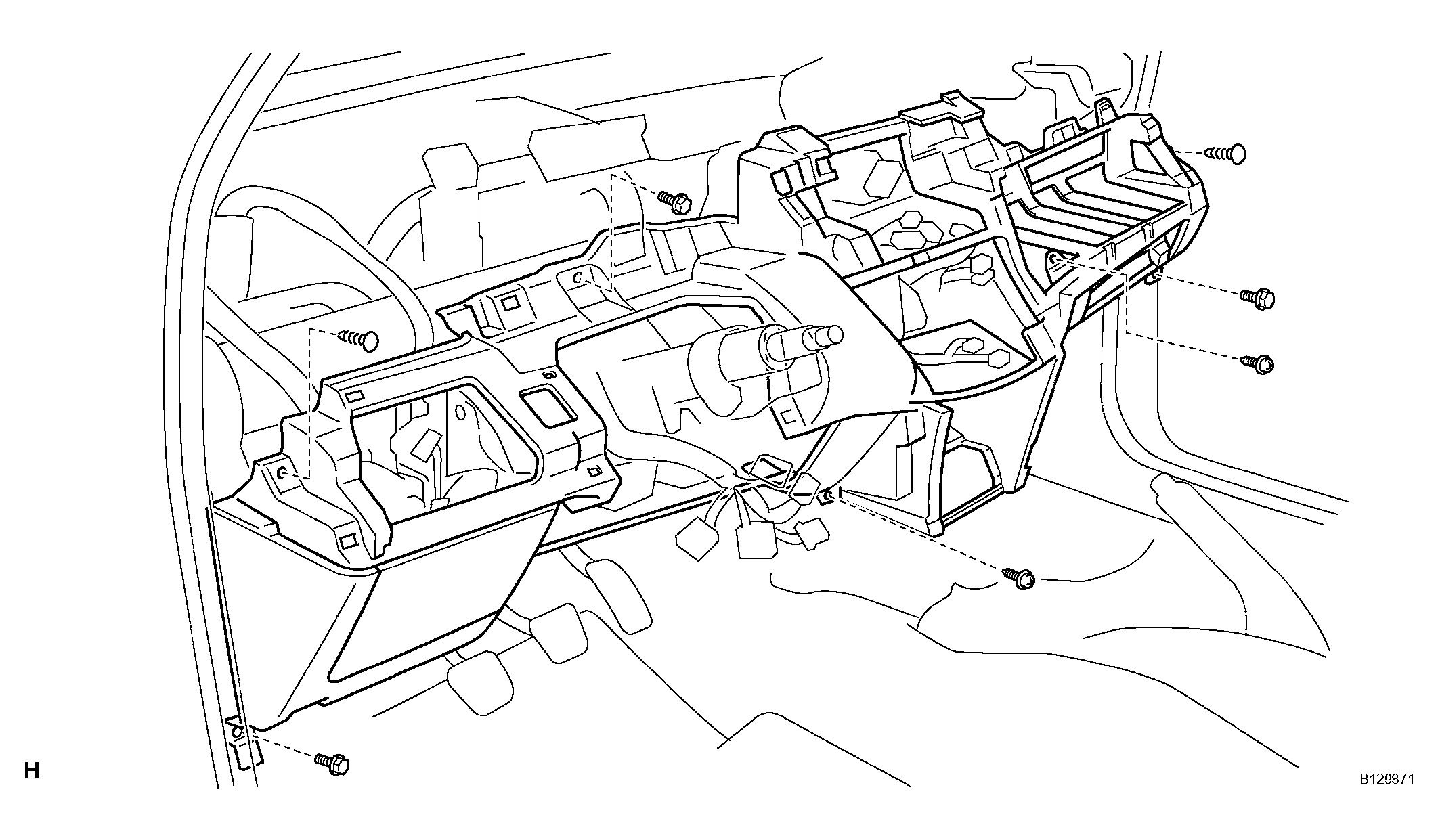

  30. REMOVE LOWER INSTRUMENT PANEL
    1. Remove the 2 bolts, 3 screws and 2 clips.
    2. Disconnect the connectors and clamps and remove the lower instrument panel.
    Fig 22: Removing Lower Instrument Panel
    G04491566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
