Automatic Transaxle Assembly: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
    1. Remove the engine with transaxle (see ).
  2. DRAIN AUTOMATIC TRANSAXLE FLUID
    1. Remove the drain plug and gasket, and drain the ATF.
    2. Install a new gasket and the drain plug.

      Torque: 47 N*m (479 kgf*cm, 35 ft.*lbf)

  3. REMOVE STARTER ASSEMBLY
    1. Disconnect the starter connector.
    2. Open the terminal cap, and remove the nut and disconnect the starter wire.

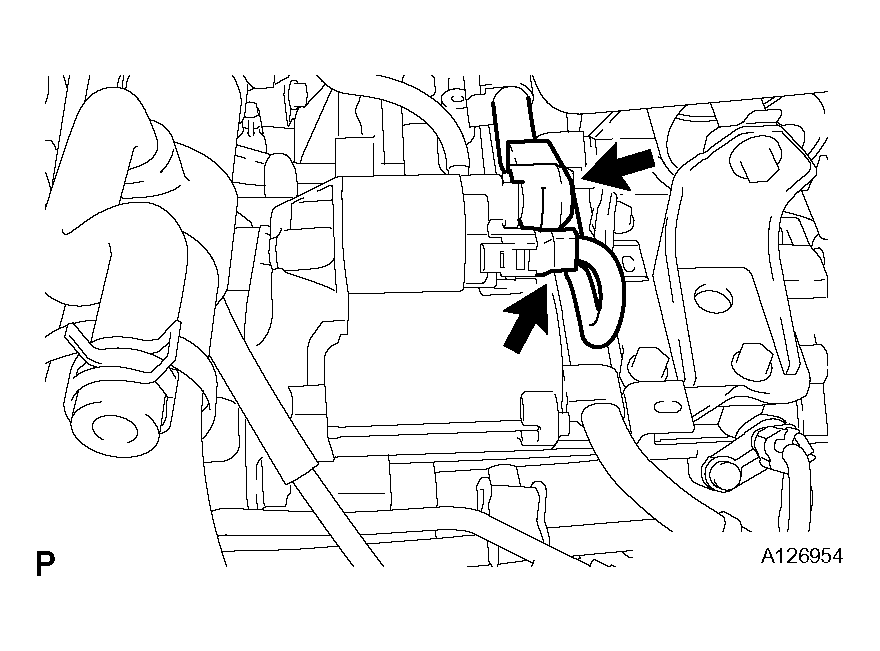

      Fig 1: Disconnecting Starter Connector
      G04487671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and starter.

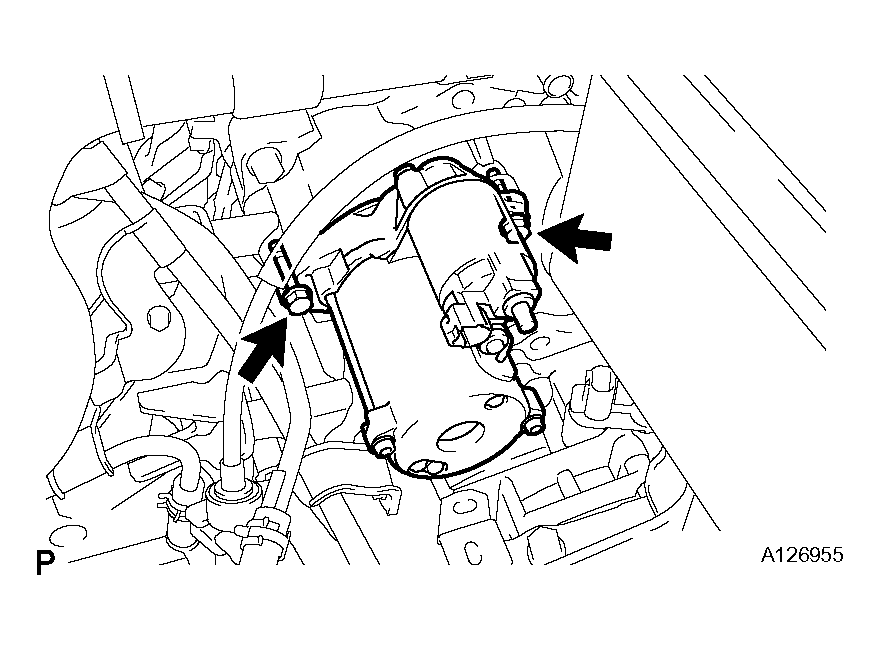

      Fig 2: Removing Bolts And Starter
      G04487672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT WIRE HARNESS
    1. Disconnect the park/neutral position switch connector.
    2. Disconnect the transaxle wire connector.
    3. Disconnect the 2 speed sensor connectors.
    4. Disconnect the wire harness clamps.
  5. REMOVE TRANSMISSION OIL COOLER HOSE AND TUBE
    1. Remove the oil cooler hoses and tube (see REMOVAL  ).

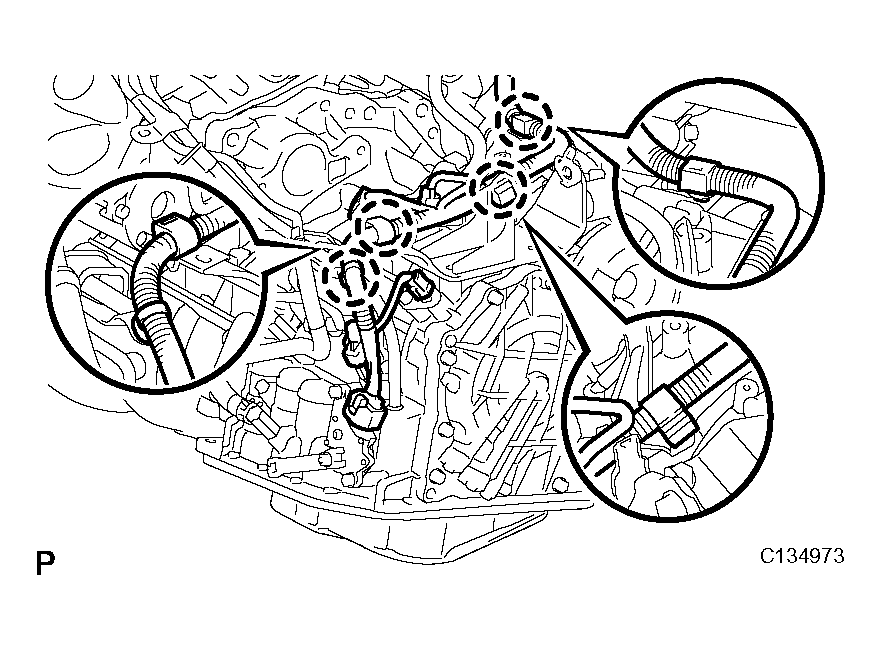

      Fig 3: Removing Oil Cooler Hoses And Tube
      G04487673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR ENGINE MOUNTING BRACKET
    1. Remove the 3 bolts and mounting bracket.

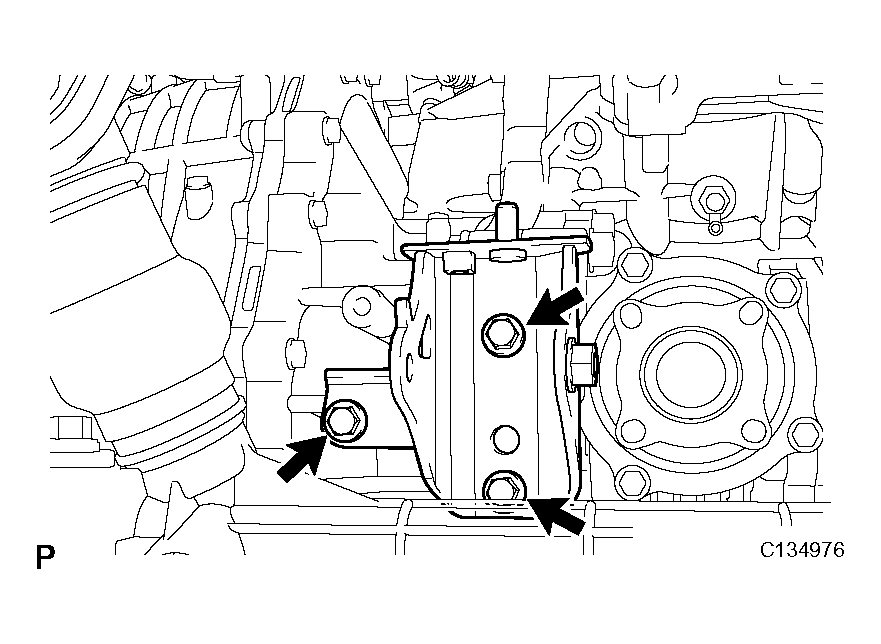

      Fig 4: Removing Bolts And Mounting Bracket
      G04487674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT ENGINE MOUNTING BRACKET
    1. Remove the 4 bolts and mounting bracket.

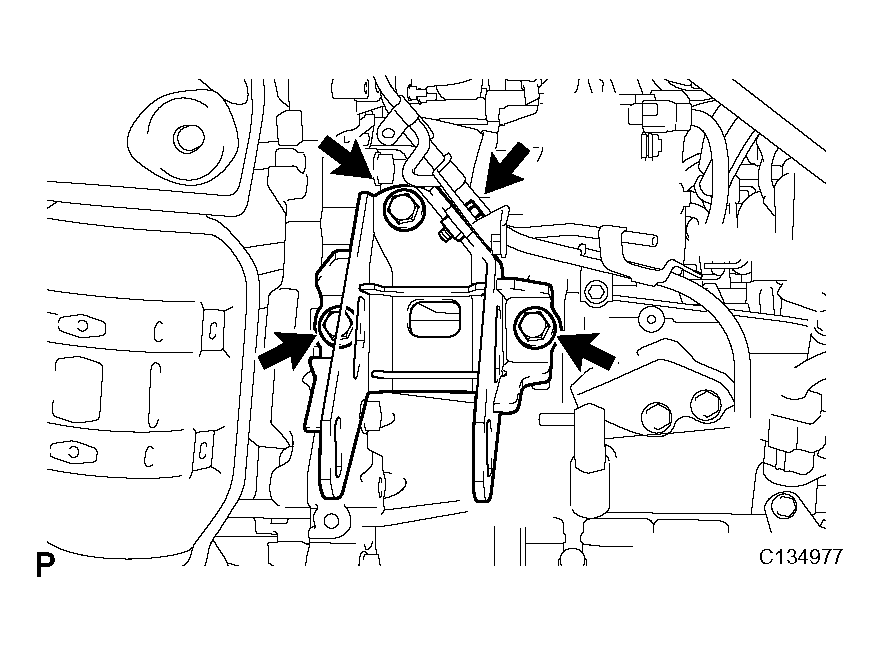

      Fig 5: Removing Bolts And Mounting Bracket
      G04487675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE ENGINE MOUNTING BRACKET LH
    1. Remove the 4 bolts and mounting bracket.
  9. REMOVE TRANSFER ASSEMBLY
    1. Remove the transfer (see REMOVAL ).

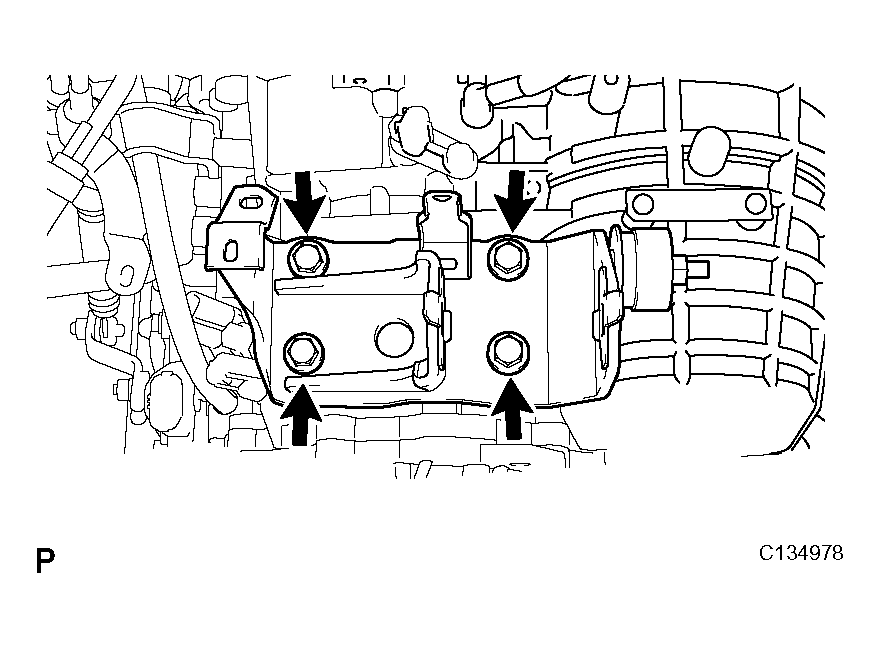

      Fig 6: Removing Bolts And Mounting Bracket
      G04487676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
    1. Remove the 2 bolts and flywheel housing under cover.

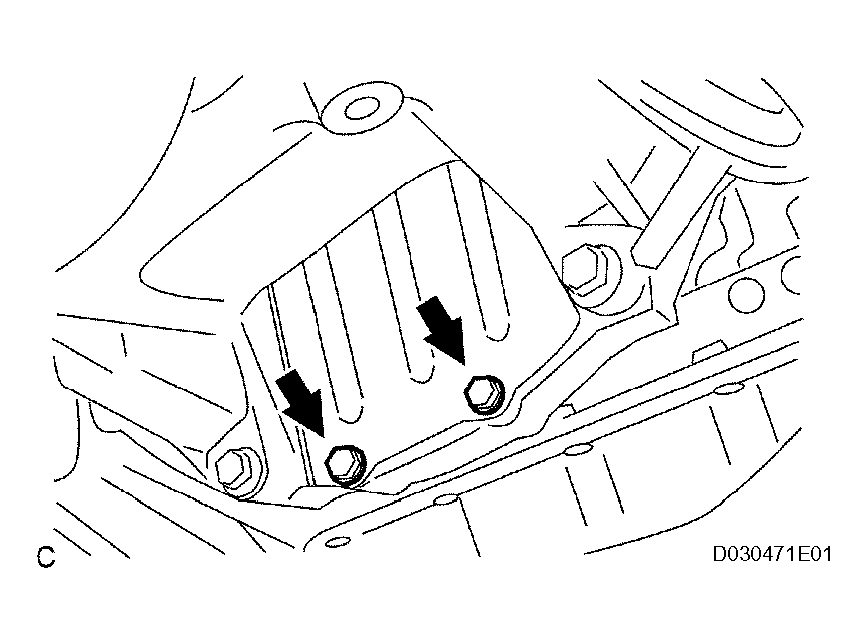

      Fig 7: Removing Bolts And Flywheel Housing Under Cover
      G04487677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the crankshaft to gain access and remove the 6 bolts while holding the crankshaft pulley bolt with a wrench.

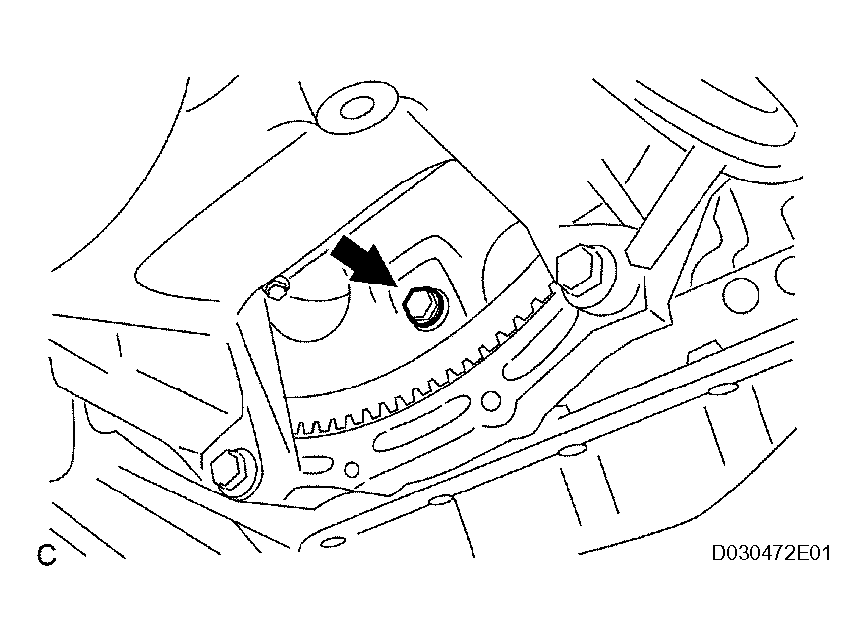

      Fig 8: Removing Crankshaft Bolts
      G04487678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 lower side mounting bolts.

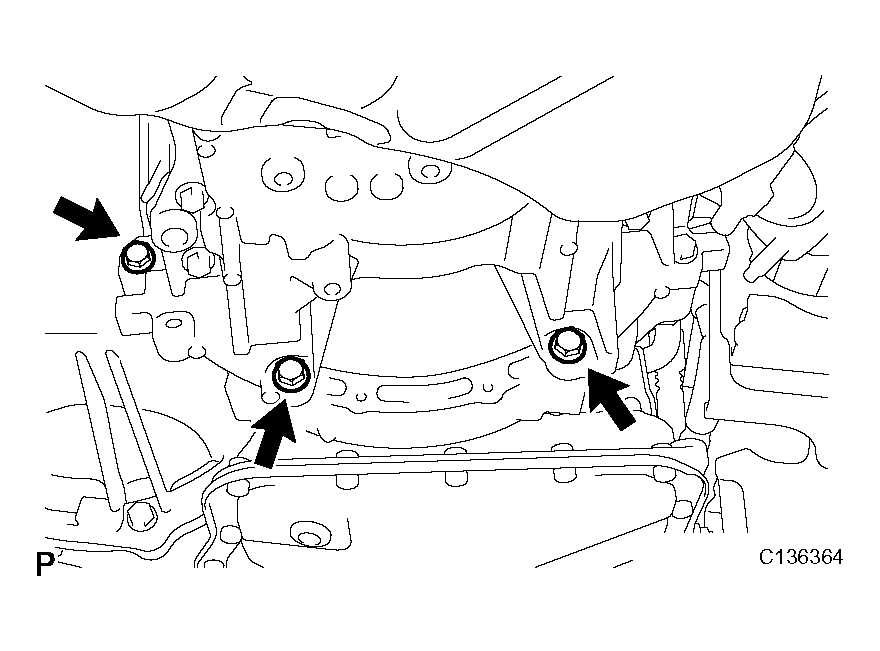

      Fig 9: Removing Lower Side Mounting Bolts
      G04487679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 7 upper side mounting bolts.
    5. Separate and remove the automatic transaxle.

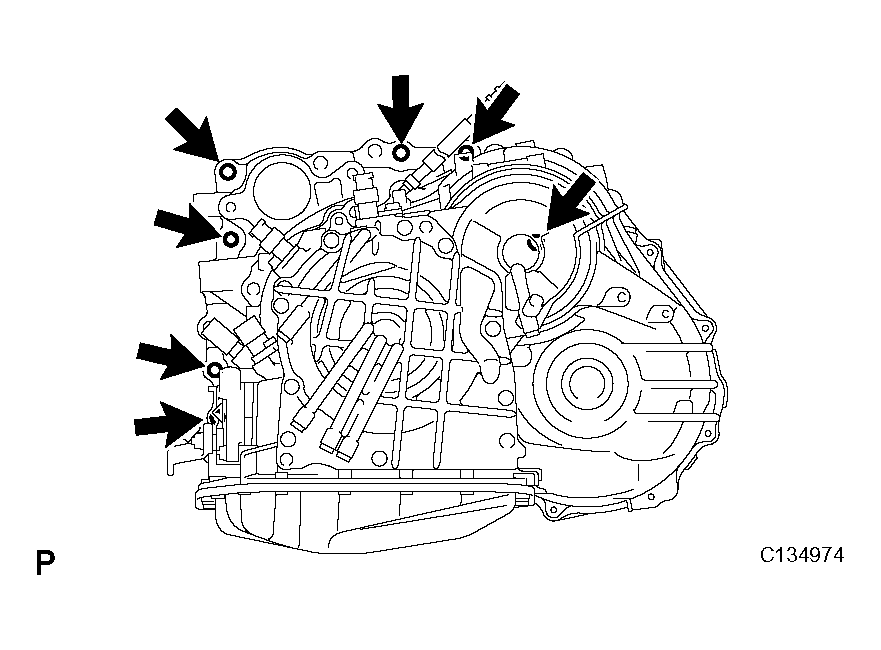

      Fig 10: Removing Upper Side Mounting Bolts
      G04487680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE TRANSMISSION OIL FILLER TUBE SUB-ASSEMBLY
    1. Remove the ATF dipstick.
    2. Remove the bolt and oil filler tube.
      Fig 11: Removing Bolt And Oil Filler Tube
      G04487681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 1 TRANSMISSION CONTROL CABLE BRACKET
    1. Remove the 2 bolts and cable bracket.
  13. REMOVE AUTOMATIC TRANSMISSION CASE PROTECTOR
    1. Remove the 2 bolts and protector.
  14. REMOVE TORQUE CONVERTER CLUTCH ASSEMBLY

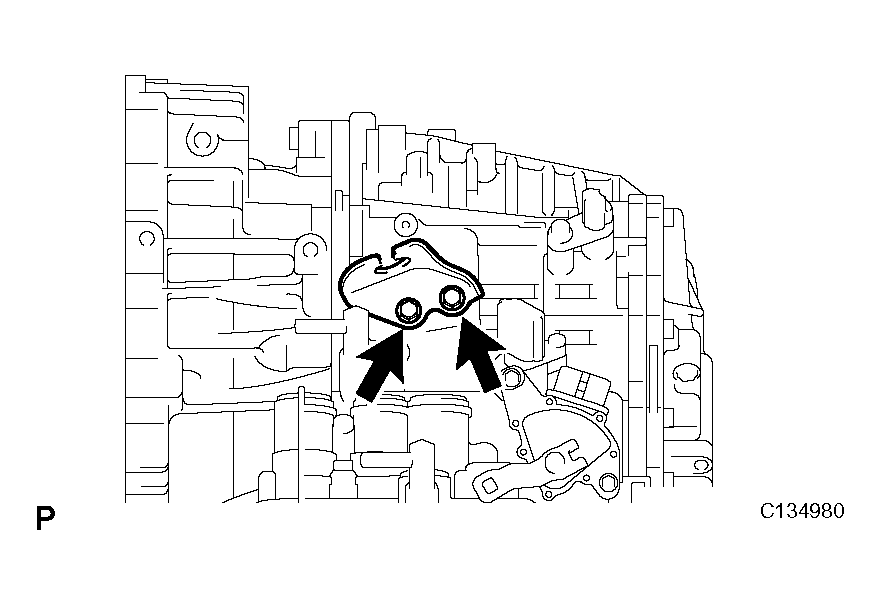

    Fig 12: Removing Bolts And Protector
    G04487682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
