Transfer Assembly: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE ENGINE ASSEMBLY WITH AUTOMATIC TRANSAXLE
    1. For 2AZ-FE: Remove the engine with automatic transaxle (see appropriate step(s) under REMOVAL ).
    2. For 2GR-FE: Remove the engine with automatic transaxle (see appropriate step(s) under REMOVAL ).
  3. REMOVE REAR ENGINE MOUNTING BRACKET (For 2GR-FE) (see appropriate step(s) under  REMOVAL  )
  4. REMOVE REAR ENGINE MOUNTING BRACKET (For 2AZ-FE) (See appropriate step(s) under  REMOVAL  )
  5. REMOVE TRANSFER ASSEMBLY
    1. Remove the 6 nuts, 2 bolts and transfer from the transaxle.

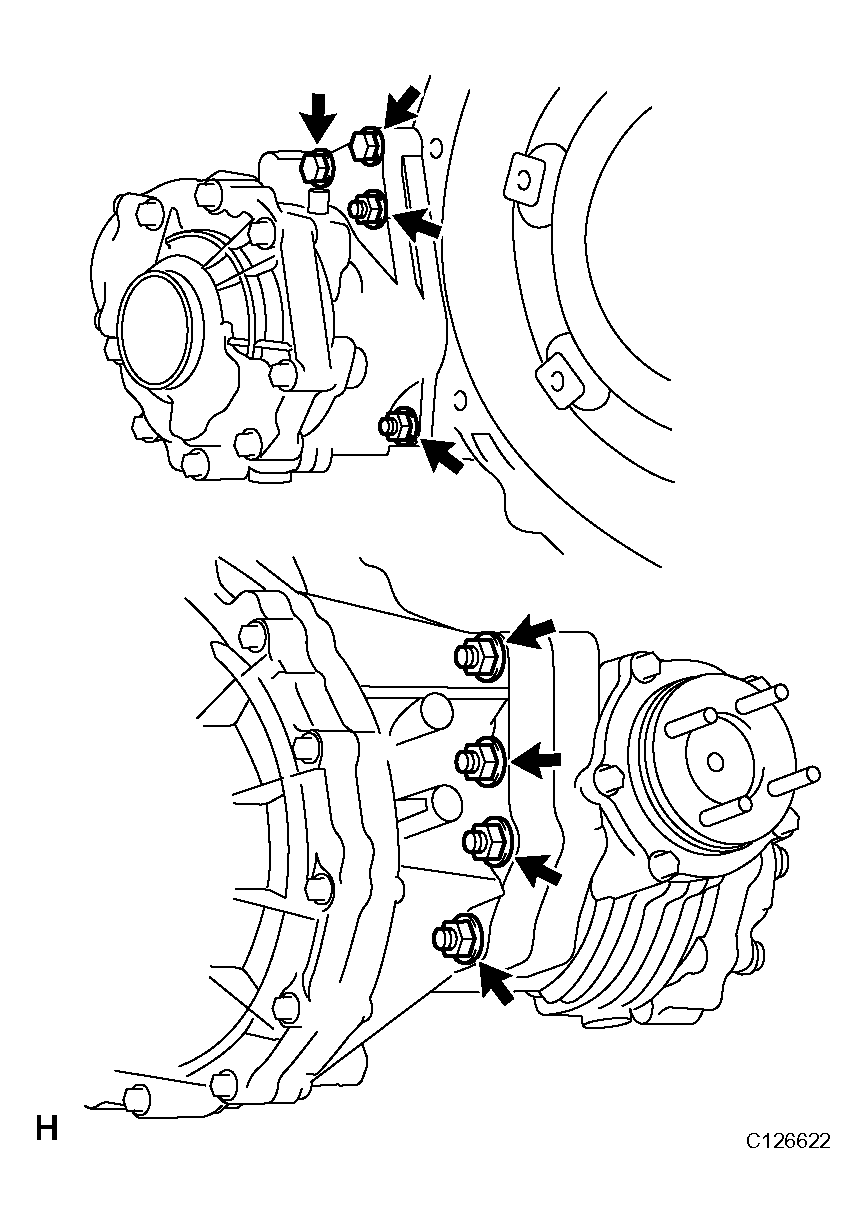

      Fig 1: Removing 6 Nuts, 2 Bolts And Transfer From Transaxle
      G04488779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
