Transmission Oil Cooler: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT NO. 1 AND NO. 2 TRANSMISSION OIL COOLER HOSES

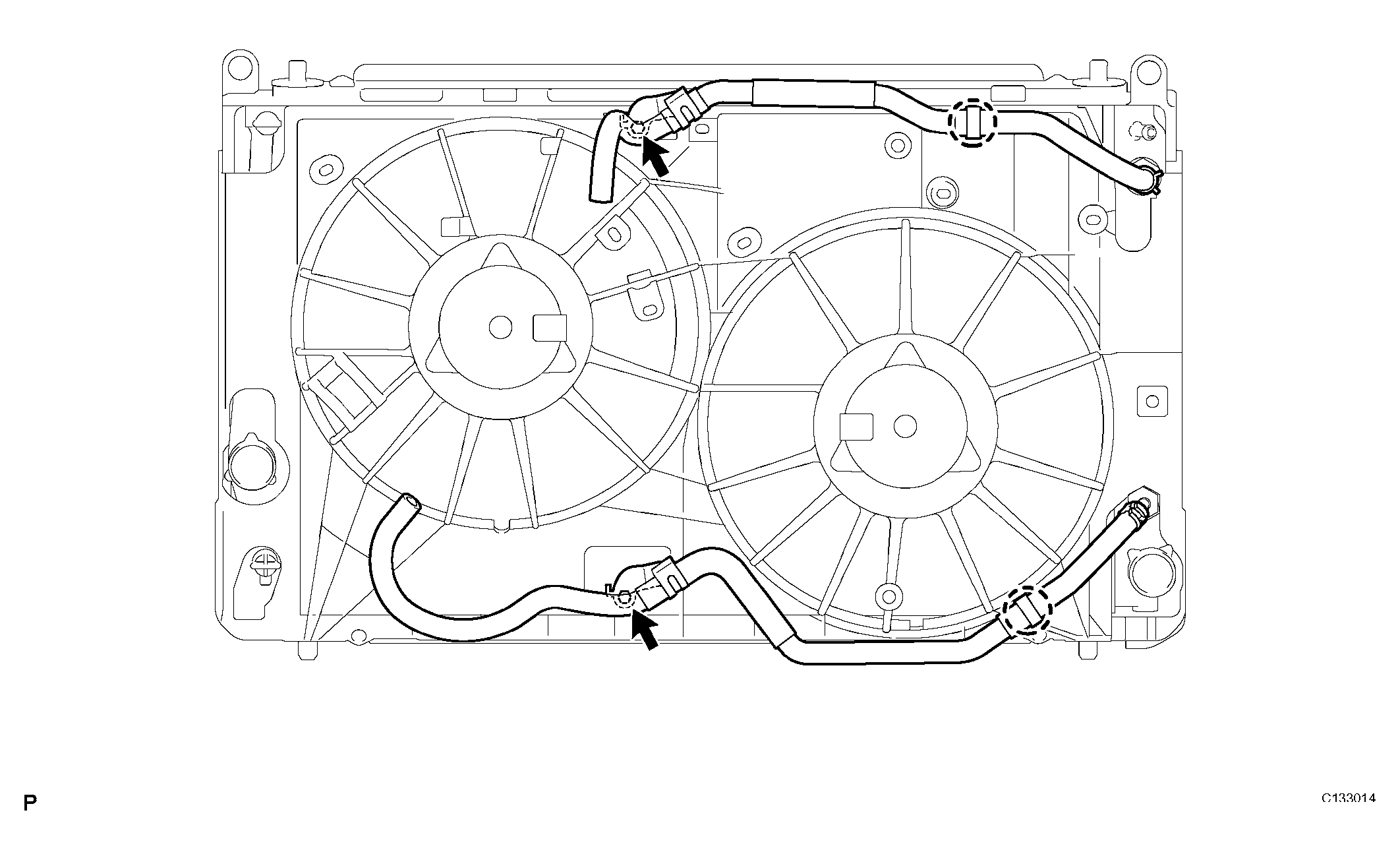

Fig 1: Disconnecting No. 1 And No. 2 Transmission Oil Cooler Hoses
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the 2 hoses from the 2 No. 1 flexible hose clamps.
2. Detach the 2 claws to open the 2 automatic transmission oil cooler tube clamps.
3. Disconnect the 2 hoses from the radiator.
4. Remove the 2 bolts and 2 No. 1 flexible hose clamps.
5. Remove the 2 automatic transmission oil cooler tube clamps.
6. Disconnect the 2 hoses from the transmission oil filler tube and oil cooler tube.

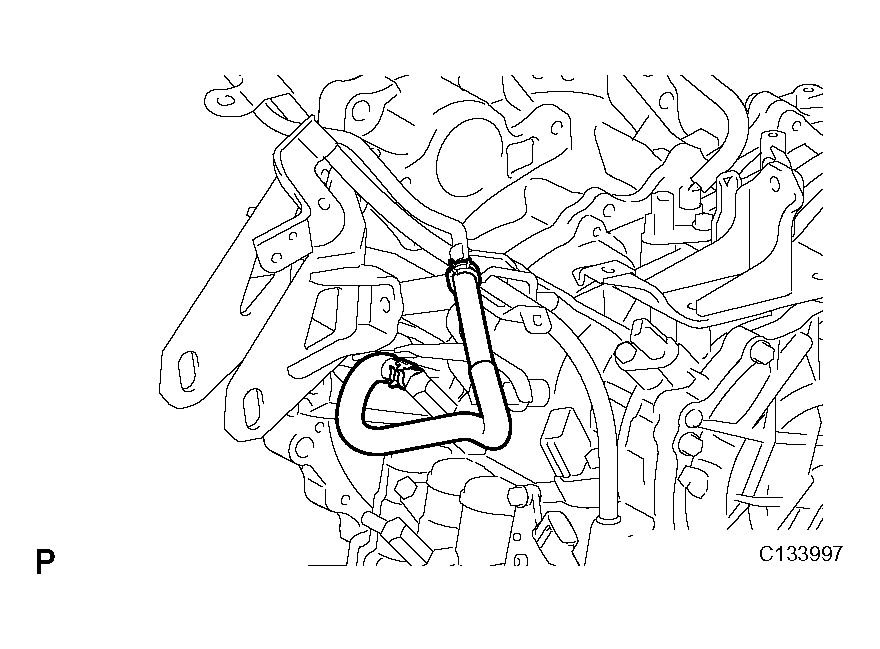

  Fig 2: Disconnecting Hoses From Transmission Oil Filler Tube And Oil Cooler Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT OIL COOLER TUBE SUB-ASSEMBLY
1. Disconnect the oil cooler outlet hose from the oil cooler tube and transaxle.
2. Remove the bolt and oil cooler tube.
DISCONNECT OIL COOLER OUTLET HOSE
1. Disconnect the oil cooler outlet hose from the transaxle.

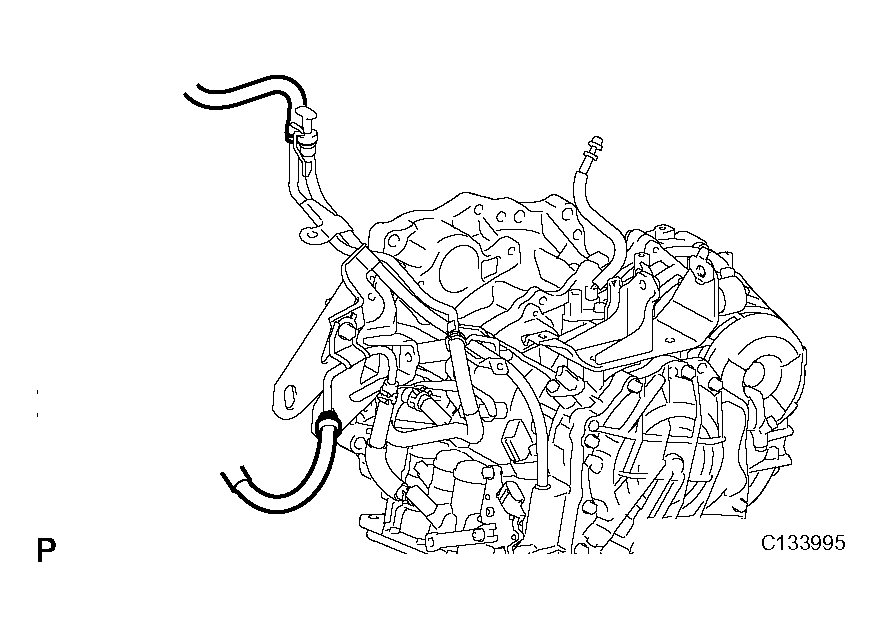

  Fig 3: Disconnecting Oil Cooler Outlet Hose From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT OIL COOLER INLET HOSE
1. Disconnect the hose from the transmission oil filler tube and transaxle, and remove it.

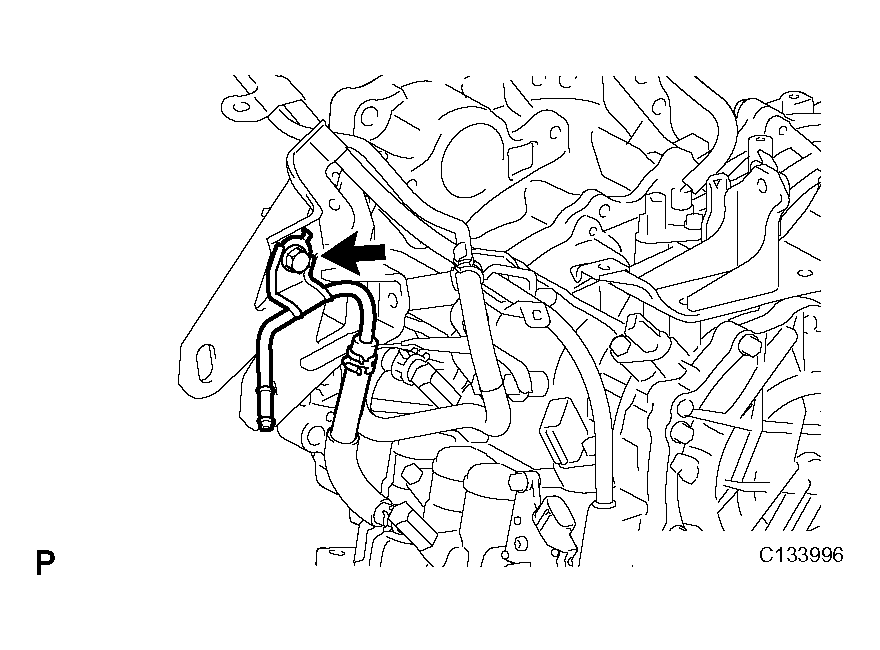

  Fig 4: Disconnecting Hose From Transmission Oil Filler Tube And Transaxle
