Automatic Transaxle Assembly: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
    1. Remove the engine with transaxle (see REMOVAL ).
  2. DRAIN AUTOMATIC TRANSAXLE FLUID
    1. Remove the drain plug and gasket, and drain ATF.
    2. Install a new gasket and the drain plug.

      Torque: 47 N*m (479 kgf*cm, 35 ft.*lbf)

  3. REMOVE STARTER ASSEMBLY
    1. Disconnect the starter connector.
    2. Open the terminal cap, and remove the nut and disconnect the starter wire.

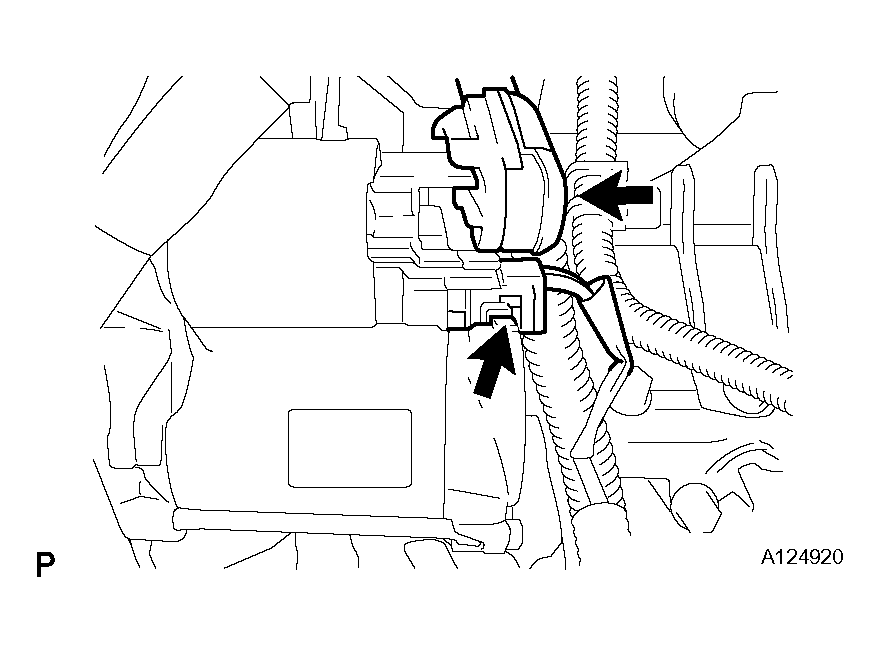

      Fig 1: Removing Starter Assembly
      G04486403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and starter.

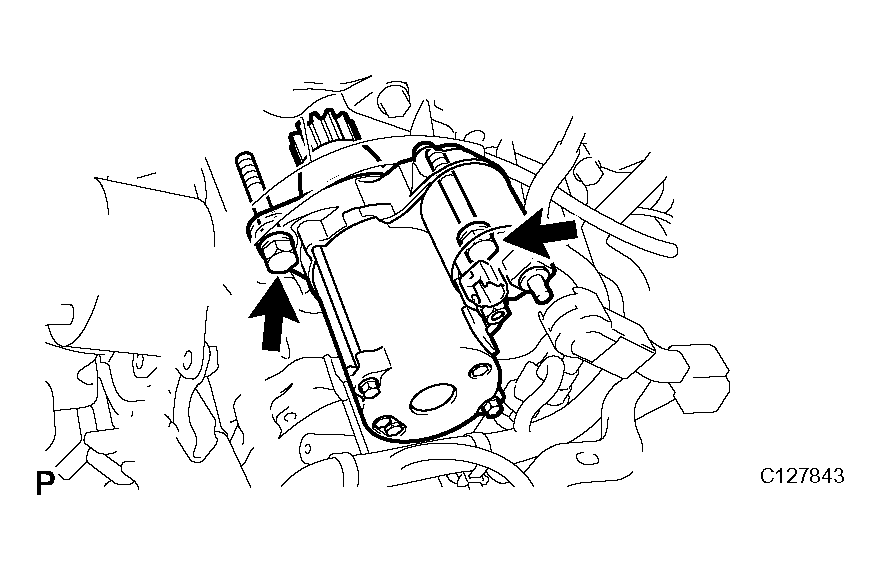

      Fig 2: Removing Bolts Starter
      G04486404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT WIRE HARNESS
    1. Disconnect the park/neutral position switch connector.
    2. Disconnect the transaxle wire connector.
    3. Disconnect the 2 speed sensor connectors.
    4. Disconnect the wire harness clamps.
  5. REMOVE TRANSMISSION OIL COOLER
    1. Remove the oil cooler (see REMOVAL  ).

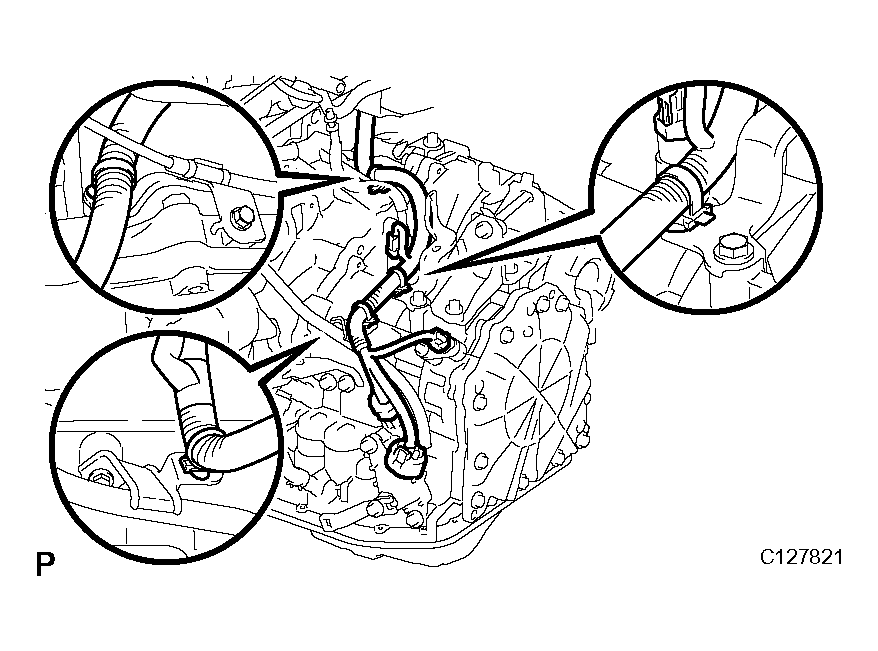

      Fig 3: Removing Oil Cooler
      G04486405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE ENGINE MOUNTING BRACKET RR
    1. Remove the 3 bolts and mounting bracket.

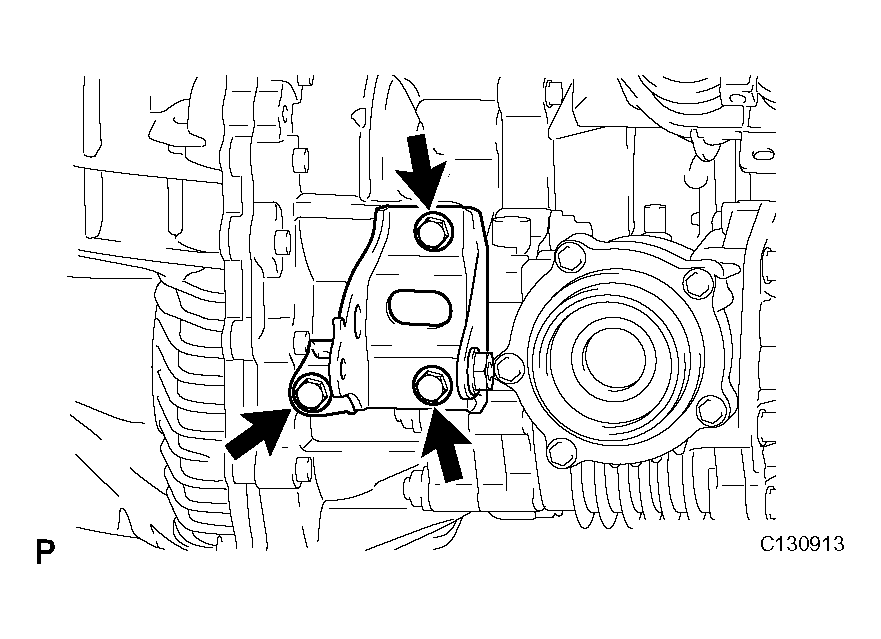

      Fig 4: Removing Bolts Mounting Bracket
      G04486406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE ENGINE MOUNTING BRACKET FR
    1. Remove the 4 bolts and mounting bracket.

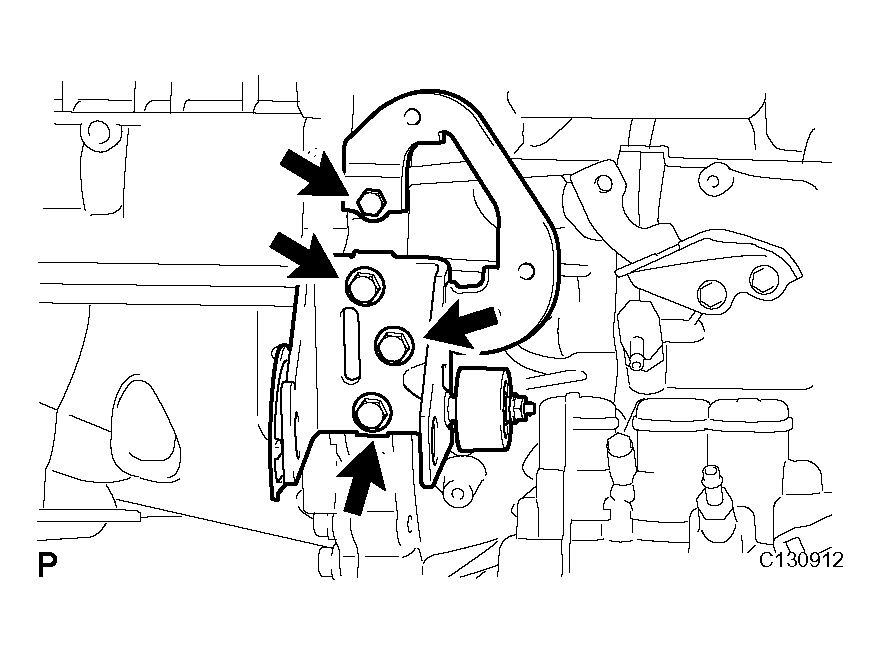

      Fig 5: Removing Bolts Mounting Bracket
      G04486407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE ENGINE MOUNTING BRACKET LH
    1. Remove the 3 bolts and mounting bracket.
  9. REMOVE TRANSFER ASSEMBLY
    1. Remove the transfer (see REMOVAL ).

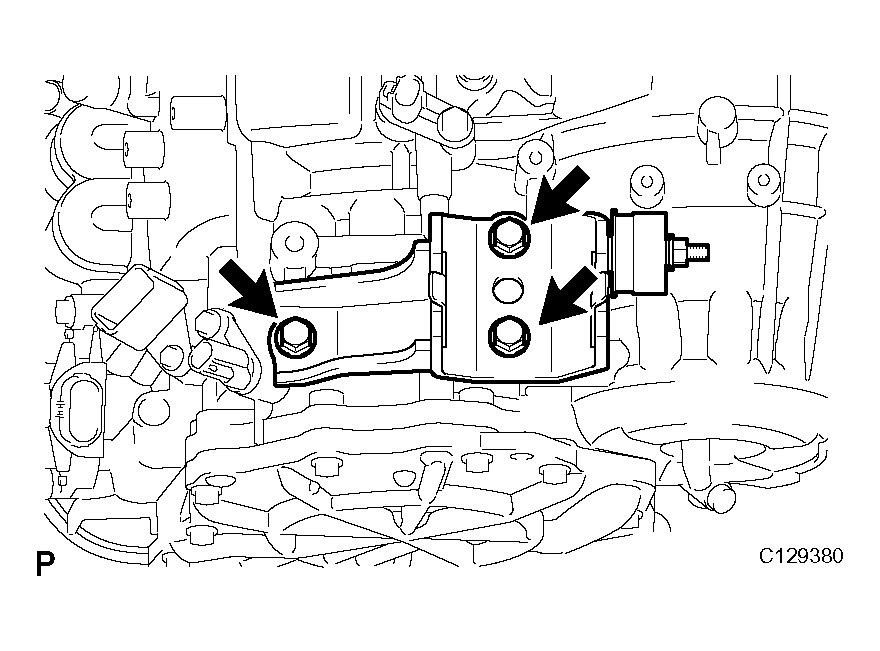

      Fig 6: Removing Transfer Assembly
      G04486408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
    1. Remove the flywheel housing under cover.
    2. Turn the crankshaft to gain access and remove the 6 bolts while holding the crankshaft pulley bolt with a wrench.

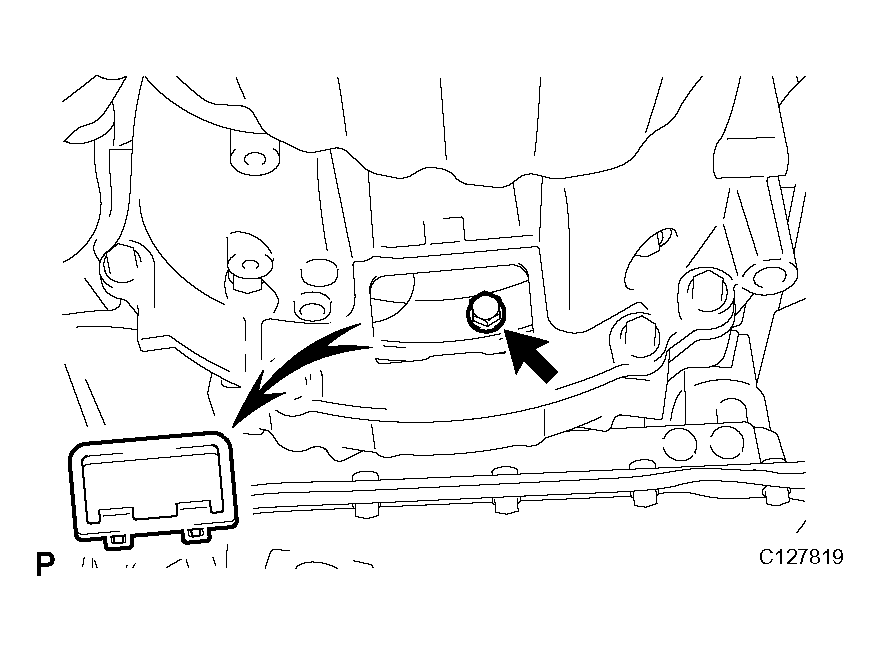

      Fig 7: Removing Automatic Transaxle Assembly
      G04486409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 lower side mounting bolts.

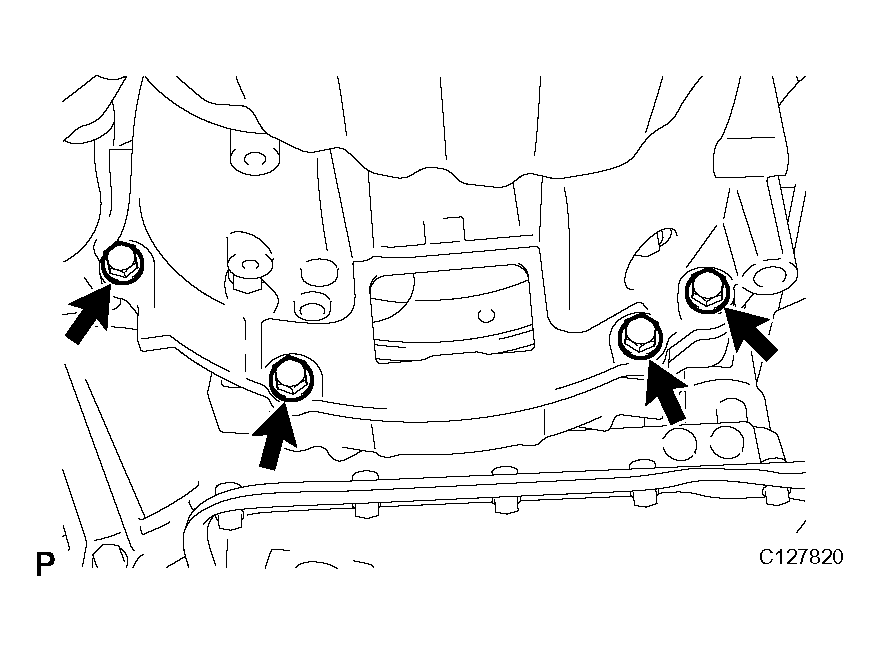

      Fig 8: Removing Lower Side Mounting Bolts
      G04486410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

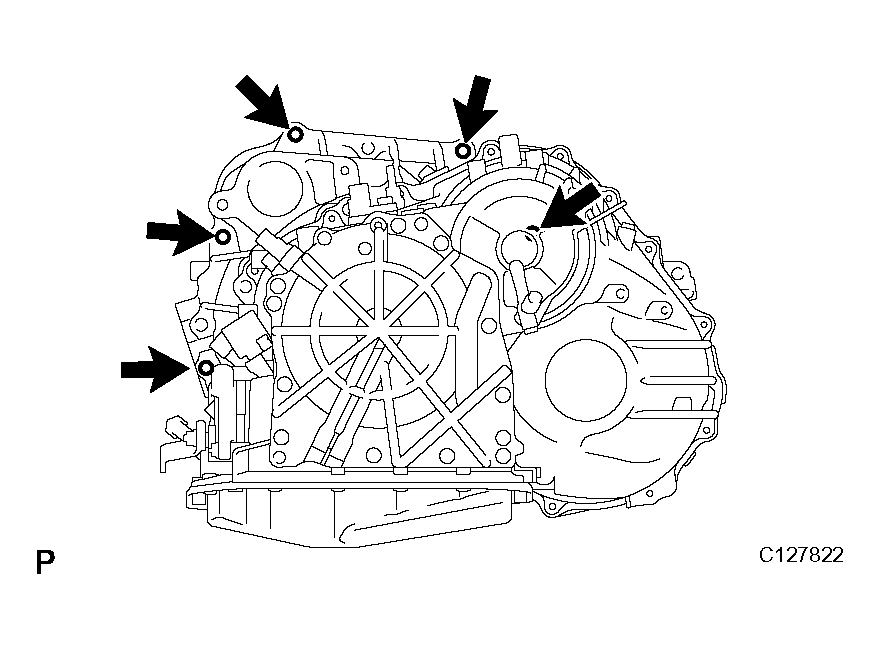

    4. Remove the 5 upper side mounting bolts.
    5. Separate and remove the automatic transaxle.
      Fig 9: Removing Upper Side Mounting Bolts
      G04486411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE TRANSMISSION OIL FILLER TUBE SUB-ASSEMBLY
    1. Remove the ATF dipstick.
    2. Remove the bolt and oil filler tube.
      Fig 10: Removing Transmission Oil Filler Tube Sub-Assembly
      G04486412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

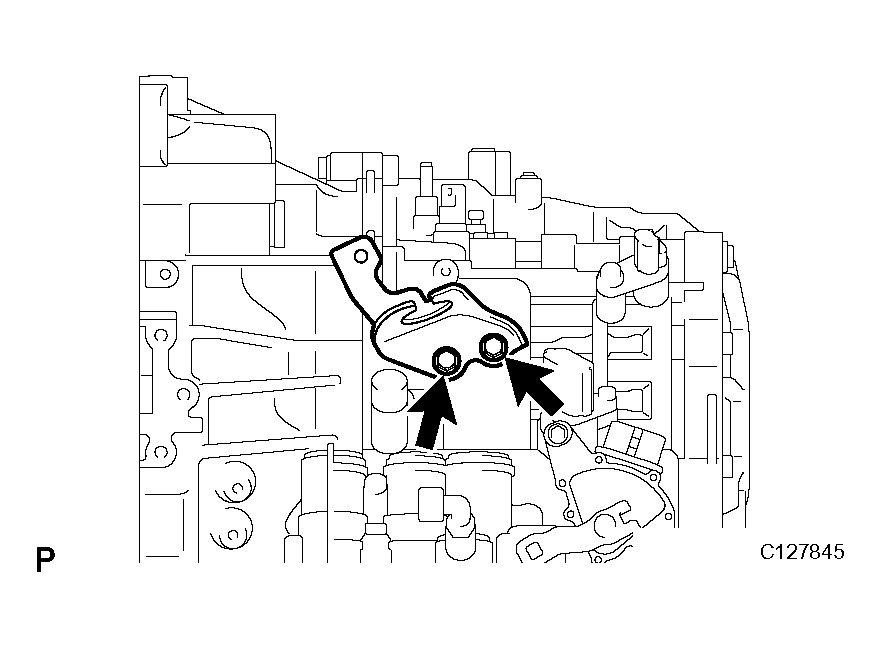

  12. REMOVE NO. 1 TRANSMISSION CONTROL CABLE BRACKET
    1. Remove the 2 bolts and cable bracket.
  13. REMOVE TORQUE CONVERTER CLUTCH ASSEMBLY
    Fig 11: Removing Torque Converter Clutch Assembly
    G04486413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
