Transmission Oil Cooler: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE TRANSMISSION OIL COOLER
1. *1: Disconnect the No. 3 water by-pass hose from the transmission oil cooler.
2. *2: Disconnect the No. 4 water by-pass hose from the transmission oil cooler.
3. *3: Disconnect the No. 1 oil cooler inlet hose from the transmission oil cooler.
4. *4: Disconnect the No. 1 oil cooler outlet hose from the transmission oil cooler.

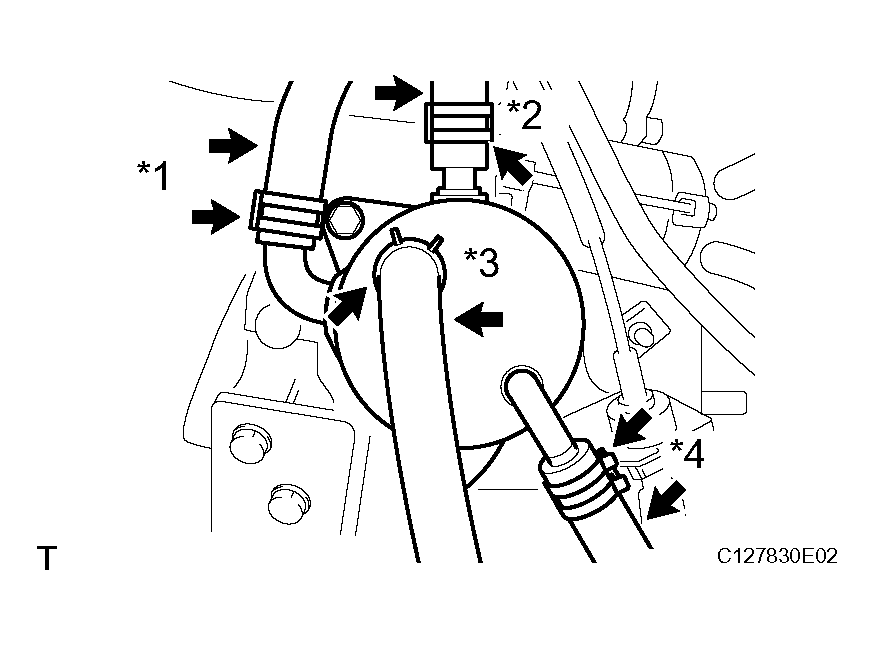

  Fig 1: Removing Transmission Oil Cooler
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 3 bolts and oil cooler from the bracket.

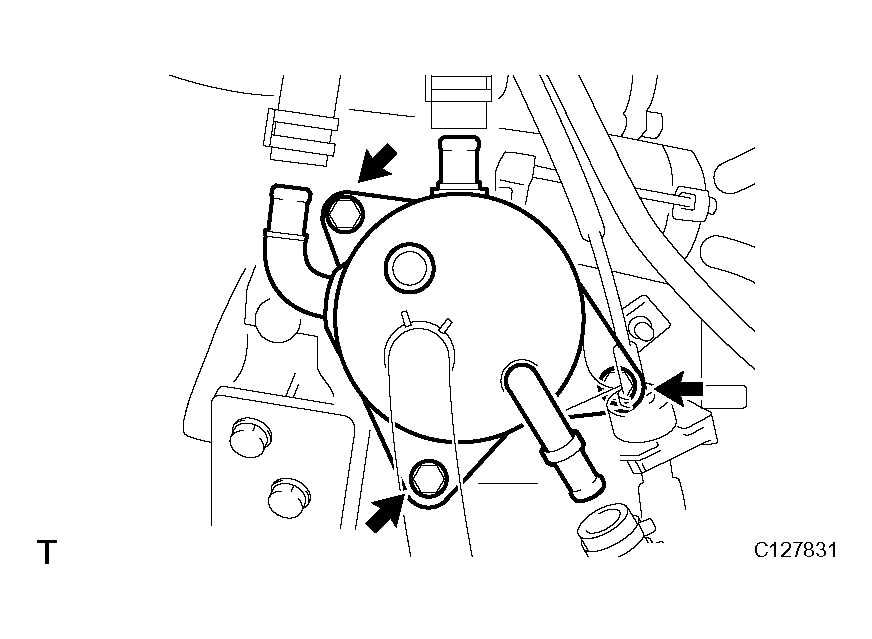

  Fig 2: Removing Bolts And Oil Cooler From Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
