Combination Meter: Installation

  1. INSTALL COMBINATION METER ASSEMBLY
    1. Using the tilt and telescopic functions, fully lower and extend the steering wheel.
    2. Connect the 2 connectors as shown in the illustration.
    3. Secure the wire harness to the combination meter assembly.

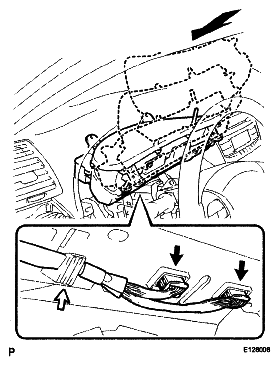

      Fig 1: Locating Combination Meter Assembly Connectors
      G04980559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the combination meter assembly as shown in the illustration.
      Fig 2: Identifying Combination Meter Assembly
      G04980560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the 4 screws.
      Fig 3: Identifying Combination Meter Assembly Screws
      G04980554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL
    1. Engage the 4 claws and the guide.
    2. Install the instrument cluster finish panel with the 2 clips.
    Fig 4: Identifying Instrument Cluster Finish Panel Clips And Claws
    G04980553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (w/o Smart Key System)  (See INSTALLATION )
  4. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (w/ Smart Key System)  (See INSTALLATION )
  5. INSTALL NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY  (See INSTALLATION )
  6. INSTALL STEERING COLUMN COVER
    1. Engage the claw and install the upper steering column cover.
      Fig 5: Identifying Upper Steering Column Cover Claws
      G04980552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 claws.
    3. Install the lower steering column cover with the 2 screws.

      Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

    Fig 6: Identifying Lower Steering Column Cover Screws
    G04980564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH
    1. Install the air hose and connect the connector.
    2. Engage the claw and the 9 clips.
    3. Connect the hood lock control cable assembly.
    4. Install the lower instrument panel finish panel LH with the screw and bolt.

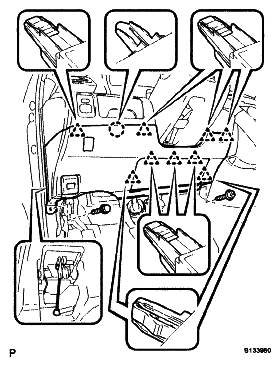

    Fig 7: Identifying Hood Lock Control Cable Assembly Claws And Clips
    G04980548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH  (See INSTALLATION )
  9. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
