Engine Room Junction Block - Engine Compartment Left
WARNING: This page is about a different variant/trim than selected.
Refer to Engine Compartment .

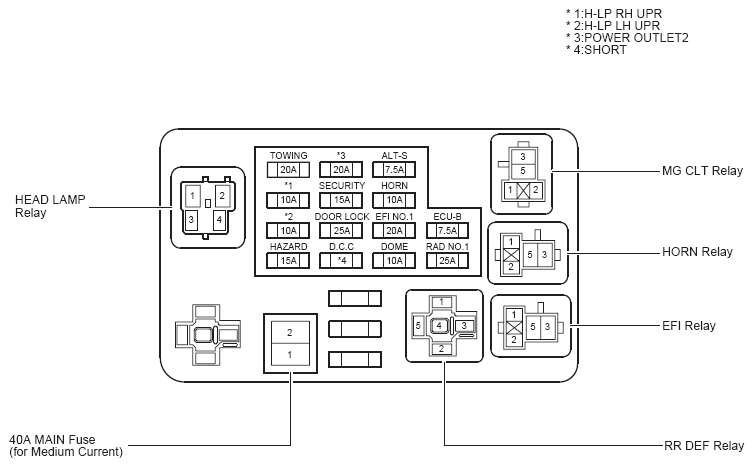

ENGINE ROOM J/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Head LAMP Relay |
| MG CLT Relay |
| Horn Relay |
| EFI Relay |
| RR DEF Relay |
Engine Room J/B Fuse & Relay Identification Legend
| Fuse | System | |
|---|---|---|
| 7.5A | ALT-S | Charging |
| 7.5A | ECU-B | ABS, TRAC, VSC and Tire Pressure Warning System |
| Air Conditioning (Automatic A/C) | ||
| Air Conditioning (Manual A/C) | ||
| Automatic Light Control | ||
| Charging | ||
| Combination Meter | ||
| Cruise Control (2AZ-FE) | ||
| Cruise Control (3MZ-FE) | ||
| Door Lock Control | ||
| Electronically Controlled Transmission and A/T Indicator (2AZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (3MZ-FE) | ||
| Engine Control (2AZ-FE) | ||
| Engine Control (3MZ-FE) | ||
| Engine Immobilizer System | ||
| Front Fog Light | ||
| Headlight (w/ Daytime Running Light) | ||
| Headlight (w/o Daytime Running Light) | ||
| Interior Light | ||
| Key Reminder and Seat Belt Warning | ||
| Light Auto Turn Off System | ||
| Moon Roof | ||
| Navigation System | ||
| Power Window | ||
| SRS | ||
| Theft Deterrent System | ||
| Wireless Door Lock Control | ||
| 10A | DOME | ABS, TRAC, VSC and Tire Pressure Warning System |
| Combination Meter | ||
| Cruise Control (2AZ-FE) | ||
| Cruise Control (3MZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2AZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (3MZ-FE) | ||
| Engine Control (2AZ-FE) | ||
| Engine Control (3MZ-FE) | ||
| Garage Door Opener | ||
| Illumination | ||
| Interior Light | ||
| Key Reminder and Seat Belt Warning | ||
| Navigation System | ||
| Theft Deterrent System | ||
| Wireless Door Lock Control | ||
| 10A | H-LP LH UPR | Headlight (w/ Daytime Running Light) |
| Headlight (w/o Daytime Running Light) | ||
| 10A | H-LP RH UPR | Headlight (w/ Daytime Running Light) |
| Headlight (w/o Daytime Running Light) | ||
| 10A | HORN | Horn |
| Theft Deterrent System | ||
| 15A | HAZARD | Trailer Towing |
| Turn Signal and Hazard Warning Light | ||
| 15A | SECURITY | Theft Deterrent System |
| 20A | EFI NO.1 | Cruise Control (2AZ-FE) |
| Cruise Control (3MZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2AZ-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (3MZ-FE) | ||
| Engine Control (2AZ-FE) | ||
| Engine Control (3MZ-FE) | ||
| 20A | POWER OUTLET2 | Power Outlet |
| 20A | TOWING | Trailer Towing |
| 25A | DOOR LOCK | Door Lock Control |
| Theft Deterrent System | ||
| Wireless Door Lock Control | ||
| 25A | RAD NO.1 | Audio System (6 Speaker) |
| Audio System (8 Speaker) | ||
| 40A | MAIN | Automatic Light Control |
| Combination Meter | ||
| Headlight (w/ Daytime Running Light) | ||
| Headlight (w/o Daytime Running Light) | ||
| Light Auto Turn Off System | ||
| Theft Deterrent System | ||

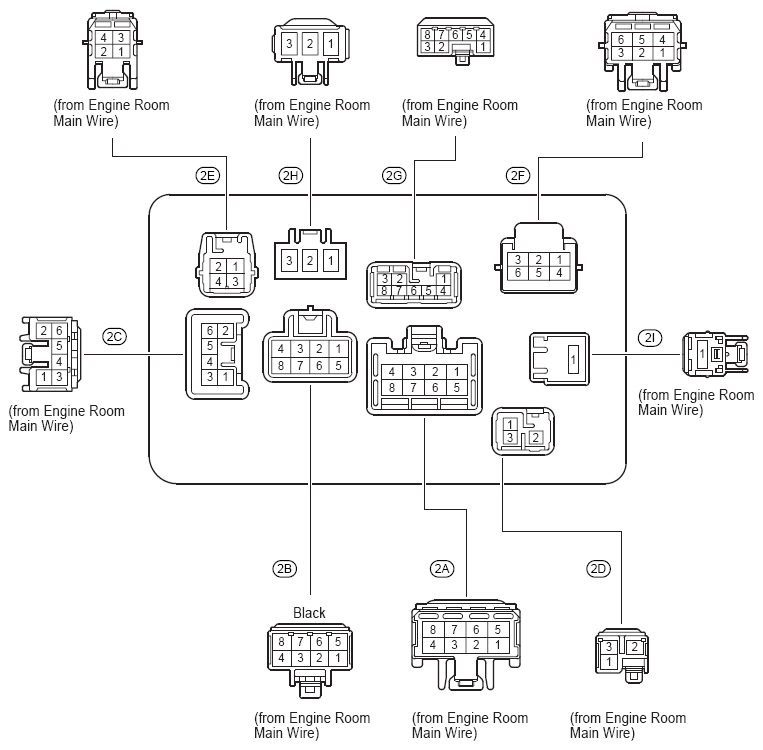

(Inner Circuit: See ENGINE ROOM J/B INNER CIRCUIT )
