Section 60 (OEM Junction Block, Ecu & Fuse/Relay Locations (Except Hybrid))
>>
Relay Block, Junction Block & Ecu Locations
>>
Engine Compartment
Engine Compartment
WARNING:
This page is about a different variant/trim than selected.

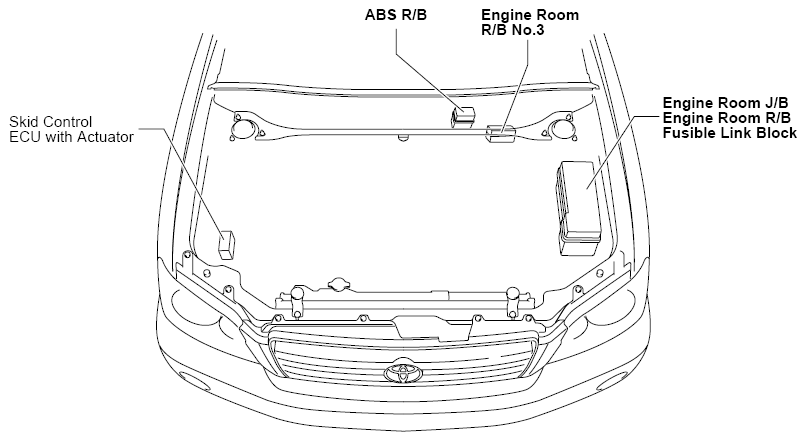

Fig 1: Engine Compartment Relay Block Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
