Engine Room Junction Block Inner Circuit

WARNING: This page is about a different variant/trim than selected.

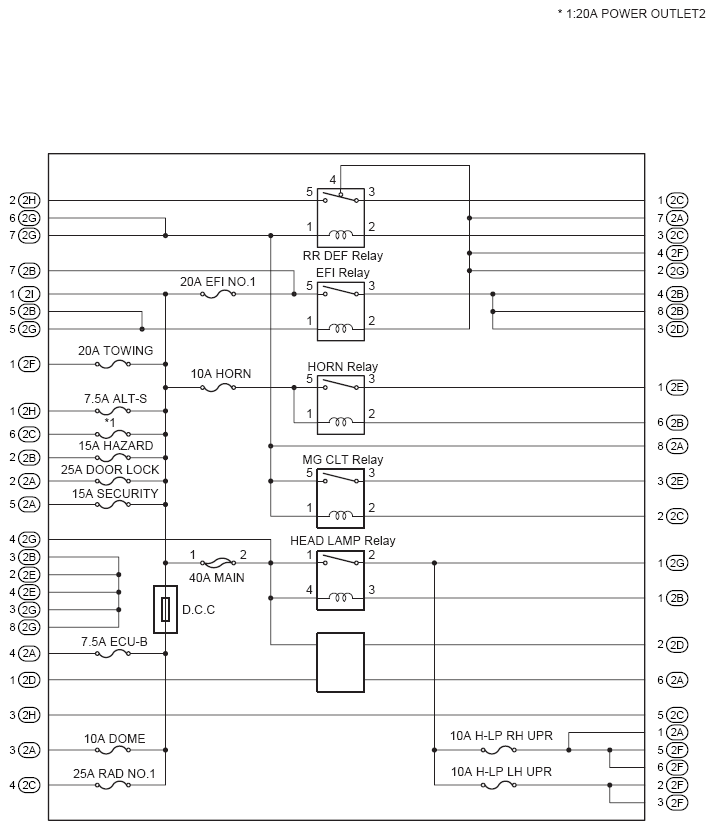

Fig 1: Engine Room J/B Inner Circuit Diagram
G08860867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
