Rear No. 2 Speaker: Removal

  1. REMOVE REAR SEAT CUSHION ASSEMBLY (See  REMOVAL  )
  2. REMOVE REAR SEAT HEADREST ASSEMBLY
  3. REMOVE REAR SEAT BACK LOCK COVER CAP (See  REMOVAL  )
  4. REMOVE REAR SEATBACK ASSEMBLY LH (See  REMOVAL  )
  5. REMOVE REAR SEATBACK ASSEMBLY RH (See  REMOVAL  )
  6. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH (See  REMOVAL  )
  7. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER RH (See  REMOVAL  )
  8. SEPARATE REAR SEAT BELT ASSEMBLY OUTER (See step 16 under  REMOVAL  )
  9. SEPARATE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH (See step 16 under  REMOVAL  )
  10. SEPARATE REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH (See step 17 under  REMOVAL  )
  11. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (See step 15 under  REMOVAL  )
  12. REMOVE REAR SPEAKER ASSEMBLY NO. 2
    1. Disconnect the connector.
    2. Remove the 4 bolts and rear speaker assembly No. 2.

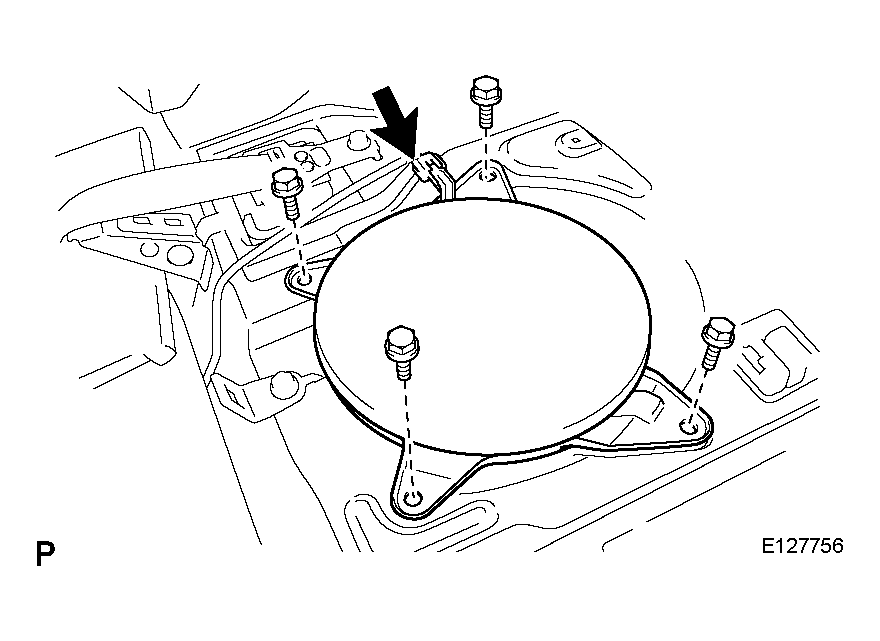

      Fig 1: Removing Rear Speaker Assembly No. 2 Bolts
      G04380122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
