Rear Seat Outer Belt Assembly: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

   HINT:

   See AIRBAG SYSTEM

2. REMOVE REAR SEAT CUSHION ASSEMBLY (See step 1 under  REMOVAL  )
3. REMOVE REAR SEAT HEADREST ASSEMBLY
4. REMOVE REAR SHELF COVER CAP (See step 3 under  REMOVAL  )
5. REMOVE REAR SEATBACK ASSEMBLY LH (See step 4 under  REMOVAL  )
6. REMOVE REAR SEATBACK ASSEMBLY RH (See step 5 under  REMOVAL  )
7. REMOVE REAR DOOR SCUFF PLATE LH (See step 22 under  REMOVAL  )
8. REMOVE REAR DOOR SCUFF PLATE RH (See step 23 under  REMOVAL  )
9. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
10. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
11. REMOVE REAR SEAT SIDE GARNISH LH (See step 35 under  REMOVAL  )
12. REMOVE REAR SEAT SIDE GARNISH RH (See step 36 under  REMOVAL  )
13. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH (See step 37 under  REMOVAL  )
14. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER RH (See step 38 under  REMOVAL  )
15. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

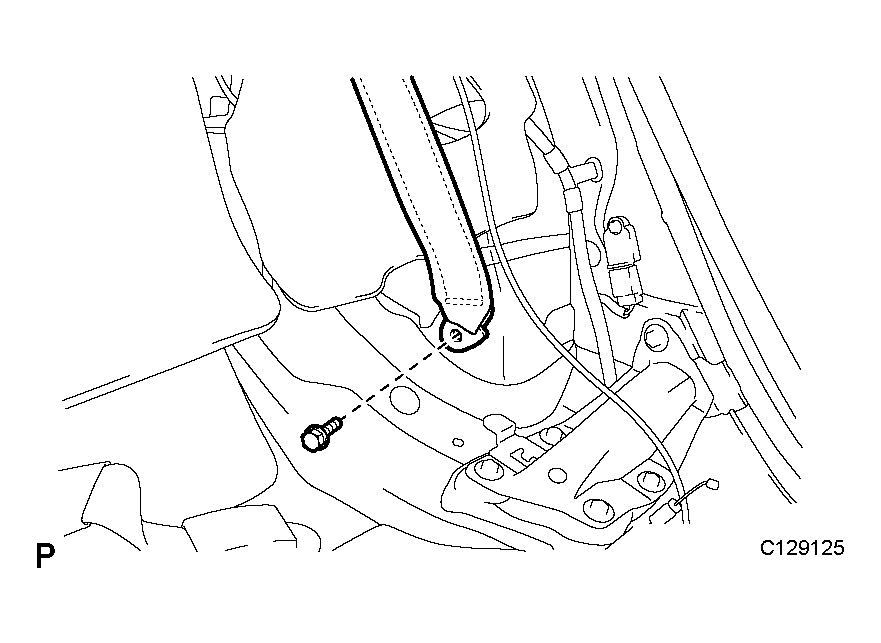

    1. Remove the bolt and disconnect the rear seat belt assembly outer.
       Fig 1: Removing Bolt

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

       HINT:

       Use the same procedures for the RH side and LH side.

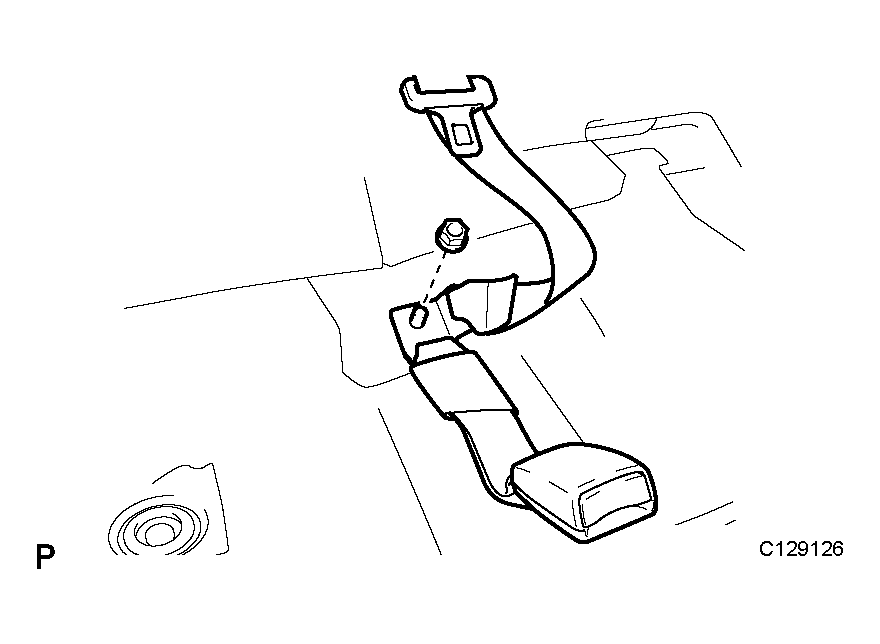

    2. Remove the nut and disconnect the rear seat inner w/ center belt assembly RH.
       Fig 2: Disconnecting Rear Seat Inner W/ Center Belt Assembly RH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 4 claws and the rear seat shoulder belt cover.

       HINT:

       Use the same procedures for the RH side and LH side.

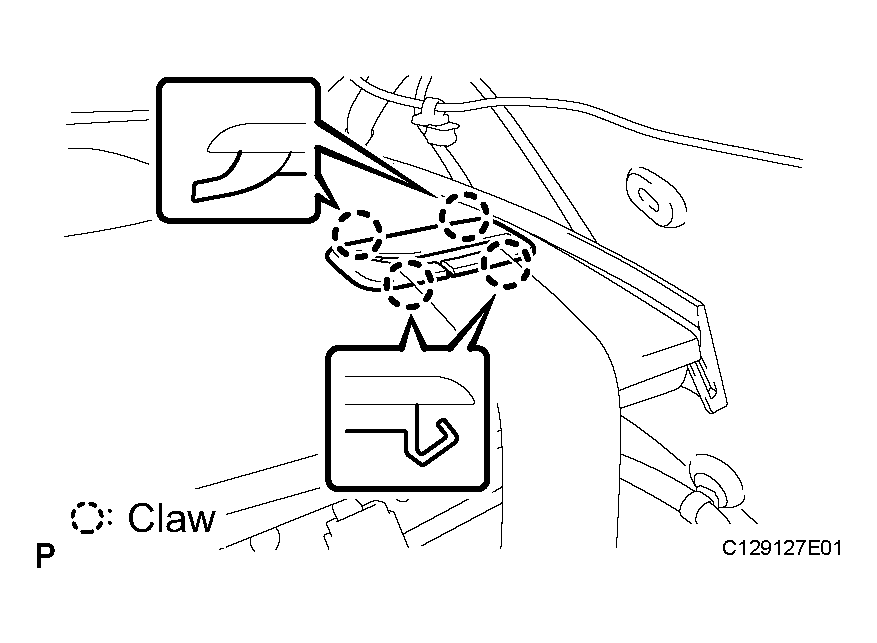

       Fig 3: Disengaging Claws And Rear Seat Shoulder Belt Cover (1 Of 2)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

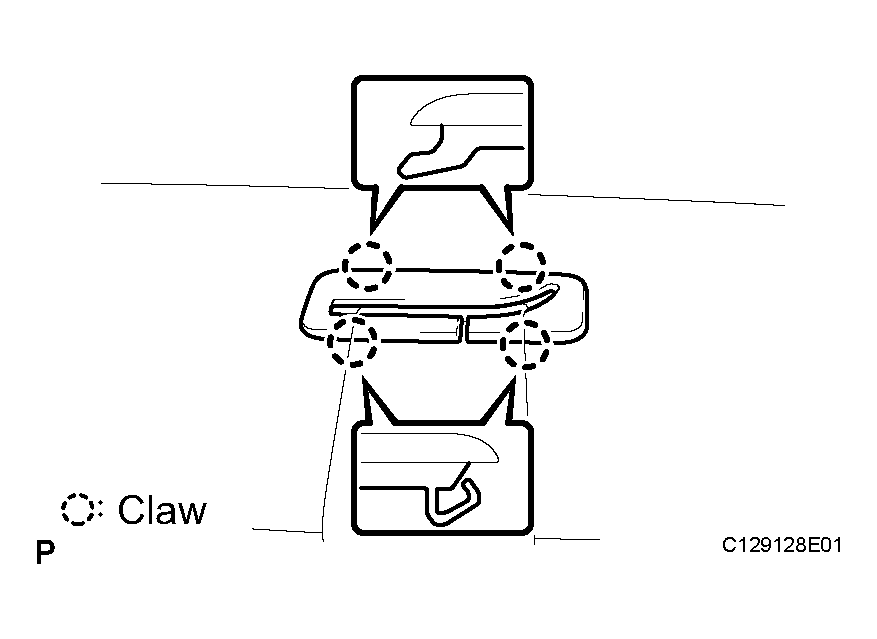

    4. Disengage the 4 claws and the rear seat shoulder belt cover.
       Fig 4: Disengaging Claws And Rear Seat Shoulder Belt Cover (2 Of 2)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

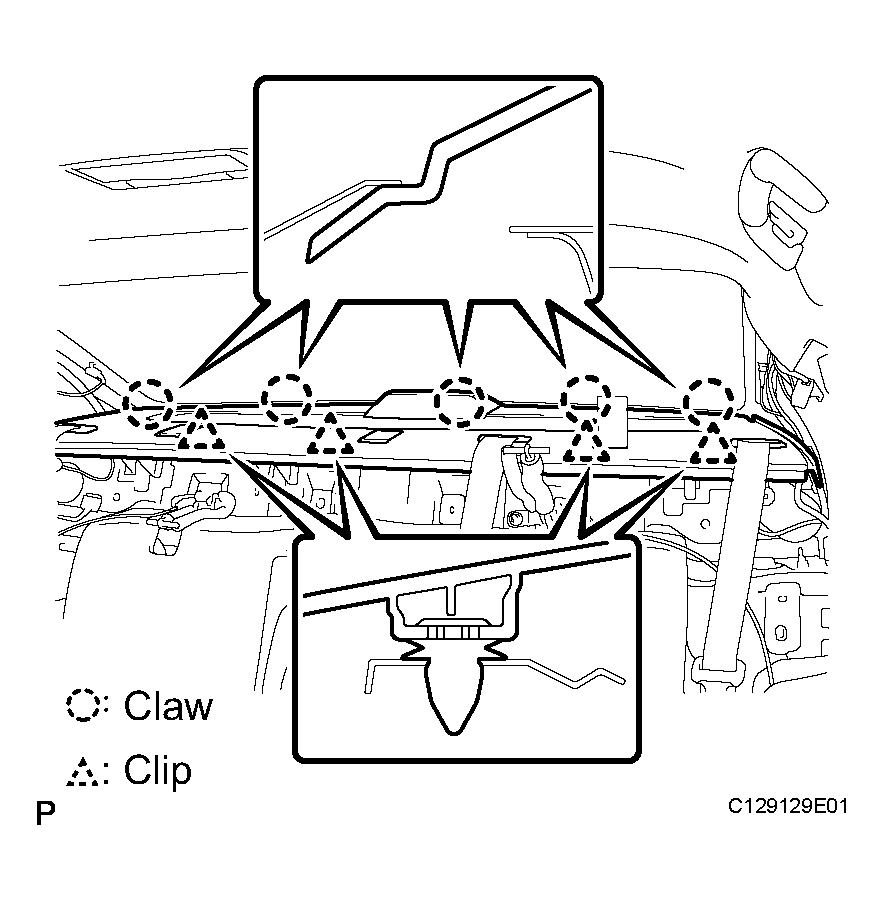

    5. Disengage the 5claws, 4clips, and the package tray panel assembly.
       Fig 5: Disengaging Claws, Clips And Package Tray Panel Assembly

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect the connector and remove the package tray panel assembly.
16. REMOVE REAR SEAT BELT ASSEMBLY OUTER

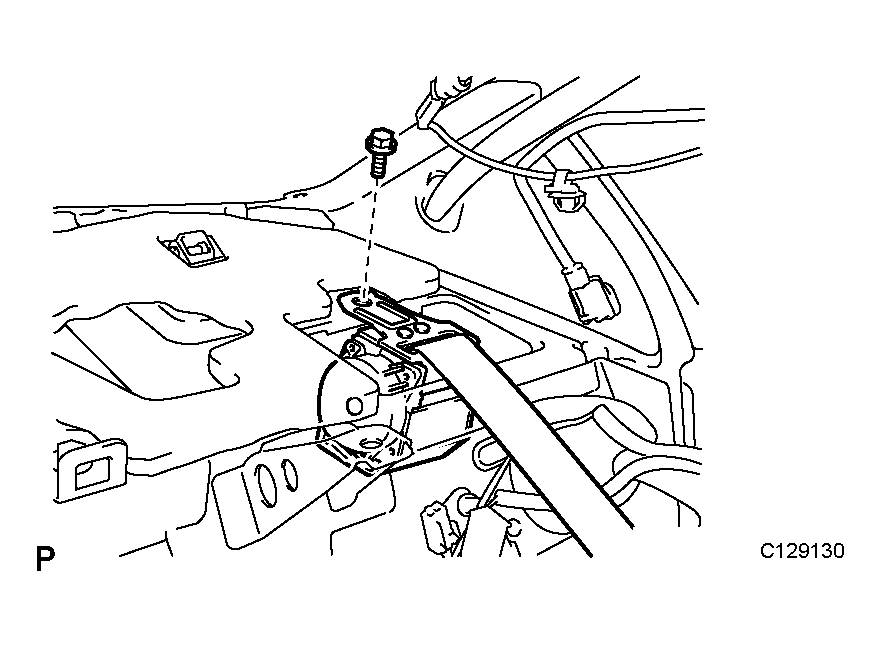

    1. Remove the bolt and the rear seat belt assembly outer.
       Fig 6: Removing Bolt And Rear Seat Belt Assembly Outer

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
