Rear Center Seat Inner Belt Assembly: Removal

HINT:

• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. DISCONNECT BATTERY NEGATIVE TERMINAL

   HINT:

   See AIRBAG SYSTEM

2. REMOVE REAR SEAT CUSHION ASSEMBLY (See step 1 under  REMOVAL  )
3. REMOVE REAR SEAT HEADREST ASSEMBLY
4. REMOVE REAR SHELF COVER CAP (See step 3 under  REMOVAL  )
5. REMOVE REAR SEATBACK ASSEMBLY LH (See step 4 under  REMOVAL  )
6. REMOVE REAR SEATBACK ASSEMBLY RH (See step 5 under  REMOVAL  )
7. REMOVE REAR DOOR SCUFF PLATE LH (See  REMOVAL  )
8. REMOVE REAR DOOR SCUFF PLATE RH (See step 22 under  REMOVAL  )
9. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
10. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
11. REMOVE REAR SEAT SIDE GARNISH LH (See step 35 under  REMOVAL  )
12. REMOVE REAR SEAT SIDE GARNISH RH (See step 36 under  REMOVAL  )
13. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH (See step 37 under  REMOVAL  )
14. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER RH (See step 38 under  REMOVAL  )
15. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

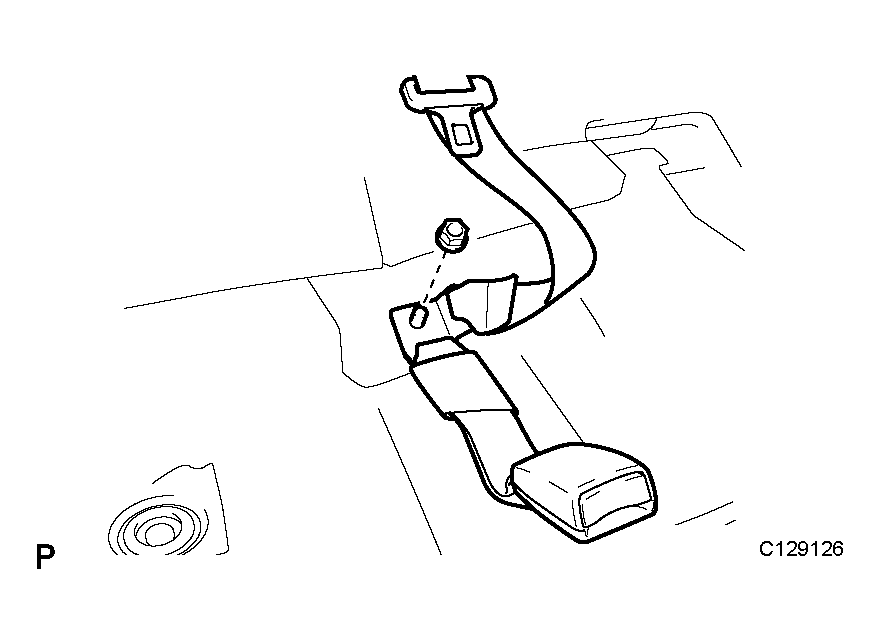

    1. Remove the bolt and disconnect the rear seat belt assembly outer.
       Fig 1: Removing Bolt

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

       HINT:

       Use the same procedures for the RH side and LH side.

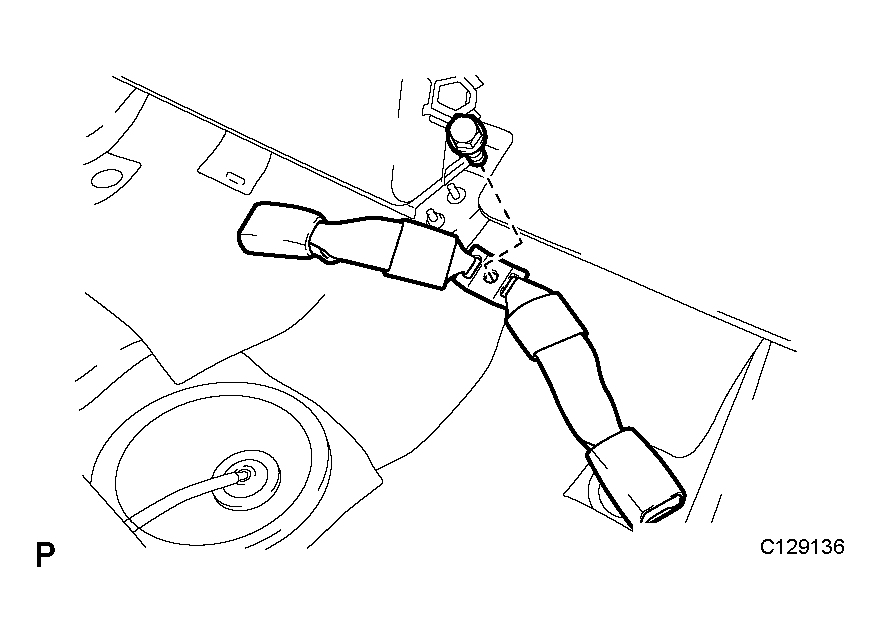

    2. Remove the nut and disconnect the rear seat inner w/ center belt assembly RH.
       Fig 2: Removing Nut And Disconnecting Rear Seat Inner W/ Center Belt Assembly RH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

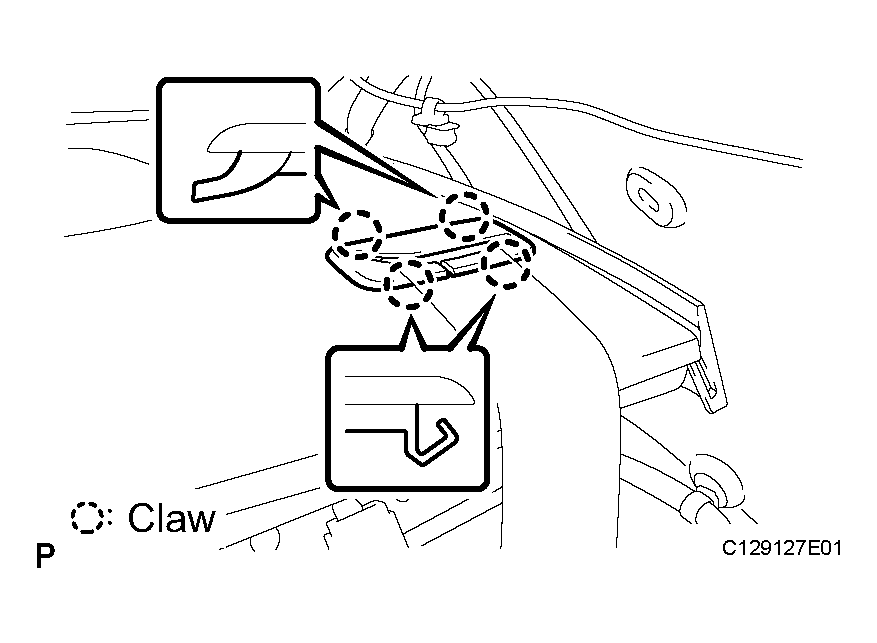

    3. Disengage the 4 claws and the rear seat shoulder belt cover.

       HINT:

       Use the same procedures for the RH side and LH side.

       Fig 3: Disengaging Claws And Rear Seat Shoulder Belt Cover (1 Of 2)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

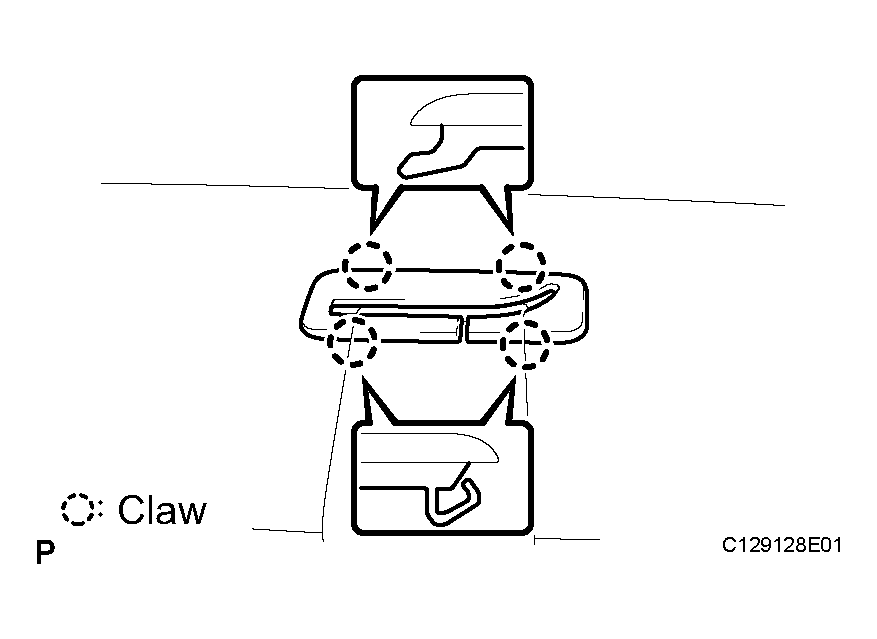

    4. Disengage the 4 claws and the rear seat shoulder belt cover.
       Fig 4: Disengaging Claws And Rear Seat Shoulder Belt Cover (2 Of 2)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

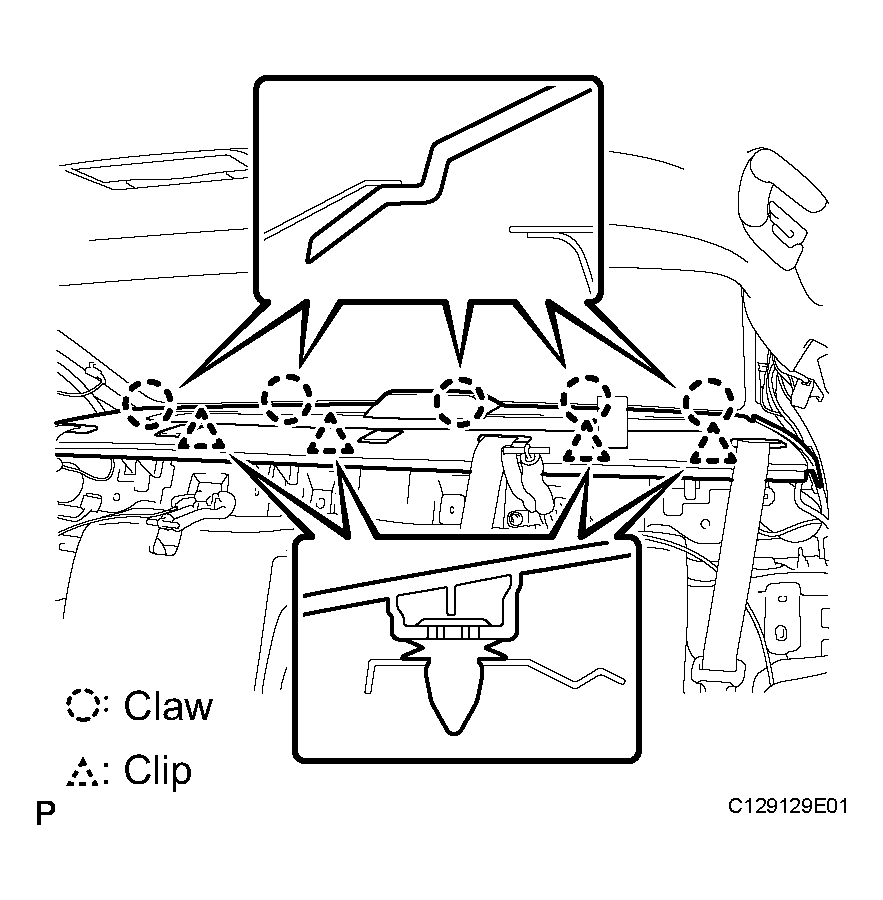

    5. Disengage the 5 claws, 4 clips, and the package tray panel assembly.
    6. Disconnect the connector and remove the package tray panel assembly.
       Fig 5: Disengaging Claws, Clips, And Package Tray Panel Assembly

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH

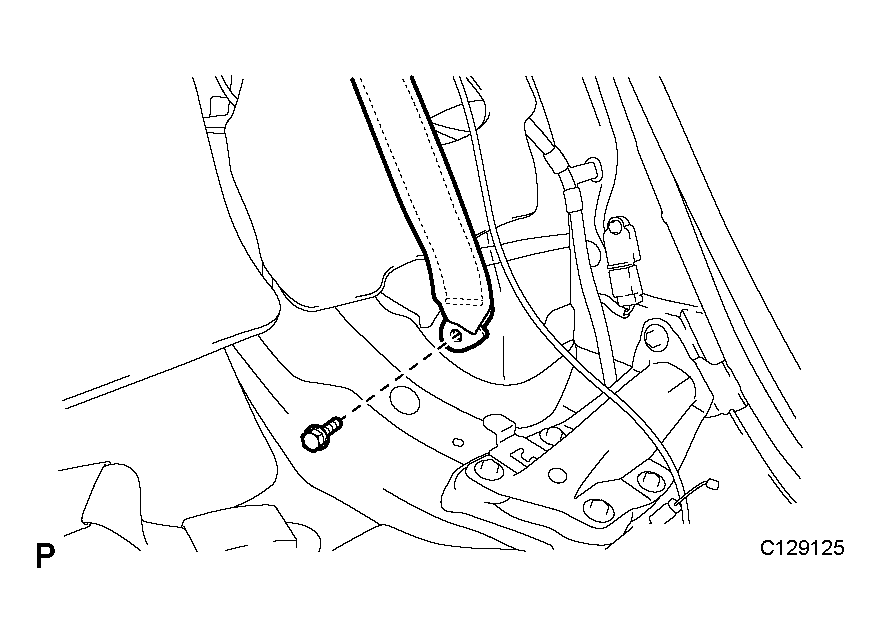

    1. Remove the bolt and the rear seat inner w/ center belt assembly RH.
       Fig 6: Removing Rear Seat Inner With Center Belt Assembly RH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH

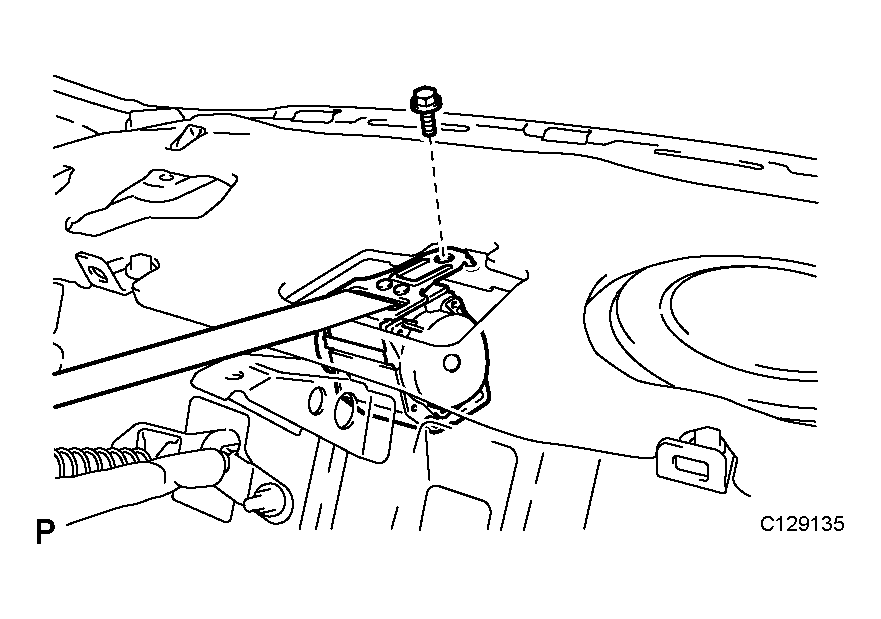

    1. Remove the bolt and remove the rear seat inner w/ center belt assembly LH.
       Fig 7: Removing Rear Seat Inner With Center Belt Assembly LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
