Home >> Toyota >> 2005 >> Avalon XLS >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Rear Suspension System >> Rear Suspension >> Components

Rear Suspension: Components

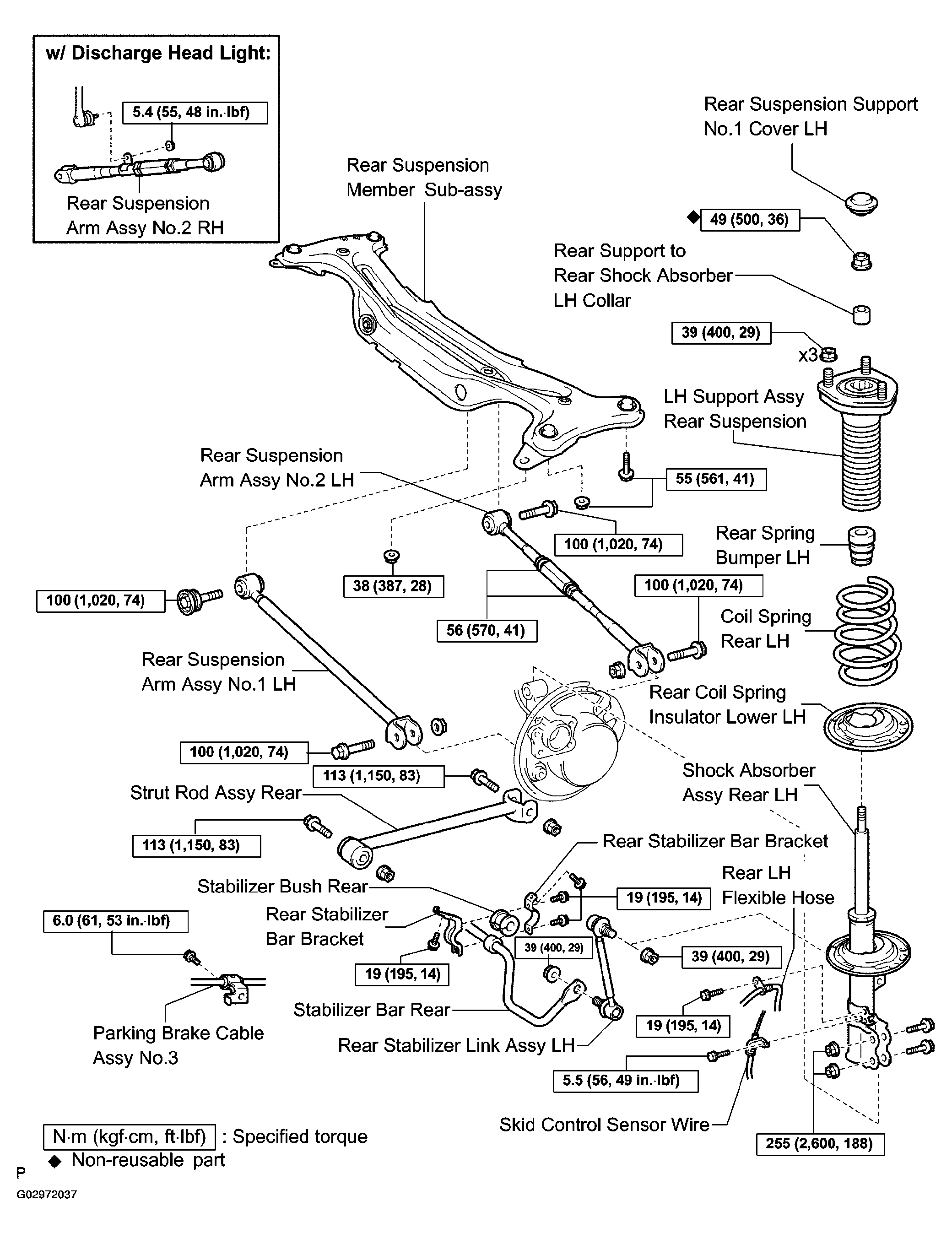

Fig 1: Rear Suspension Components

G02972037

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
