Brake Stroke Simulator Cylinder Sub-Assembly
WARNING:
Read service precautions before proceeding with any service procedure. See SERVICE PRECAUTIONS .

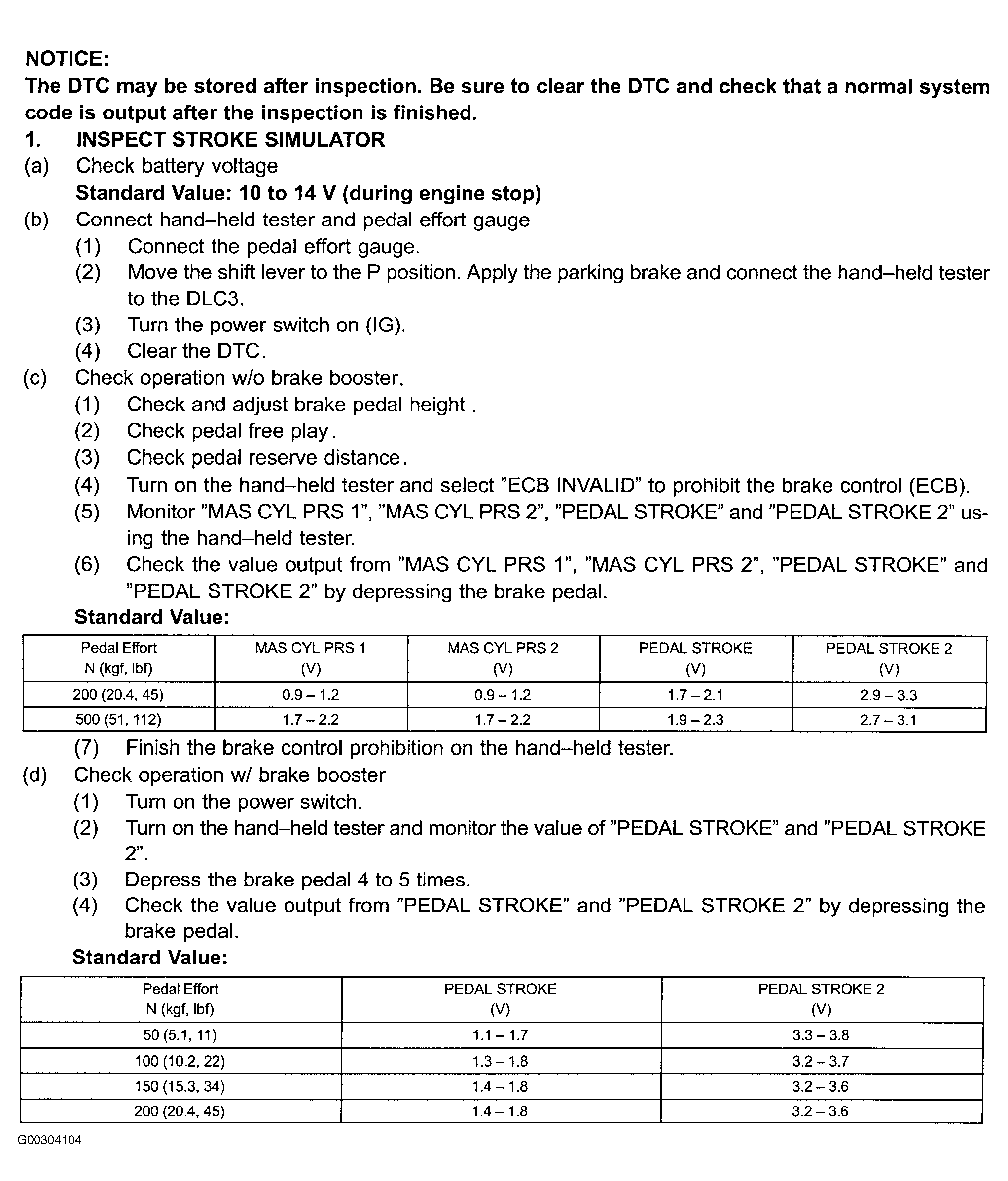

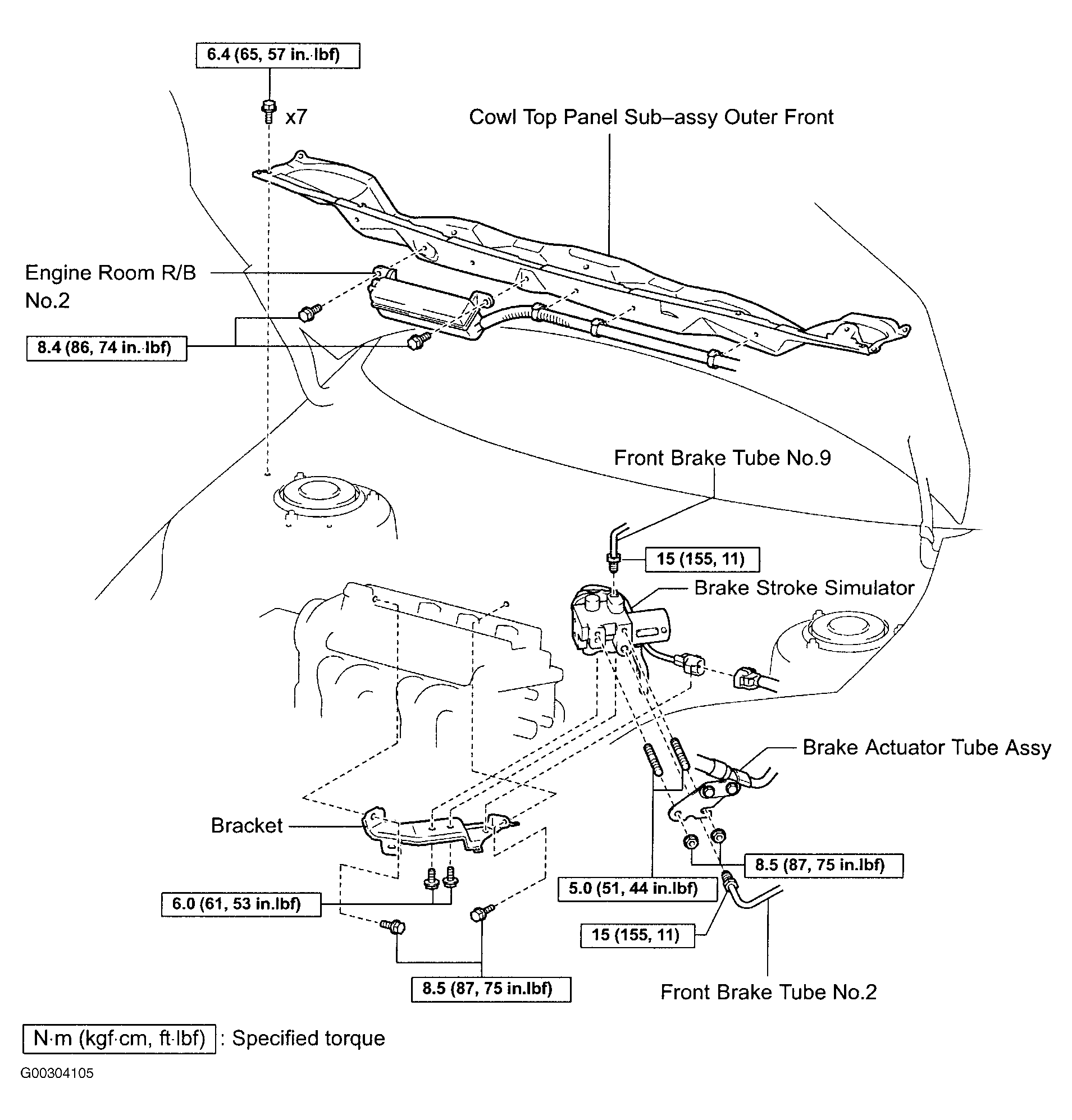

For procedure, see Fig 1. For component view, see Fig 2. For specification, see BRAKE PEDAL HEIGHT SPECIFICATIONS table and see BRAKE PEDAL MINIMUM DEPRESSED HEIGHT table. For calibration and initialization procedure, see ELECTRONICALLY CONTROLLED BRAKE SYSTEM CALIBRATION & INITIALIZATION .
