Electronically Controlled Brake System Calibration & Initialization

For calibration procedure, see Fig 1. For initialization procedure, see Fig 2 and Fig 3 .

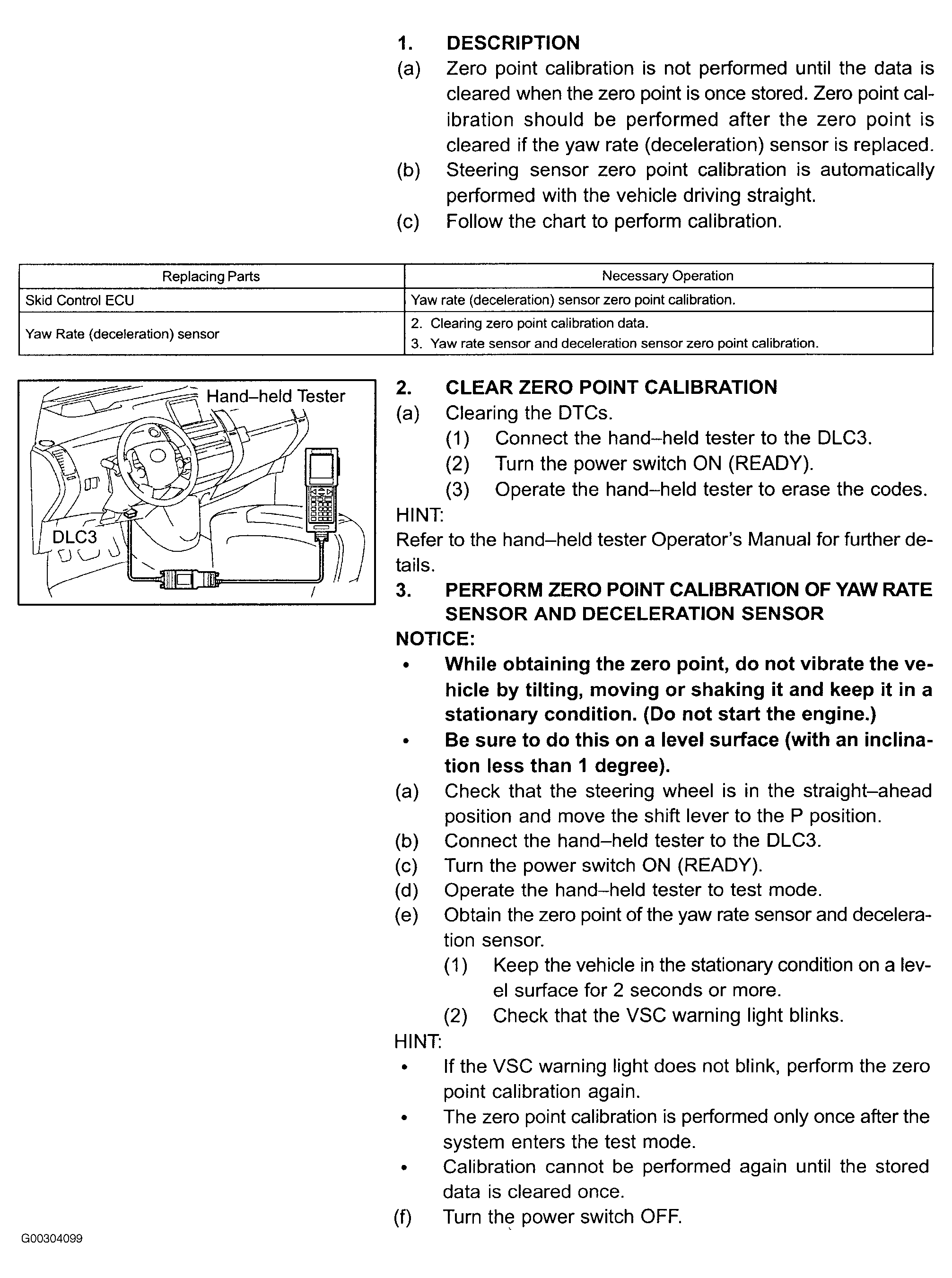

Fig 1: Electronically Controlled Brake System Calibration Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

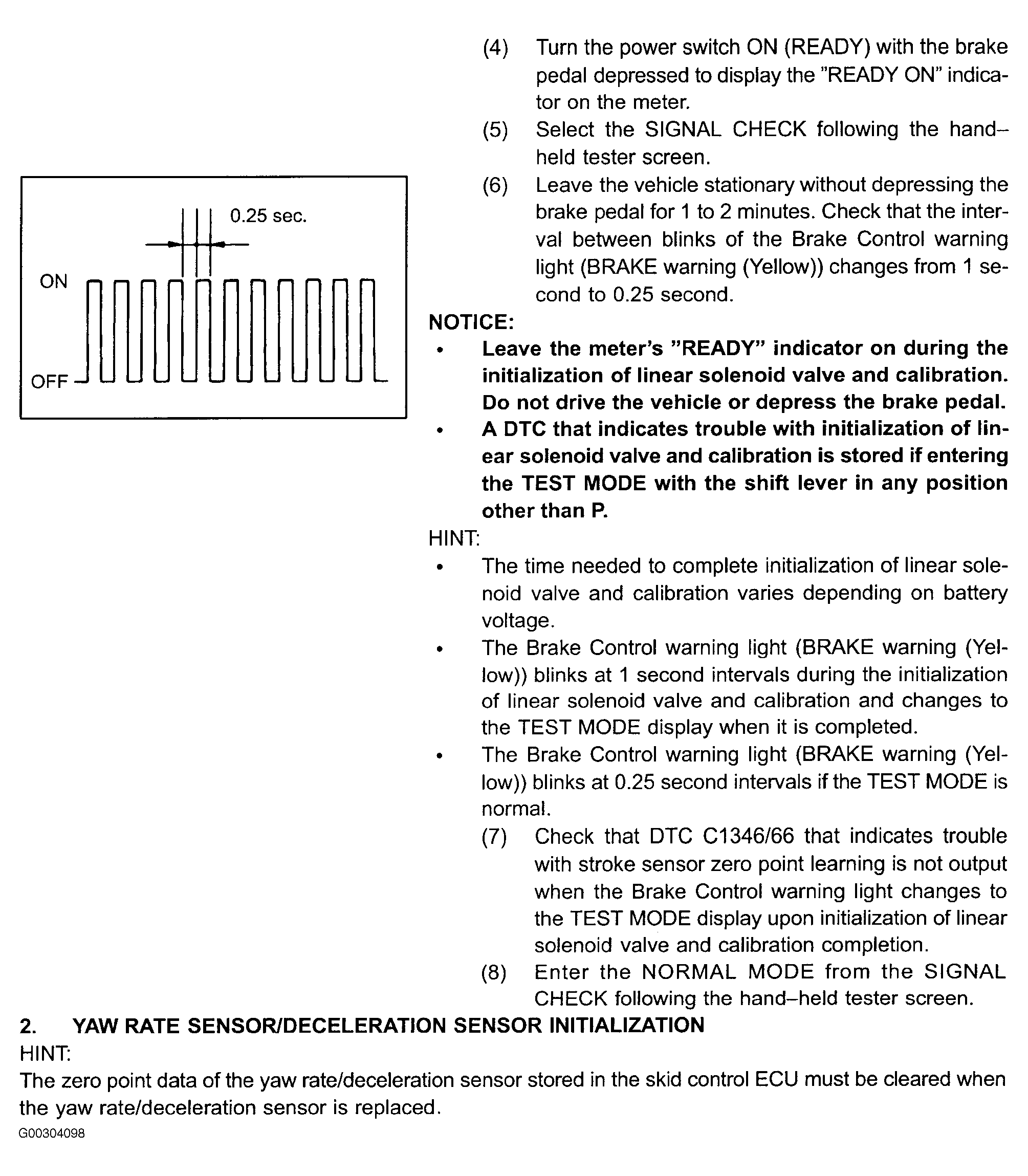

Fig 2: Electronically Controlled Brake System Initialization Procedure (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

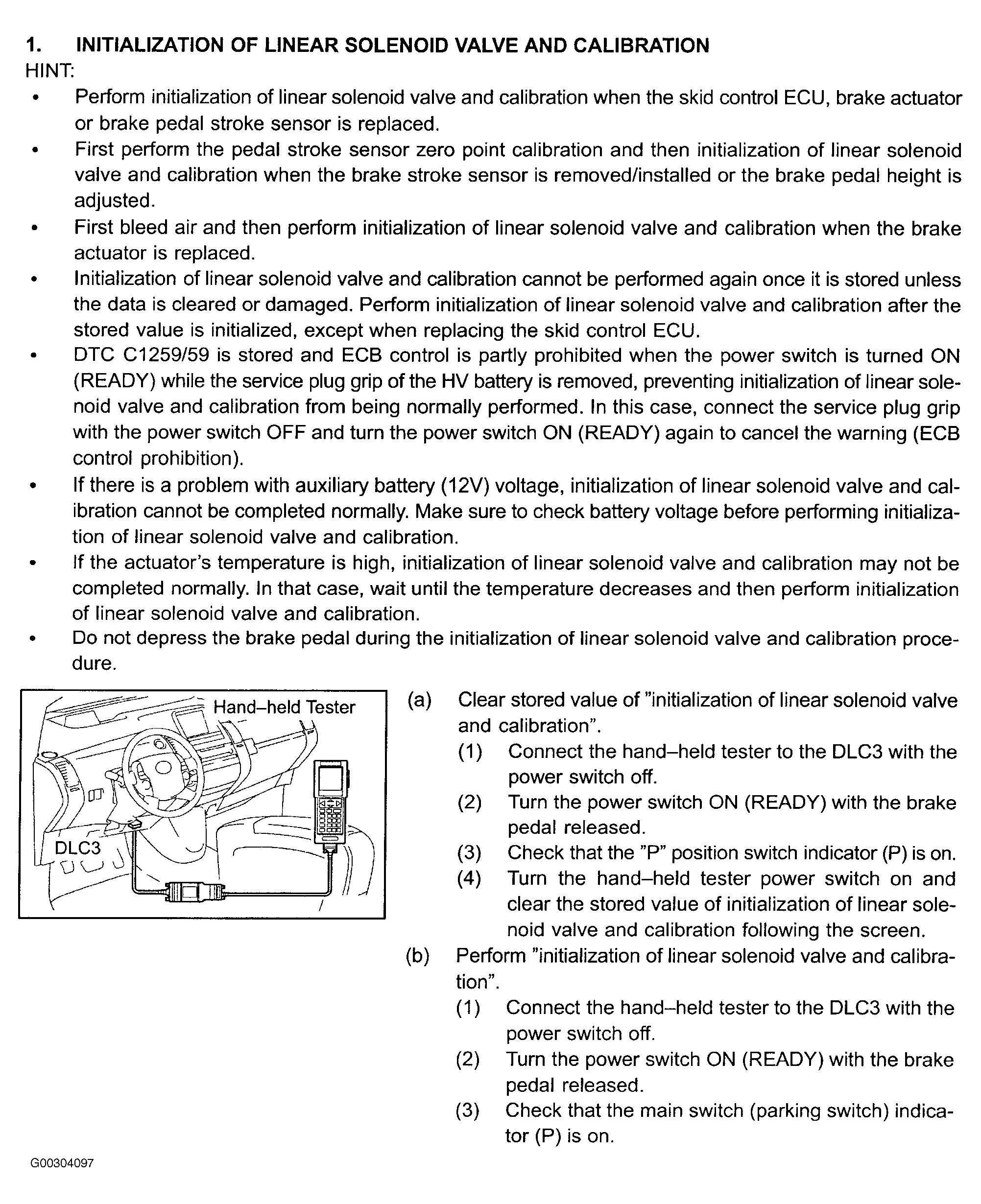

Fig 3: Electronically Controlled Brake System Initialization Procedure (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
